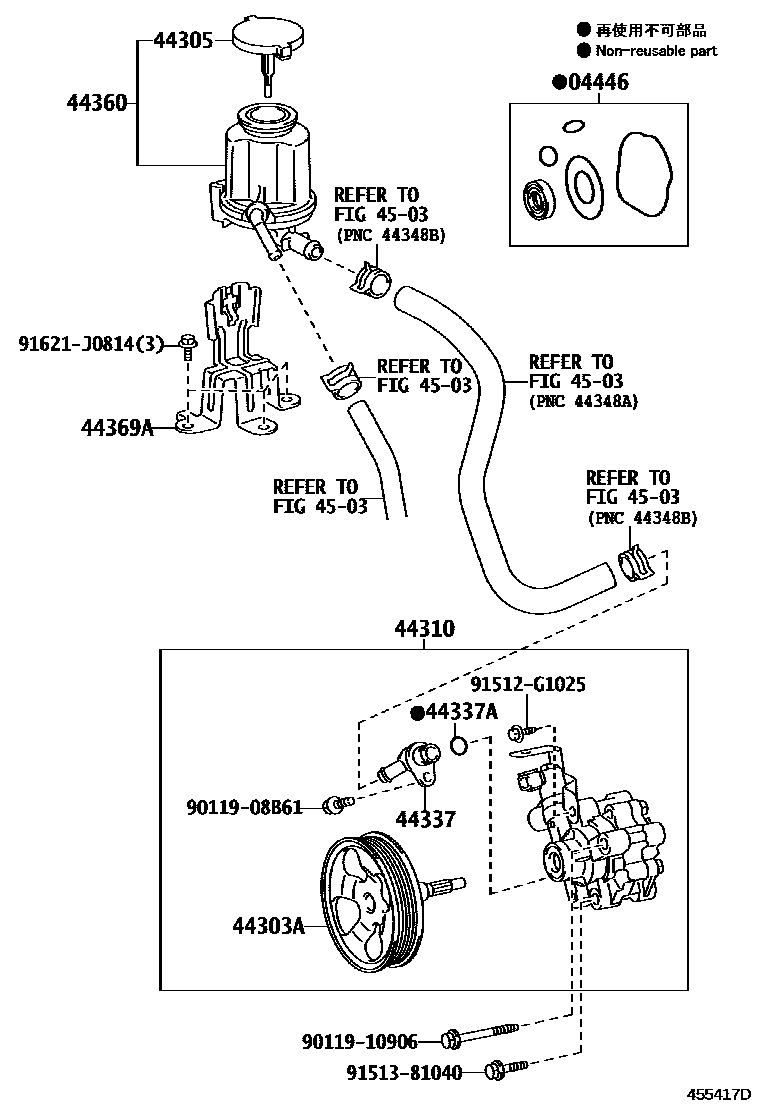

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iGDJ15#201506

main04446-35070iKDJ15#200908-201607

main04446-60260iGRJ150..LHD200908-201506

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-60020iGRJ150..LHD200908-201506

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28060iGRJ150..RHD200908-201207

sub44305-28061

main44305-28061iGDJ15#,GRJ150,KDJ150201208-201607

44310PUMP ASSY, VANE

main44310-60540iGRJ150..RHD200908-201305

sub44310-60541

main44310-60541iGRJ150201306-201506

sub44310-60542

main44310-60550iKDJ15#200908-201305

sub44310-60551

main44310-60551iKDJ150201306-201607

sub44310-60552

main44310-60660iGDJ15#201506

sub44310-60661

44337UNION, POWER STEERING SUCTION PORT

main44337-60230iGRJ150..RHD200908-201506

main44337-60240iKDJ15#200908-201607

main44337-60260iGDJ15#201506

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iGDJ15#,KDJ150200908-201607

main90301-15025iGRJ150..LHD200908-201506

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60320iGRJ150..RHD200908-201207

sub44360-60321

main44360-60321iGRJ150201208-201506

main44360-60330iKDJ15#200908-201207

sub44360-60331

main44360-60331iKDJ15#201208-201607

main44360-60340iGDJ15#201506

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-60080iGRJ150..LHD200908-201506

main44369-60090iKDJ15#200908-201607

main44369-60100iGDJ15#201506

4503

9011908B61

main90119-08B61

9011910906

main90119-10906

91512G1025

main91512-G1025

9151381040

main91513-81040

91621J0814

main91621-J0814

14 parts on this diagram · 3 diagrams in section
