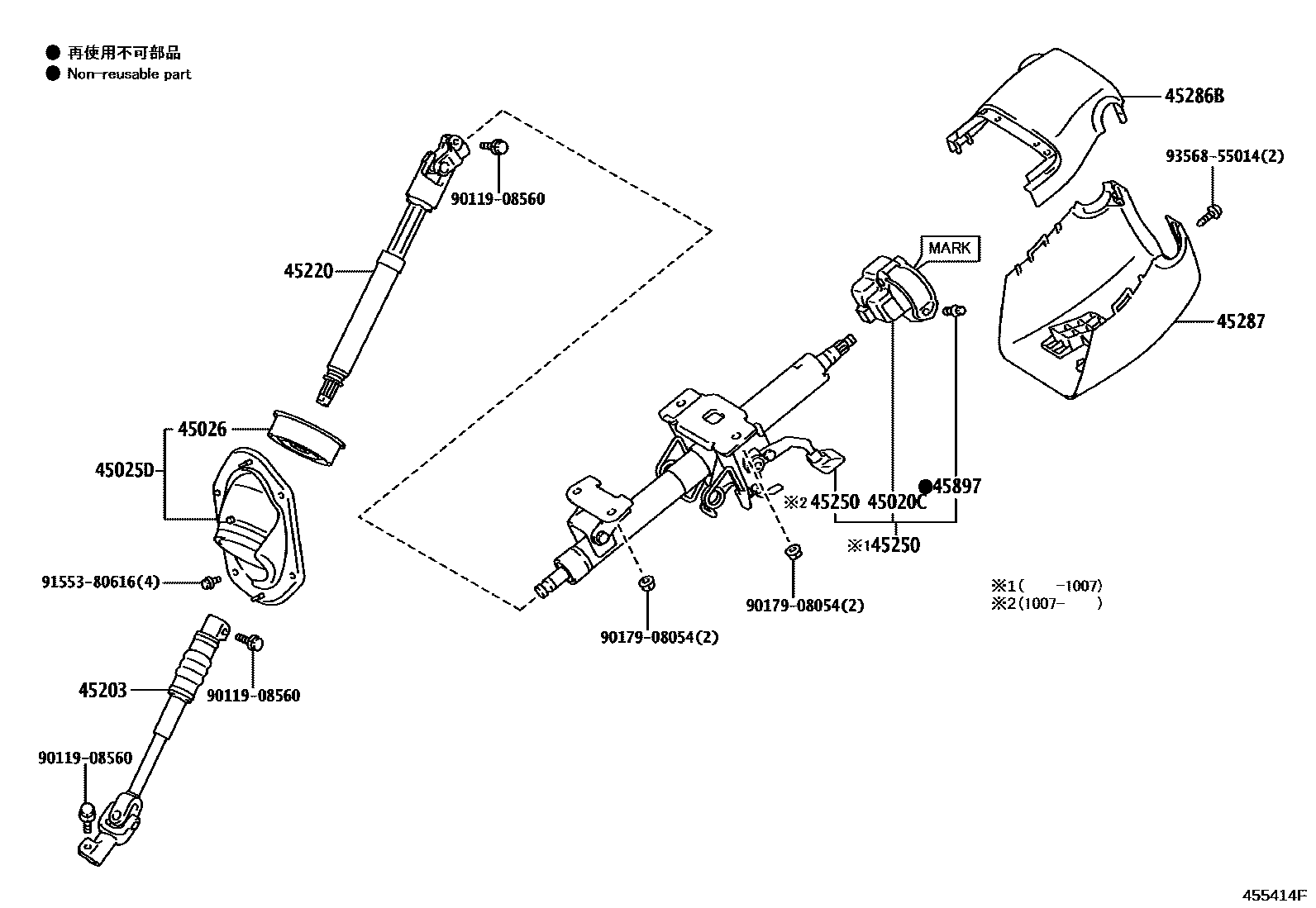

STEERING COLUMN & SHAFT

0001 1MANUAL TILT&TELESCOPIC(W(SMAR0002 1MANUAL TILT&TELESCOPIC(W/O(SM0003 1ELECTRIC TILT & TELESCOPIC 0004 1ELECTRIC TILT & TELESCOPIC

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-60840iGRJ150,KDJ15#201007-201308

MARK H:REFER TO ILL.

main45020-60840iGRJ150,KDJ15#200908-201007

MARK C:REFER TO ILL.

main45020-60840iGRJ150,KDJ15#201308-201708

main45020-60870iKDJ150..RHD201506-201708

VX PACKAGE

main45020-60870iKDJ150..RHD201506-201708

VX-L PACKAGE

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-60200iGRJ150..RHD200908-201212

sub45025-60201

main45025-60201iGDJ15#,KDJ150..RHD201301-201506

main45025-60210iGRJ150,KDJ15#..LHD200908-201212

sub45025-60211

main45025-60211iKDJ155201301-201607

sub45025-60212

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-60040iGRJ150..RHD200908-201212

sub45026-60041

main45026-60041iGDJ15#,GRJ150,KDJ150201301-201607

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-60170iKDJ15#..RHD200908-201401

sub45203-60171

main45203-60171iKDJ15#..RHD201402-201506

main45203-60180iGRJ150,KDJ15#..LHD200908-201311

sub45203-60181

main45203-60181iGDJ15#,GRJ150,KDJ150..LHD201312-201607

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60270iGRJ150..RHD200908-201506

main45220-60280iGRJ150,KDJ15#..LHD200908-201607

45250COLUMN ASSY, STEERING

main45250-60A80iGRJ150,KDJ15#200908-201007

sub45250-60B40

sub45020-68040

sub45897-12020

main45250-60B40iGRJ150,KDJ15#201007-201109

sub45250-60B41

main45250-60B41iGRJ150,KDJ15#201110-201607

main45810-60041iKDJ150..RHD201506

VX PACKAGE

main45810-60041iKDJ150..RHD201506

VX-L PACKAGE

45286BCOVER, STEERING COLUMN, UPR

main45286-60500-C0iGRJ150..RHD200908-201308

BLACK,TRIM1#

sub45286-60500

main45286-60500-C0iGRJ150,KDJ15#201308-201708

BLACK,TRIM2#

sub45286-60500

main45286-60500-E0iGRJ150..RHD200908-201308

DK. BROWN,TRIM0#

sub45286-60500

main45286-60500-E1iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201308-201708

ORCHID BROWN,TRIM0#

sub45286-60500

main45286-60510-C0iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC201506-201708

VX-L PACKAGE,BLACK,TRIM2#

sub45286-60510

main45286-60510-C0iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201506-201708

BLACK,TRIM2#

sub45286-60510

main45286-60510-C0iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201506-201708

VX PACKAGE,BLACK,TRIM2#

sub45286-60510

main45286-60510-E2iKDJ150..RHD201506-201708

VX PACKAGE,ORCHID BROWN,TRIM0#

sub45286-60510

main45286-60510-E2iKDJ150..RHD201506-201708

ORCHID BROWN,TRIM0#

sub45286-60510

main45286-60510-E2iKDJ150..RHD201506-201708

VX-L PACKAGE,ORCHID BROWN,TRIM0#

sub45286-60510

45287COVER, STEERING COLUMN, LWR

main45287-60530-C0iKDJ15#;GRJ150..LHD200908-201308

BLACK,TRIM1#

sub45287-60531

sub45287-60530

main45287-60530-C0iGRJ150,KDJ15#201308-201708

BLACK,TRIM2#

sub45287-60531

sub45287-60530

main45287-60530-E0iKDJ15#;GRJ150..LHD200908-201308

DK. BROWN,TRIM0#

sub45287-60531

sub45287-60530

main45287-60530-E1iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201308-201708

ORCHID BROWN,TRIM0#

sub45287-60531

sub45287-60530

main45287-60550-C0iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201506-201708

BLACK,TRIM2#

sub45287-60550

main45287-60550-C0iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201506-201708

VX PACKAGE,BLACK,TRIM2#

sub45287-60550

main45287-60550-C0iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201506-201708

VX-L PACKAGE,BLACK,TRIM2#

sub45287-60550

main45287-60550-E2iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201506-201708

ORCHID BROWN,TRIM0#

sub45287-60550

main45287-60550-E2iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201506-201708

VX PACKAGE,ORCHID BROWN,TRIM0#

sub45287-60550

main45287-60550-E2iKDJ150..LHD;GDJ15#,GRJ150,KDJ155201506-201708

VX-L PACKAGE,ORCHID BROWN,TRIM0#

sub45287-60550

45897BOLT, STEERING LOCK SET

main45897-12020iKDJ150..LHD;GDJ15#,GRJ150,KDJ155200908-201506

VX-L PACKAGE

main45897-12020iKDJ150..LHD..5FC;GDJ150,GRJ150..6FC200908-201506

VX PACKAGE

9011908560

main90119-08560

9017908054

main90179-08054

9155380616

main91553-80616

9356855014

main93568-55014

13 parts on this diagram · 4 diagrams in section
