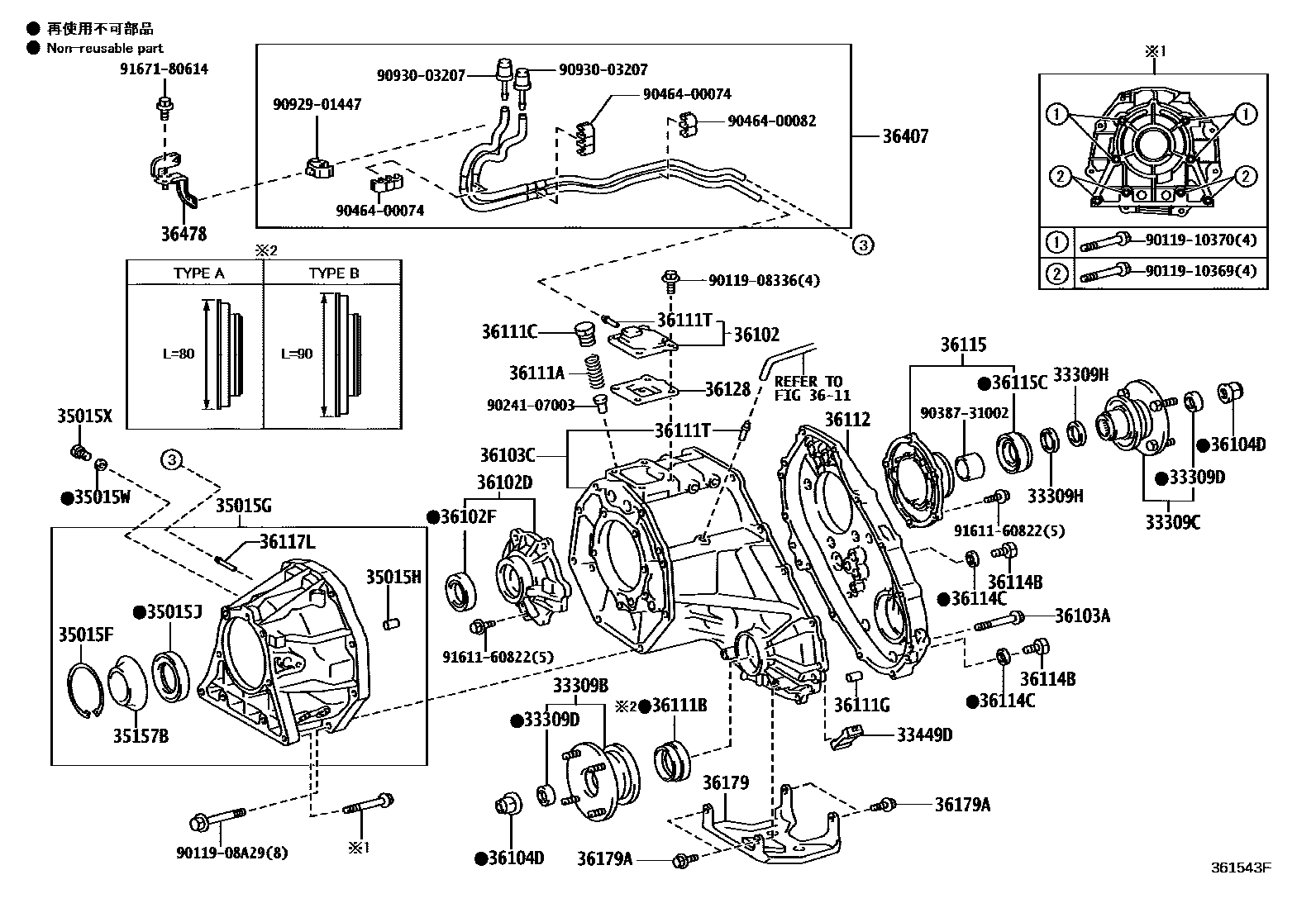

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1FOR EURO 5 CONFORMITY

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35111iGRJ150..RHD200908-201308

sub33309-35112

sub90311-41017

main33309-35111iGRJ150,KDJ15#201308-201411

PNC 36111B=TYPE A

sub33309-35112

sub90311-41017

main33309-35112iGDJ15#,GRJ150,KDJ150201411-201607

PNC 36111B=TYPE B

sub33309-35113

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35120iGRJ150..RHD200908-201607

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iGDJ15#,GRJ150,KDJ150200908-201607

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35030iGDJ15#,GRJ150,KDJ150200908-201607

N=31,OD=38

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iGDJ15#,GRJ150,KDJ150200908-201607

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iGRJ150..RHD200908-201607

35015GADAPTER, TRANSFER, REAR

main35015-35120iGRJ150..RHD200908-201607

main35015-71030iGDJ15#,GRJ150..6FC201506

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003iGRJ150..RHD200908-201607

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-43007iGRJ150..RHD200908-201607

35015WRING, O(FOR TRANSMISSION CASE ADAPTER REFILL PLUG)

main90301-15004iGRJ150,KDJ15#..5FC200908-201506

35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRJ150,KDJ15#..5FC200908-201506

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-60010iGRJ150,KDJ15#..5FC200908-201607

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iKDJ155200908-201607

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iKDJ155..5FC200908-201607

main36102-35080iGDJ15#,KDJ150..6F200908-201607

36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)

main90311-43008iKDJ15#;GRJ150..LHD200908-201607

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iGRJ150..RHD200908-201607

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-35070iGRJ150..RHD200908-201607

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iGRJ150..RHD200908-201607

3611

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iKDJ155200908-201607

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41013iGRJ150,KDJ15#201308-201411

TYPE A:REFER ILLUST.

main90311-41013iKDJ15#;GRJ150..LHD200908-201308

main90311-41017iGRJ150,KDJ15#201411-201607

TYPE B:REFER ILLUST.

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iKDJ15#;GRJ150..LHD200908-201607

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iGRJ150,KDJ15#200908-201607

L=14,OD=10

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iKDJ155200908-201607

sub90406-T0007

36112CASE, TRANSFER, REAR

main36112-35090iKDJ155200908-201607

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iKDJ155200908-201607

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iKDJ155200908-201607

36115HOUSING, TRANSFER EXTENSION

main36105-35050iKDJ15#;GRJ150..LHD200908-201607

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iGDJ15#,GRJ150,KDJ150200908-201607

sub90311-41020

36117ADAPTER, TRANSFER

main33102-60130iGDJ15#,KDJ150..6F200908-201607

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iGRJ150,KDJ15#200908-201708

sub90406-T0007

36128DEFLECTOR, BREATHER OIL

main36128-35060iKDJ155200908-201607

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60030iGRJ150,KDJ15#200908-201607

36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)

main91611-G0820iKDJ15#;GRJ150..LHD200908-201607

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60230iGRJ150200908-201506

main36407-60240iKDJ15#..6F200908-201506

main36407-60250iKDJ15#..5FC200908-201607

main36407-60300iKDJ15#..LHD..6F201308-201506

*242

main36407-60300iKDJ15#..LHD..6F201308-201506

HUNGARY,SLOVAKIA,POLAND SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

MONACO,GIBRALTAR,CANARY ISLANDS SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

SWEDEN,FINLAND,NORWAY,DENMARK SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

PORTUGAL SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

GREECE SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

ICELAND SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

CZECHOSLOVAKIA SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

GERMANY SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

RUMANIA SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

BULGARIA SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

ESTONIA,LATVIA,LITHUANIA SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

SLOVENIA SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

AZORES,MACEDONIA SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

TURKEY SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

ISRAEL SPEC

main36407-60300iKDJ15#..LHD..6F201308-201506

REUNION,GUIANAN,GUADELOUPE,MARTINIQUE

main36407-60320iGRJ150201506

main36407-60340iGDJ15#..6FC201506

main36407-60350iKDJ155..6F201506-201607

36478BRACKET, TRANSFER BREATHER

main36478-60060iGRJ150200908-201506

main36478-60070iKDJ155..6F200908-201607

main36478-60080iKDJ15#..5FC200908-201607

main36478-60130iGRJ150201506

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910369

main90119-10369

9011910370

main90119-10370

9024107003

main90241-07003

9038731002

main90387-31002

9046400074

main90464-00074

9046400082

main90464-00082

9092901447

main90929-01447

9093003207

main90930-03207

9161160822

main91611-60822

9167180614

main91671-80614

48 parts on this diagram · 7 diagrams in section
