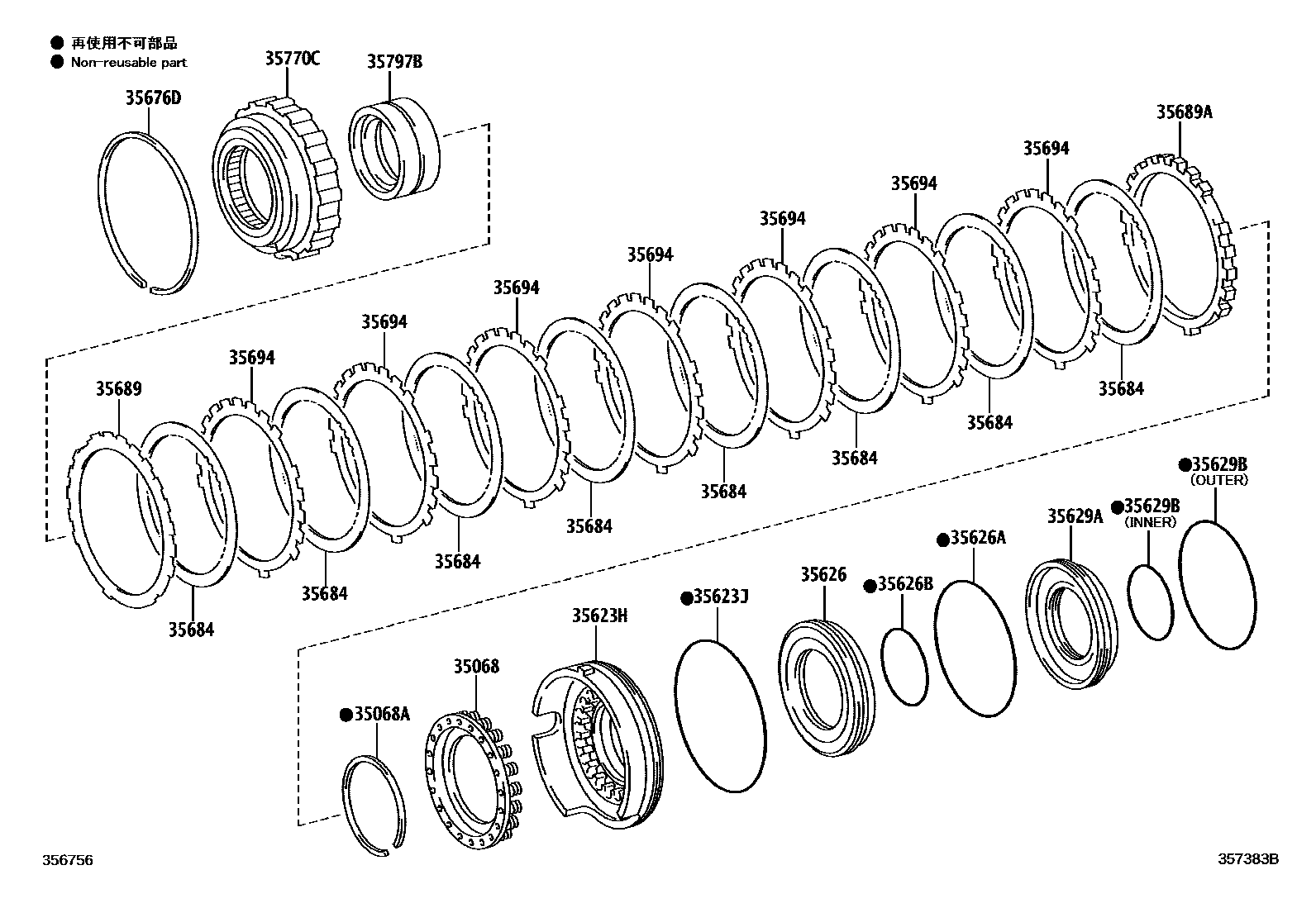

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35623HPISTON, 1ST & REVERSE BRAKE
35623JRING, O (FOR 1ST & REVERSE BRAKE)
35626SLEEVE, BRAKE REACTION
35626ARING (FOR BRAKE REACTION SLEEVE OUTER)
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
35629APISTON, BRAKE, NO.4
35629BRING, O (FOR BRAKE PISTON NO.4)
INNER
OUTER
OUTER
35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)
35684DISC, BRAKE, NO.4
35689FLANGE, BRAKE, NO.4
T=1.8,MARK 0
T=2.0,MARK 2
T=2.2,MARK 4
T=2.4,MARK 6
T=2.6,MARK 8
T=2.8,MARK 10
T=3.0,MARK 12
T=3.2,MARK 14
T=1.8,MARK 0
T=1.97,MARK 1
T=2.11,MARK 3
T=2.25,MARK 4
T=2.39,MARK 5
T=2.53,MARK 7
T=2.67,MARK 8
T=2.81,MARK10
T=2.95,MARK 11
T=3.09,MARK 12
T=3.23,MARK 14
35689AFLANGE, BRAKE, NO.4
35694PLATE, BRAKE, NO.4
35770CCLUTCH ASSY, 1WAY NO.3
35797BRACE, 1 WAY CLUTCH, INNER
16 parts on this diagram · 2 diagrams in section
