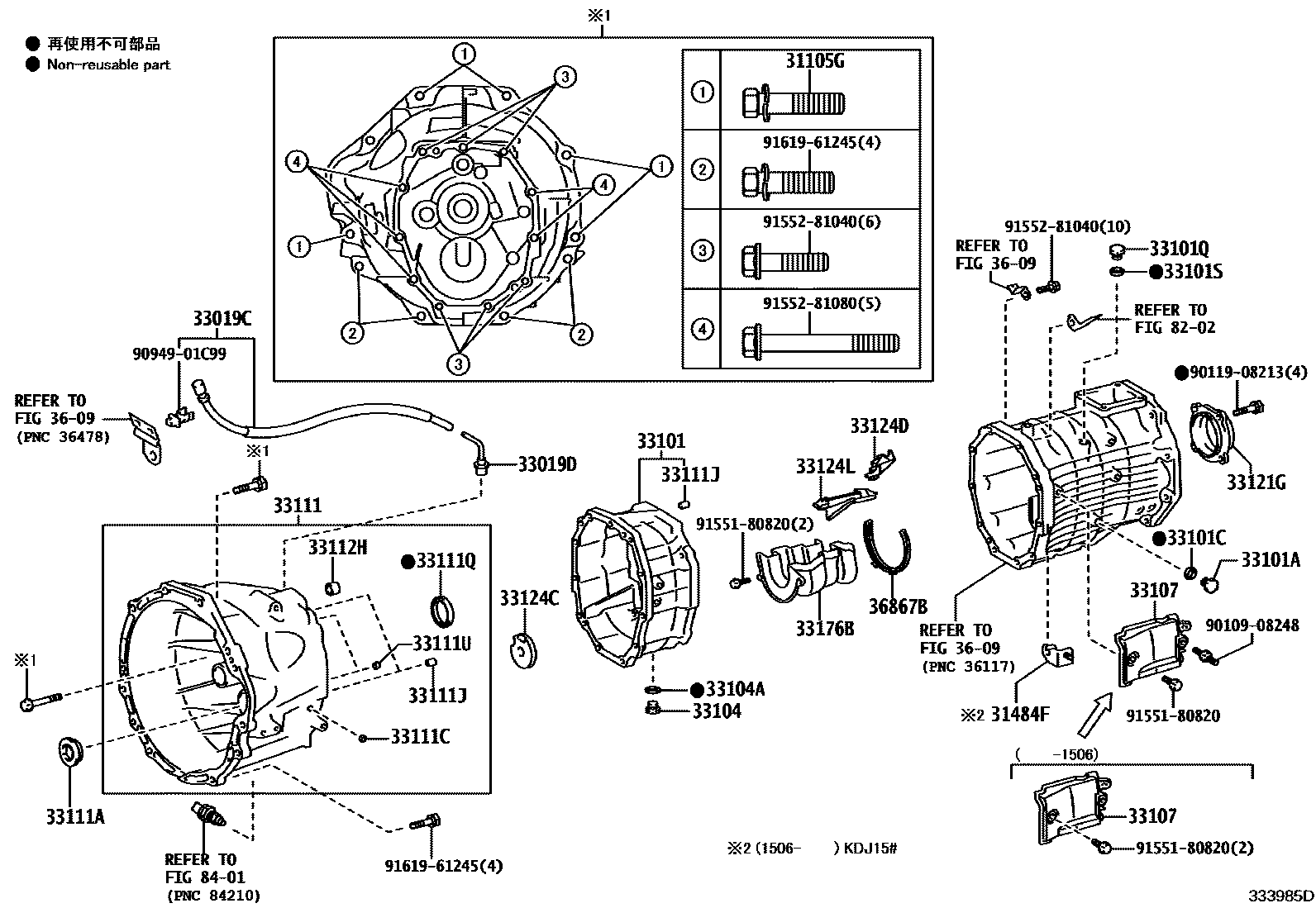

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX50-30
31484FBRACKET, CLUTCH TUBE
33019CBREATHER SUB-ASSY, TRANSMISSION
33019D2 WAY(FOR TRANSMISSION BREATHER HOSE)
33101CASE SUB-ASSY, MANUAL TRANSMISSION
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101QPLUG, NO.1(FOR TRANSMISSION CASE)
33101SGASKET(FOR TRANSMISSION CASE PLUG NO.1)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33107COVER SUB-ASSY, TRANSMISSION, UPPER
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
OD=10
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=15,OD=8
33111QSEAL, OIL(FOR TRANSMISSION CASE)
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=8,OD=11
33112HBEARING, TRANSMISSION CASE NEEDLE
33121GCOVER, MANUAL TRANSMISSION CASE
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124LPIPE, OIL RECEIVER, N0.3(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
3609
36867BSEAL, PACKING (FOR OIL SEPARATOR)
8202
8401
9010908248
main90109-08248
9011908213
main90119-08213
9094901C99
main90949-01C99
9155180820
main91551-80820
9155281040
main91552-81040
9155281080
main91552-81080
9161961245
main91619-61245
35 parts on this diagram · 1 diagram in section
