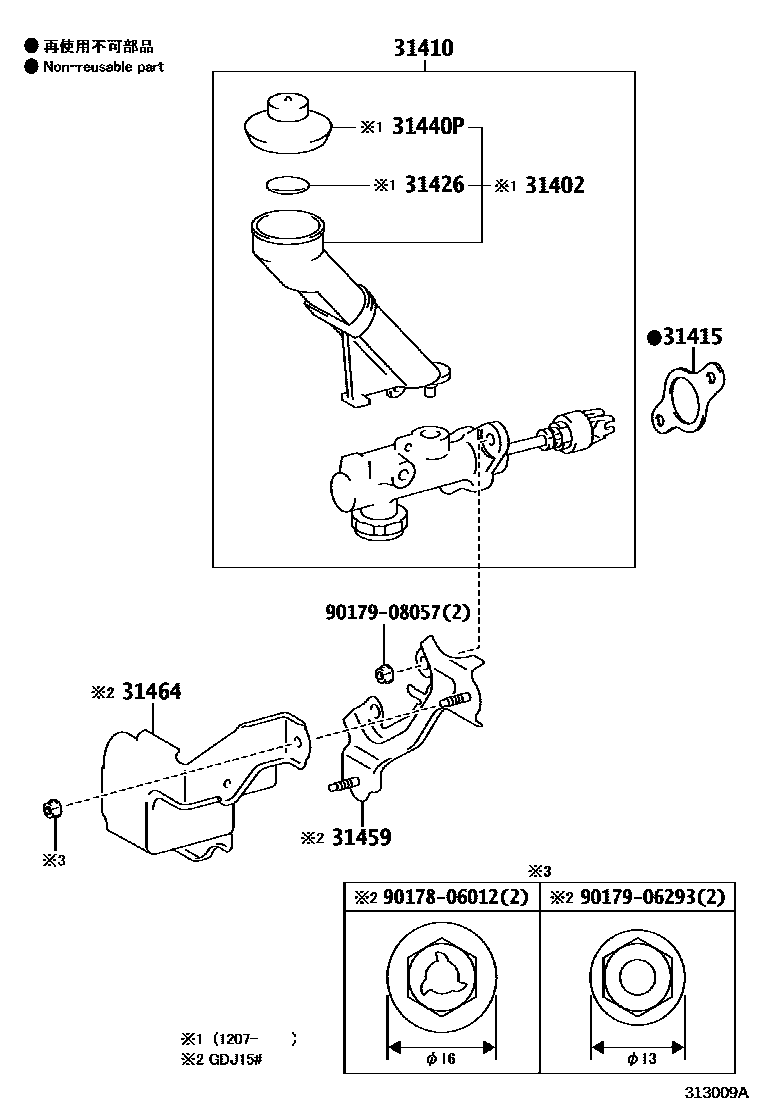

CLUTCH MASTER CYLINDER

0001 1 0002 1

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20160iKDJ15#..LHD..6F200908-201607

main31402-20180iGDJ15#..RHD..6F201207-201506

31410CYLINDER ASSY, CLUTCH MASTER

main31410-60640iKDJ15#..RHD..6F200908-201708

main31420-35070iKDJ15#..LHD..6F200908-201708

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iGDJ15#..RHD..6F200908-201506

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iKDJ155..6F200908-201607

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iKDJ15#..LHD..6F200908-201607

main47230-20040iKDJ15#..RHD..6F201207-201506

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-60080iGDJ15#..RHD..6F201506

31464INSULATOR, CLUTCH MASTER CYLINDER HEAT

main31464-60050iGDJ15#..RHD..6F201506

9017806012

main90178-06012

9017906293

main90179-06293

9017908057

main90179-08057

10 parts on this diagram · 2 diagrams in section
