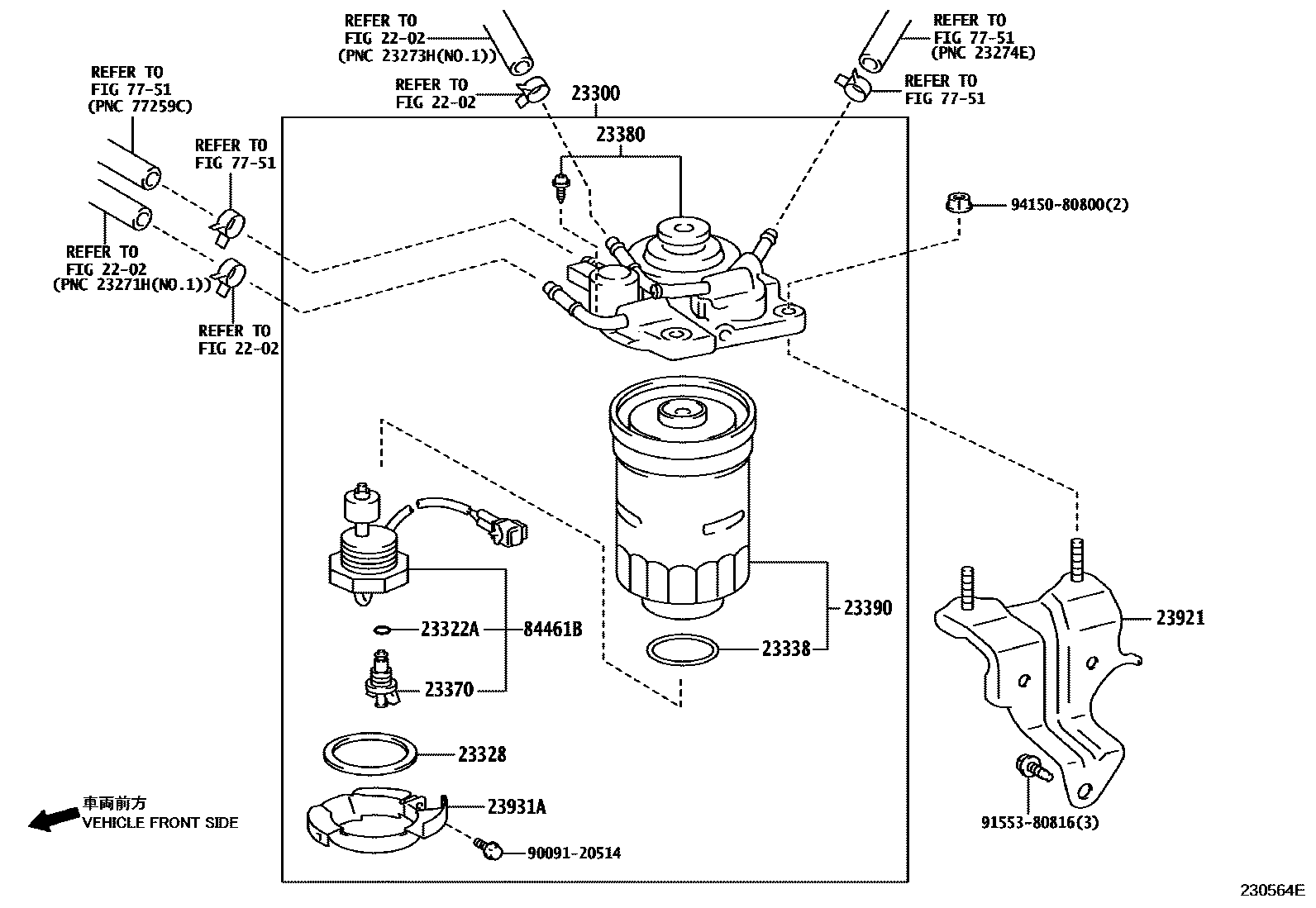

FUEL FILTER

0001 1 0002 1PRESSUERIZE FUEL FILTER 0003 1

2202

23300FILTER ASSY, FUEL

main23300-30340i1GDFTV..GDJ15#201506-201708

sub23300-30341

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1KDFTV..KDJ15#200908-201607

23328GASKET(FOR FUEL FILTER)

main23385-30160i1KDFTV..KDJ15#200908-201607

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1KDFTV..KDJ155200908-201607

23370COCK ASSY, FUEL FILTER DRAIN

main23370-30010i1KDFTV..KDJ15#200908-201607

23380CAP ASSY, FUEL FILTER

main23380-30301i1KDFTV..KDJ155201506-201607

main23380-30340i1GDFTV..GDJ15#201506

main23380-30350i1KDFTV..KDJ15#200908-201506

23390ELEMENT ASSY, FUEL FILTER

main23390-30090i1KDFTV..KDJ15#200908-201301

MARK 23390-30090

main23390-30090i1KDFTV..KDJ15#201301-201506

main23390-30340i1GDFTV..GDJ15#201506

sub23390-30341

main23390-30350i1KDFTV..KDJ15#200912-201209

MARK 23390-30350

main23390-36760i1KDFTV..KDJ155201506-201607

23921SUPPORT, FUEL FILTER

main23921-30070i1GDFTV..GDJ15#200908-201607

23931ACOVER, FUEL FILTER

main23931-26010i1KDFTV..KDJ15#200908-201209

sub23931-26031

main23931-26031i1KDFTV..KDJ15#201209-201607

7751

84461BSWITCH, LEVEL WARNING

main84461-28040iKDJ15#200908-200909

sub84461-28041

main84461-60100iKDJ15#200909-201202

sub84461-60101

main84461-60101iKDJ15#201203-201607

sub84461-60102

9009120514

main90091-20514

9155380816

main91553-80816

9415080800

main94150-80800

15 parts on this diagram · 3 diagrams in section
