MANIFOLD AIR INJECTION SYSTEM

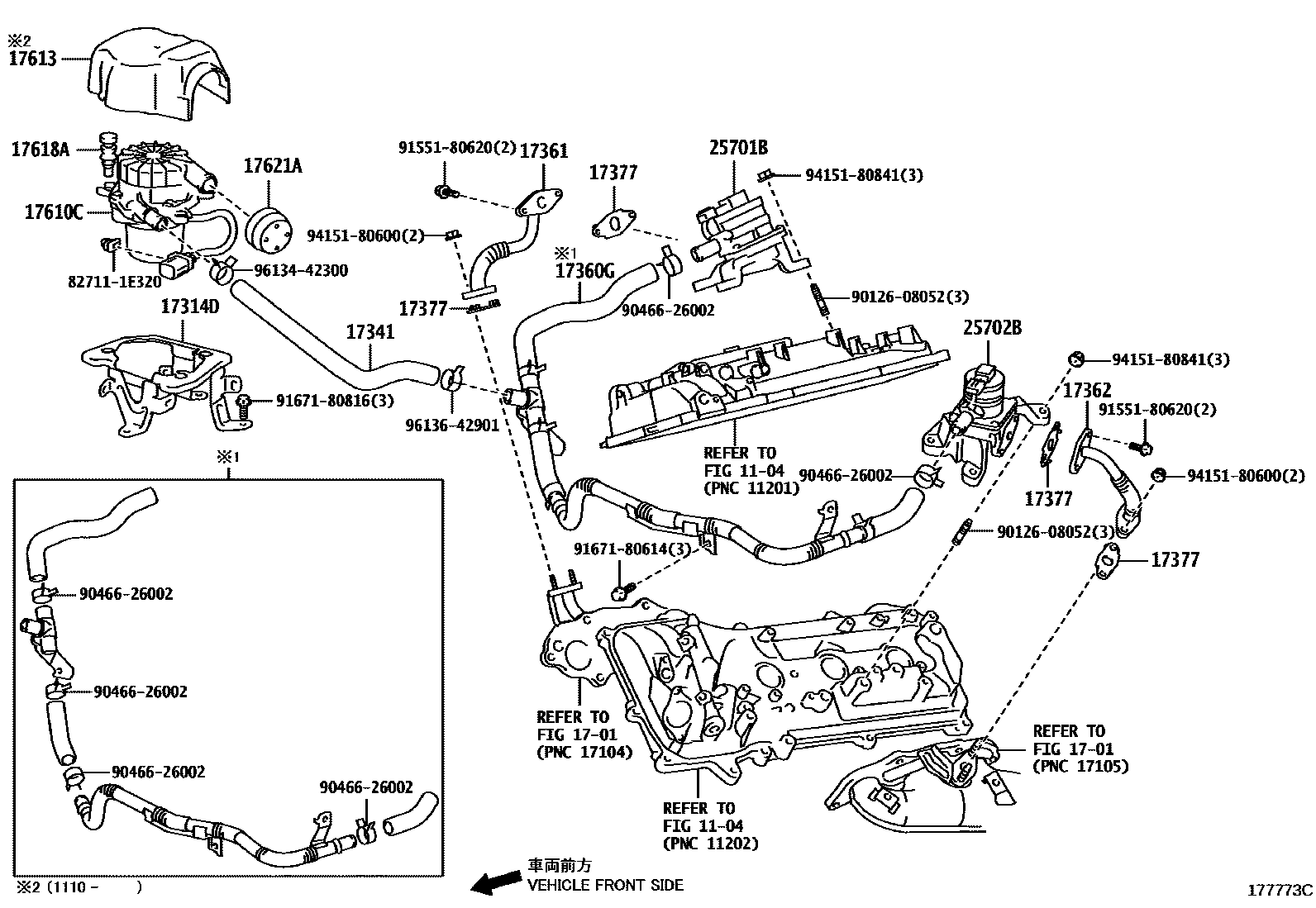

Parts diagram
1104
1701
17314DBRACKET, AIR PUMP, NO.1
main17314-0W030i200908-201110
sub17314-0W031
main17314-0W030i200908-201204
CHINESE TAIPEI SPEC
sub17314-0W031
main17314-0W030i200908-201204
ENGINE-FOR EURO 4 CONFORMITY
sub17314-0W031
main17314-0W030i200908-201204
ENGINE-FOR EURO 3-1 CONFORMITY
sub17314-0W031
main17314-0W031i201205-201308
CHINESE TAIPEI SPEC
main17314-0W031i201205-201308
ENGINE-FOR EURO 4 CONFORMITY
main17314-0W031i201205-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17314-0W031i201308-201506
main17314-0W031i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
main17341-31080i200908-201506
main17341-31080i200908-201308
CHINESE TAIPEI SPEC
main17341-31080i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main17341-31080i200908-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17341-31080i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
17360GTUBE ASSY, AIR
main17360-31010i200908-201506
main17360-31010i200908-201308
CHINESE TAIPEI SPEC
main17360-31010i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main17360-31010i200908-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17360-31010i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
17361TUBE, AIR
main17361-31030i200908-201506
main17361-31030i200908-201308
CHINESE TAIPEI SPEC
main17361-31030i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main17361-31030i200908-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17361-31030i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
17362TUBE, AIR, NO.2
main17362-31020i200908-201506
main17362-31020i200908-201308
CHINESE TAIPEI SPEC
main17362-31020i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main17362-31020i200908-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17362-31020i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
17377GASKET, AIR TUBE, NO.2
main17377-38010i200908-201506
main17377-38010i200908-201308
CHINESE TAIPEI SPEC
main17377-38010i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main17377-38010i200908-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17377-38010i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
17610CPUMP ASSY, AIR
main17610-0C030i200908-201506
main17610-0C030i200908-201308
CHINESE TAIPEI SPEC
main17610-0C030i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main17610-0C030i200908-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17610-0C030i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
17613COVER, AIR PUMP
main17613-31010i201110-201308
CHINESE TAIPEI SPEC
main17613-31010i201110-201308
ENGINE-FOR EURO 4 CONFORMITY
main17613-31010i201110-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17613-31010i201308-201506
main17613-31010i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
17618AINSULATOR, AIR PUMP
main17618-0C010i200908-201506
main17618-0C010i200908-201308
CHINESE TAIPEI SPEC
main17618-0C010i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main17618-0C010i200908-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17618-0C010i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
17621AINLET, AIR PUMP
main17621-0C010i200908-201506
main17621-0C010i200908-201308
CHINESE TAIPEI SPEC
main17621-0C010i200908-201308
ENGINE-FOR EURO 4 CONFORMITY
main17621-0C010i200908-201308
ENGINE-FOR EURO 3-1 CONFORMITY
main17621-0C010i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
25701BVALVE SET, EMISSION CONTROL, NO.1
main25701-31010i200908-201104
CHINESE TAIPEI SPEC
sub25701-31011
main25701-31010i200908-201104
ENGINE-FOR EURO 4 CONFORMITY
sub25701-31011
main25701-31010i200908-201104
ENGINE-FOR EURO 3-1 CONFORMITY
sub25701-31011
main25701-31011i201105-201110
sub25701-31012
main25701-31011i201105-201206
CHINESE TAIPEI SPEC
sub25701-31012
main25701-31011i201105-201206
ENGINE-FOR EURO 4 CONFORMITY
sub25701-31012
main25701-31011i201105-201206
ENGINE-FOR EURO 3-1 CONFORMITY
sub25701-31012
main25701-31012i201207-201302
CHINESE TAIPEI SPEC
sub25701-31013
main25701-31012i201207-201302
ENGINE-FOR EURO 4 CONFORMITY
sub25701-31013
main25701-31012i201207-201302
ENGINE-FOR EURO 3-1 CONFORMITY
sub25701-31013
main25701-31013i201303-201308
CHINESE TAIPEI SPEC
sub25701-31014
main25701-31013i201303-201308
ENGINE-FOR EURO 4 CONFORMITY
sub25701-31014
main25701-31013i201303-201308
ENGINE-FOR EURO 3-1 CONFORMITY
sub25701-31014
main25701-31013i201308-201406
sub25701-31014
main25701-31014i201407-201506
main25701-31014i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
25702BVALVE SET, EMISSION CONTROL, NO.2
main25702-31010i200908-201104
CHINESE TAIPEI SPEC
sub25702-31011
main25702-31010i200908-201104
ENGINE-FOR EURO 4 CONFORMITY
sub25702-31011
main25702-31010i200908-201104
ENGINE-FOR EURO 3-1 CONFORMITY
sub25702-31011
main25702-31011i201105-201110
sub25702-31012
main25702-31011i201105-201206
CHINESE TAIPEI SPEC
sub25702-31012
main25702-31011i201105-201206
ENGINE-FOR EURO 4 CONFORMITY
sub25702-31012
main25702-31011i201105-201206
ENGINE-FOR EURO 3-1 CONFORMITY
sub25702-31012
main25702-31012i201207-201302
CHINESE TAIPEI SPEC
sub25702-31013
main25702-31012i201207-201302
ENGINE-FOR EURO 4 CONFORMITY
sub25702-31013
main25702-31012i201207-201302
ENGINE-FOR EURO 3-1 CONFORMITY
sub25702-31013
main25702-31013i201303-201308
CHINESE TAIPEI SPEC
sub25702-31014
main25702-31013i201303-201308
ENGINE-FOR EURO 4 CONFORMITY
sub25702-31014
main25702-31013i201303-201308
ENGINE-FOR EURO 3-1 CONFORMITY
sub25702-31014
main25702-31013i201308-201406
sub25702-31014
main25702-31014i201407-201506
main25702-31014i201506
GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
9012608052
main90126-08052
9046626002
main90466-26002
9155180620
main91551-80620
9167180614
main91671-80614
9167180816
main91671-80816
9415180600
main94151-80600
9415180841
main94151-80841
9613442300
main96134-42300
9613642901
main96136-42901

24 parts on this diagram · 1 diagram in section
