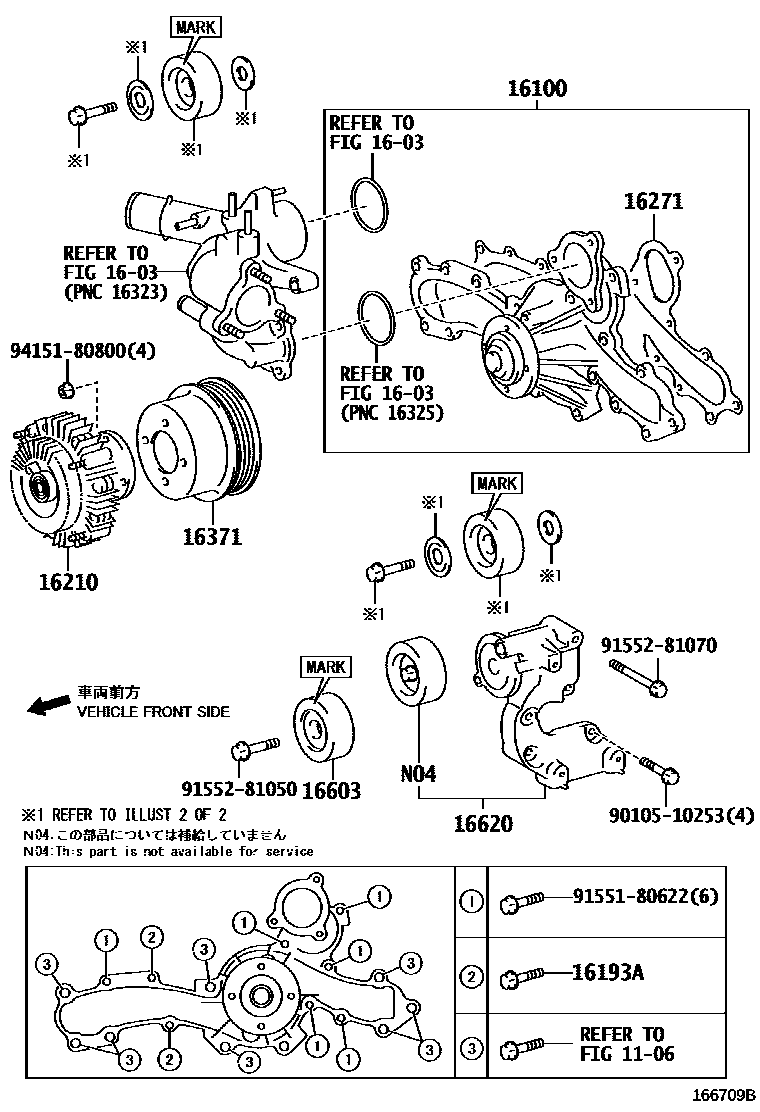

WATER PUMP

0001 1 0002 1 0003 1 0004 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-19365i1GDFTV..GDJ15#201506

main16100-39545i1GRFE..GRJ150200908-201506

main16100-69356i1KDFTV..KDJ15#200908-201407

sub16100-69357

main16100-69357i1KDFTV..KDJ150201407-201607

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i1GRFE..GRJ150..RHD200908-201506

16210COUPLING ASSY, FLUID

main16210-11030i1GDFTV..GDJ15#201506

main16210-30010i1KDFTV..KDJ15#200908-201508

sub16210-30011

main16210-30011i1KDFTV..KDJ155201509-201607

main16210-31030i1GRFE..GRJ150200908-201003

sub16210-31040

main16210-31040i1GRFE..GRJ150201003-201506

16271GASKET, WATER PUMP

main16271-11010i1GDFTV..GDJ15#201506

main16271-31040i1GRFE..GRJ150..RHD200908-201506

main16271-67020i1KDFTV..KDJ155200908-201607

16371PULLEY, FAN

main16371-11010i1GDFTV..GDJ15#201506

main16371-30020i1KDFTV..KDJ155200908-201607

main16371-31040i1GRFE..GRJ150..RHD200908-201506

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31040i1GDFTV..GDJ15#201506

main16603-31050i1GRFE..GRJ150..RHD200908-201506

16620TENSIONER ASSY, V-RIBBED BELT

main16620-11010i1GDFTV..GDJ15#201506

main16620-31050i1GRFE..GRJ150200908-201002

sub16620-31051

main16620-31051i1GRFE..GRJ150..RHD201002-201506

9010510253

main90105-10253

9155180622

main91551-80622

9155281050

main91552-81050

9155281070

main91552-81070

9415180800

main94151-80800

14 parts on this diagram · 4 diagrams in section
