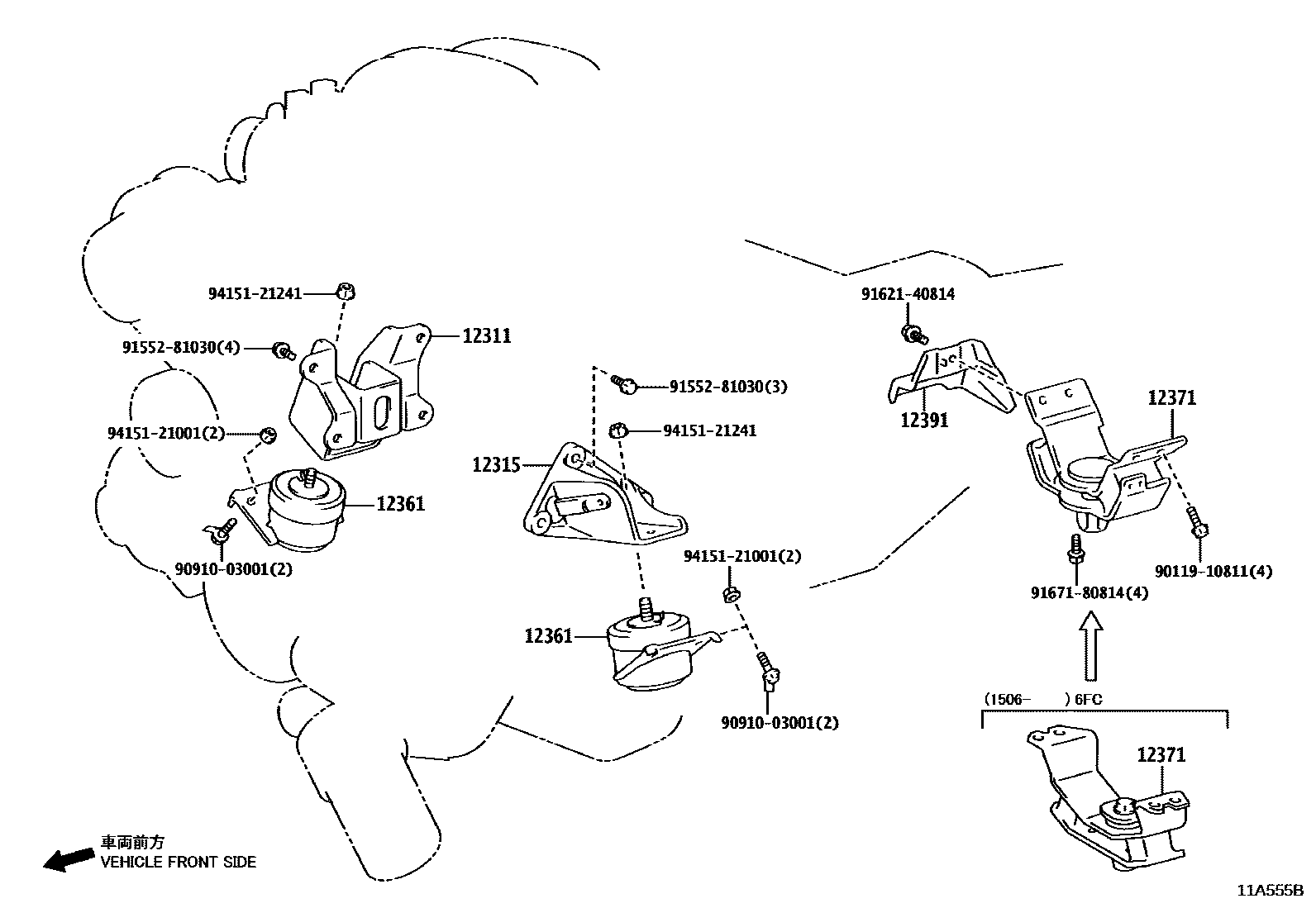

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30061i1GDFTV..GDJ15#200908-201607

main12311-31021i1GRFE..GRJ150..RHD200908-201506

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-30061i1KDFTV..KDJ15#200908-201607

main12315-31051i1GRFE..GRJ150..RHD200908-201506

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-30120i1KDFTV..KDJ15#200908-201009

sub12361-30140

main12361-30140i1KDFTV..KDJ15#201010-201011

sub12361-30141

main12361-30141i1KDFTV..KDJ15#201011-201703

sub12361-30142

main12361-30142i1KDFTV..KDJ150201704-201708

sub12361-30143

main12361-31290i1GRFE..GRJ150..RHD200908-201708

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-11620i1GDFTV..GDJ15#..6FC201506

main12371-11630i1GDFTV..GDJ15#..6F201506

main12371-30080i1KDFTV..KDJ15#..6F200908-201607

main12371-30090i1KDFTV..KDJ15#..5FC200908-201607

main12371-31050i1GRFE..GRJ150..RHD200908-201111

sub12371-31051

main12371-31051i1GRFE..GRJ150201111-201506

main12371-31370i1GRFE..GRJ150201506

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-11010i1GDFTV..GDJ15#..6F201506-201703

main12391-11020i1GDFTV..GDJ15#..6FC201506-201703

main12391-31020i1GRFE..GRJ150..RHD200908-201506

main12391-31040i1GRFE..GRJ150201506

9011910811

main90119-10811

9091003001

main90910-03001

9155281030

main91552-81030

9162140814

main91621-40814

9167180814

main91671-80814

9415121001

main94151-21001

9415121241

main94151-21241

12 parts on this diagram · 3 diagrams in section
