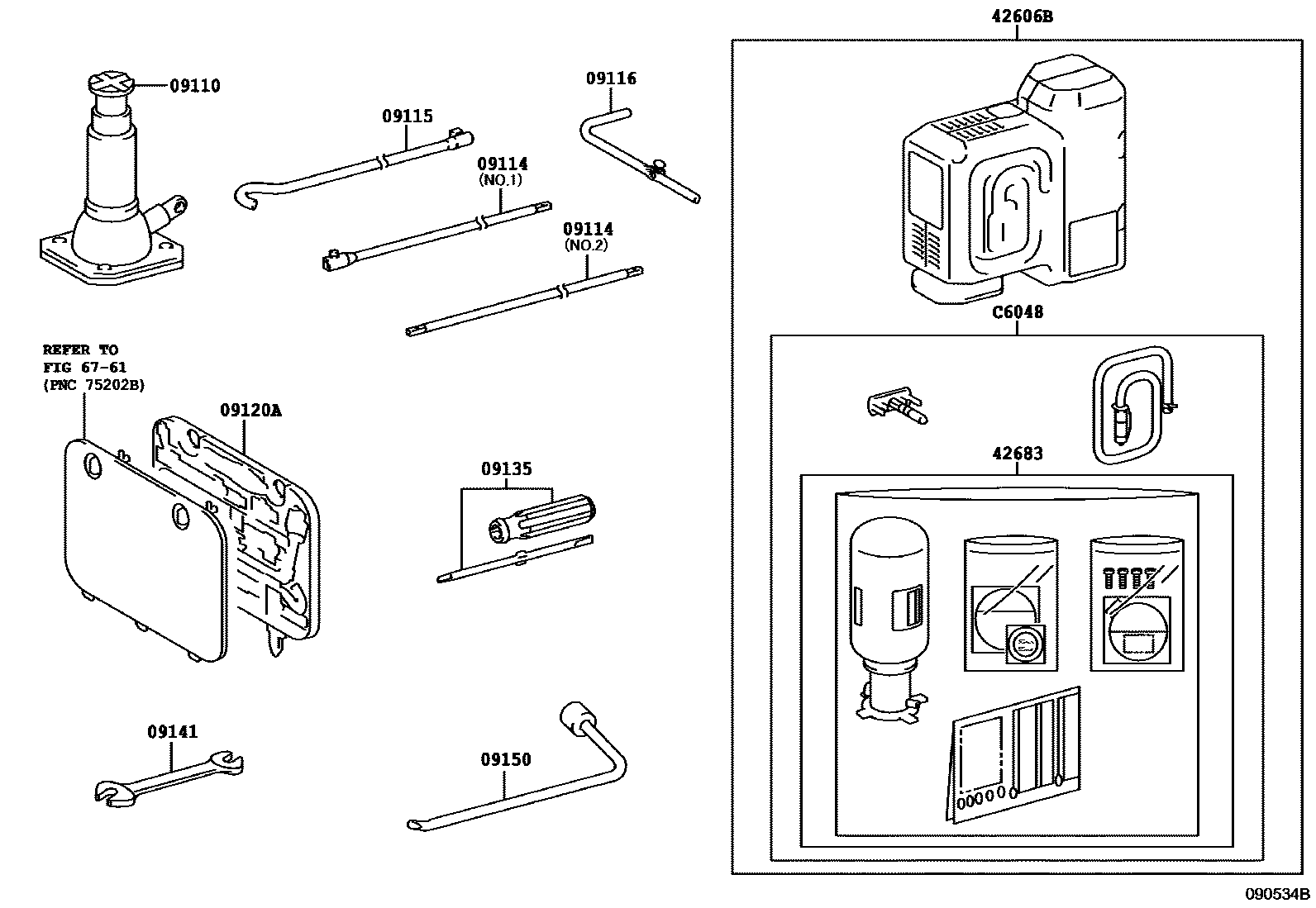

STANDARD TOOL

09110JACK ASSY

main09111-60130supersedes 09111-60130iGDJ15#,GRJ150,KDJ15#201506-201603

main09111-60131iGDJ15#,GRJ150,KDJ150201604

sub09111-60132

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iKDJ155201506-201607

NO.2

main09114-35050iGDJ15#,GRJ150,KDJ150201506

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iGRJ150..RHD200908-201110

09116LEVER, JACK HANDLE

main09116-35080iGRJ150..RHD200908-201110

sub09116-60020

09120ACASE, TOOL

main09120-60220iGRJ150..RHD200908-201110

09135DRIVER, SCREW

main09135-50060iGRJ150,KDJ15#201308-201506

main99915-10700iKDJ15#;GRJ150..LHD200908-201202

09141SPANNER

main99914-11214iKDJ155201308-201506

12 X 14

09150WRENCH, HUB NUT BOX

main09150-60040

42606BREPAIR KIT, TUBELESS TIRE

main42606-60020iKDJ15#..LHD200908-201205

IRELAND SPEC&SPARE TIRE-WITHOUT

main42606-60021iKDJ15#..LHD201206-201308

IRELAND SPEC&SPARE TIRE-WITHOUT

main42606-60022iKDJ15#201501-201506

SPARE TIRE-WITHOUT

sub42606-60023

42683SEAL, TIRE REPAIR

main42683-60010iKDJ15#..LHD200908-201205

IRELAND SPEC&SPARE TIRE-WITHOUT

main42683-60011iKDJ15#..LHD201206-201308

IRELAND SPEC&SPARE TIRE-WITHOUT

main42683-60012iKDJ15#201501-201506

SPARE TIRE-WITHOUT

6761

C6048REPAIR SET, TIRE

mainC604860010iKDJ15#..LHD200908-201205

IRELAND SPEC&SPARE TIRE-WITHOUT

mainC604860011iKDJ15#..LHD201206-201308

IRELAND SPEC&SPARE TIRE-WITHOUT

mainC604860012iKDJ15#201501-201506

SPARE TIRE-WITHOUT

12 parts on this diagram · 1 diagram in section
