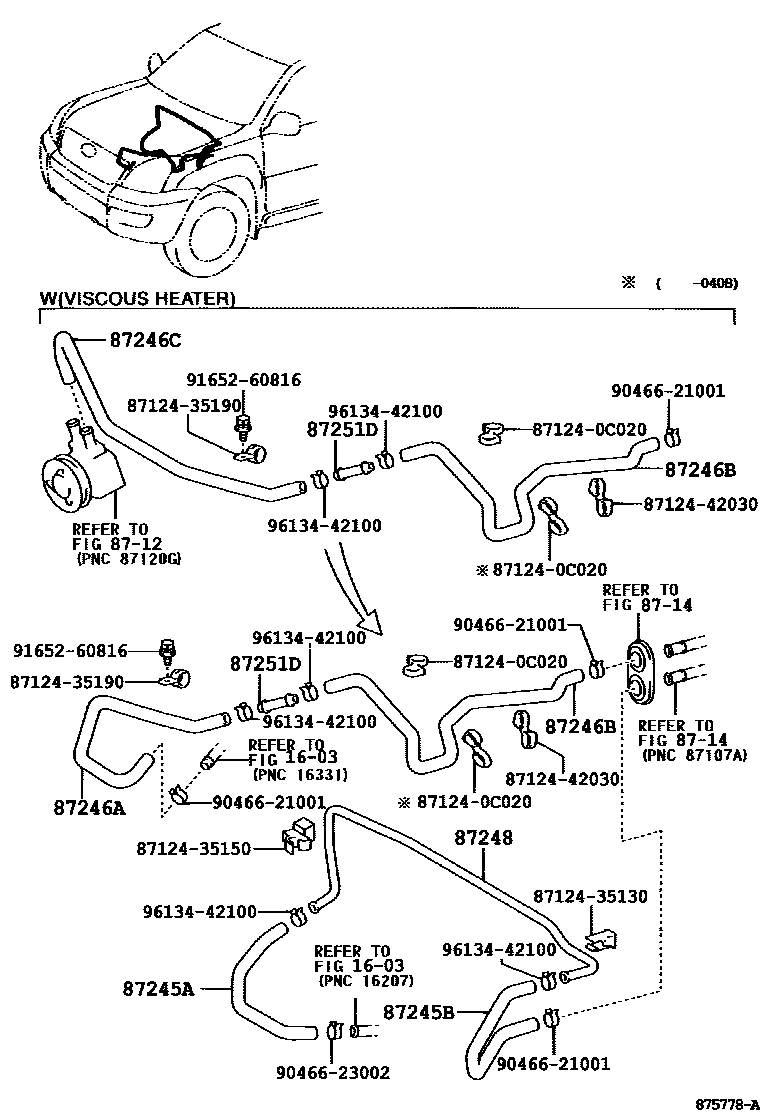

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

8712

8714

87245AHOSE, HEATER WATER, INLET A

main87245-3D480iGRJ12#..LHD200301

main87245-3D530iKDJ12#..LHD200209-200608

COLD SPEC

main87245-3D590iKDJ12#..RHD200209-200608

COLD SPEC

main87245-60A00iKDJ12#..RHD200608

COLD SPEC

main87245-60A50iKDJ12#..LHD200608

COLD SPEC

main87245-6A380iGRJ120..RHD200301

87245BHOSE, HEATER WATER, INLET B

main87245-3D470iKDJ12#..LHD200209-200608

COLD SPEC

main87245-3D500iGRJ12#..LHD200301

main87245-3D630iKDJ12#..RHD200209-200608

COLD SPEC

main87245-60A10iKDJ12#..RHD200608

COLD SPEC

main87245-60B00iKDJ12#..LHD200608

COLD SPEC

87246AHOSE, HEATER WATER, OUTLET A

main87245-3D490iGRJ12#..LHD200301

main87245-3D600iKDJ12#200408-200608

main87245-60A20iKDJ12#200608

main87245-6A620iGRJ120..RHD200301

main87245-6A860iKDJ12#200209-200408

87246BHOSE, HEATER WATER, OUTLET B

main87245-3D610iKDJ12#200408-200608

COLD SPEC

main87245-60A30iKDJ12#200608

COLD SPEC

main87245-6A850iKDJ12#200209-200408

COLD SPEC

87246CHOSE, HEATER WATER, OUTLET C

87248PIPE SUB-ASSY, WATER

main87248-35090iKDJ12#..LHD200209

main87248-35100iKDJ12#..RHD200209

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-35020iGRJ12#..LHD200301

87251DJOINT, WATER, NO.1

main87251-35020iKDJ12#200209-200608

main87251-60060iKDJ12#200608

871240C020CLAMP, HEATER

main87124-0C020

8712435130CLAMP, HEATER

main87124-35130

8712435150CLAMP, HEATER

main87124-35150

8712435190CLAMP, HEATER

main87124-35190

8712442030CLAMP, HEATER

main87124-42030

9046621001

main90466-21001

9046623002

main90466-23002

9165260816

main91652-60816

9613442100

main96134-42100

20 parts on this diagram · 6 diagrams in section
