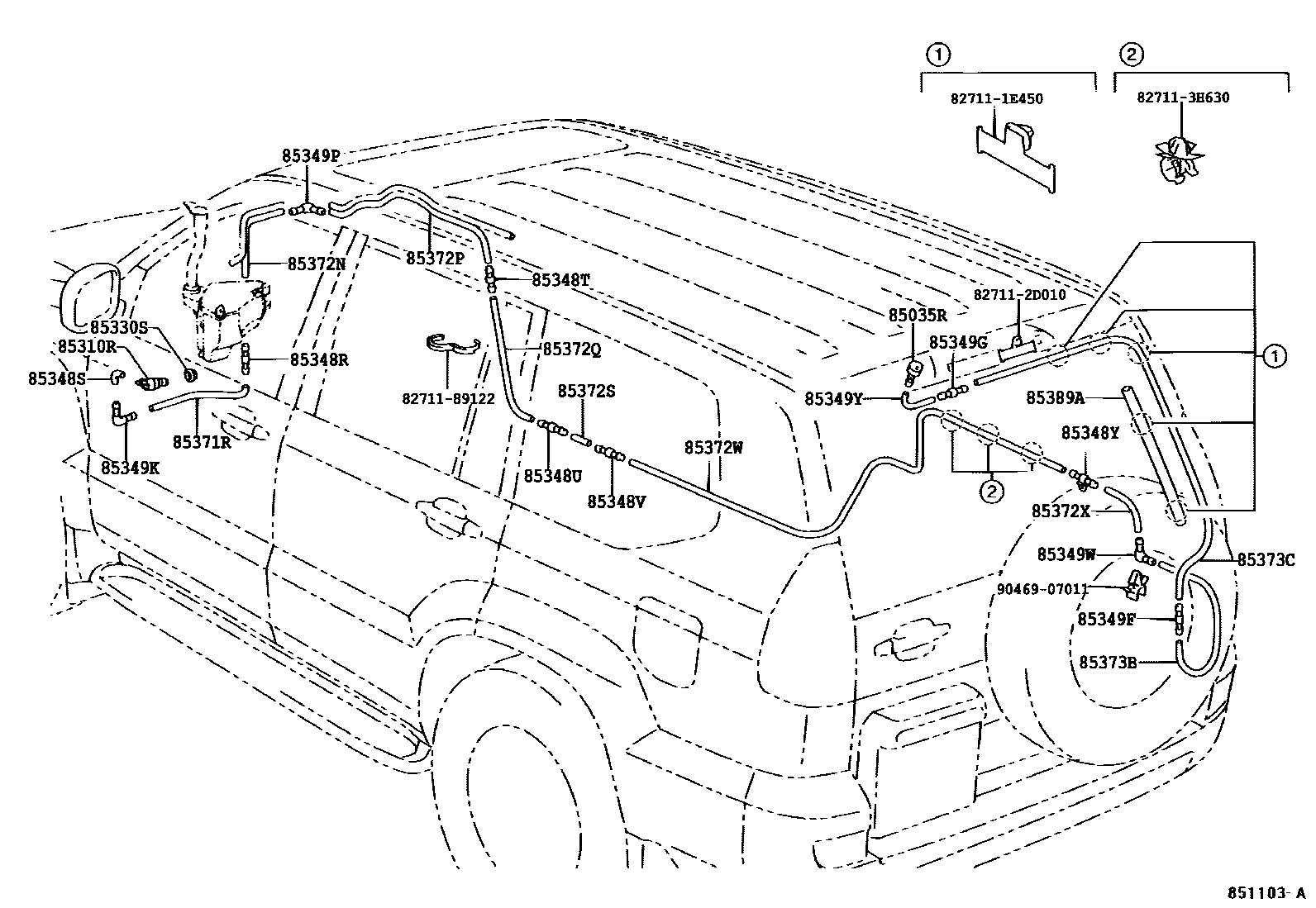

REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85349WJOINT, REAR WASHER ELBOW, NO.4
85349YJOINT, REAR WASHER ELBOW, NO.5
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=250)
L=1450(*H,L=250),WITH(HEAD LAMP CLEANER)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=210)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=1000)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1800(*H,L=500)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=50)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=3300
L=3300(*H,L=1900)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=130)
L=1800(*H,L=210)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1800(*H,L=500)
L=1800(*H,L=930)
85373CTUBE, REAR WASHER RUBBER
L=1450(*H,L=1350)
L=1450(*H,L=130)
85389PACKING, WINDSHIELD WASHER HOSE, NO.1
85389APACKING, WINDSHIELD WASHER HOSE, NO.2
827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827112D010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827113H630WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271189122WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9046907011
31 parts on this diagram · 2 diagrams in section
