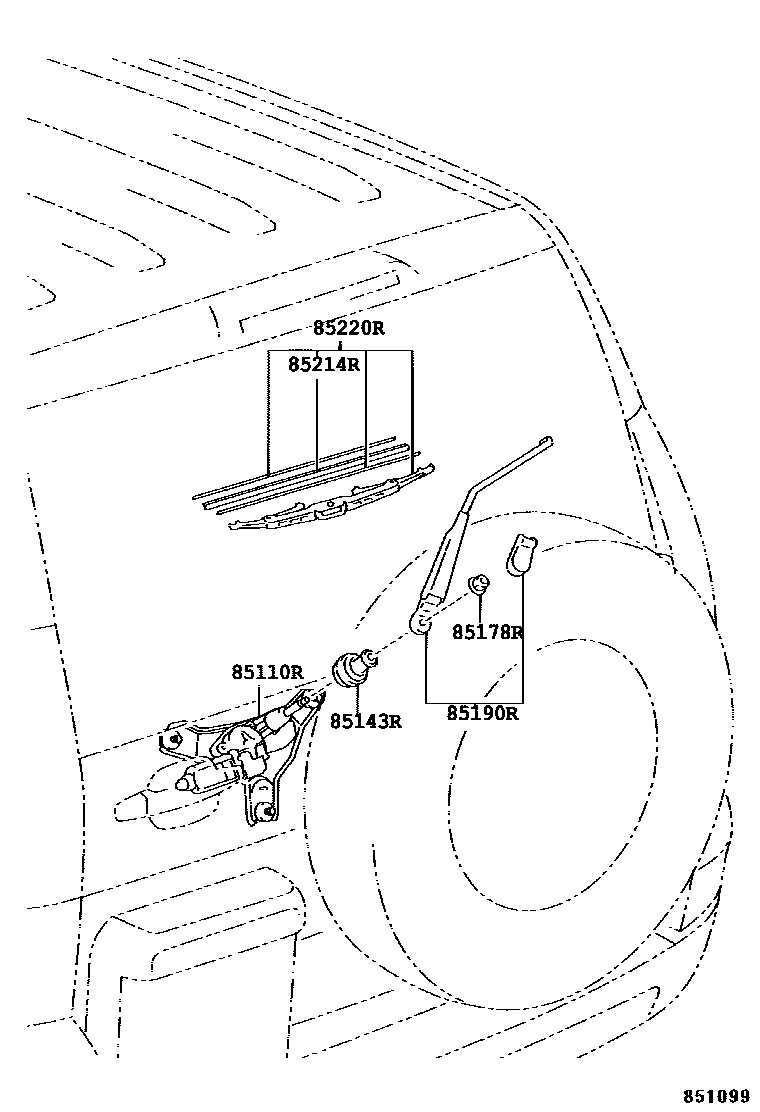

REAR WIPER

0001 1W(SPARE TIRE CARRIER = BACK D0002 1W(SPARE TIRE CARRIER = FRAME)

85110RMOTOR ASSY, REAR WIPER

main85130-60200iGRJ12#,KDJ12#¥26,800200209-200707

main85130-60250iGRJ12#,KDJ12#200707

85143RGROMMET, REAR WIPER MOTOR

main85143-60120iGRJ12#,KDJ12#¥260200209

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGRJ12#,KDJ12#¥70200209

85190RARM ASSY, REAR WIPER

main85241-60100iGRJ12#,KDJ12#¥3,570200209

85214RRUBBER, REAR WIPER

main85214-22420iGRJ12#,KDJ12#¥1,020200209-200607

sub85214-46011¥800

main85214-46011iGRJ12#,KDJ12#¥800200608

85220RBLADE ASSY, REAR WIPER

main85242-60070iGRJ12#,KDJ12#¥2,510200209-200607

sub85242-60071¥2,510

main85242-60071iGRJ12#,KDJ12#¥2,510200608

6 parts on this diagram · 2 diagrams in section
