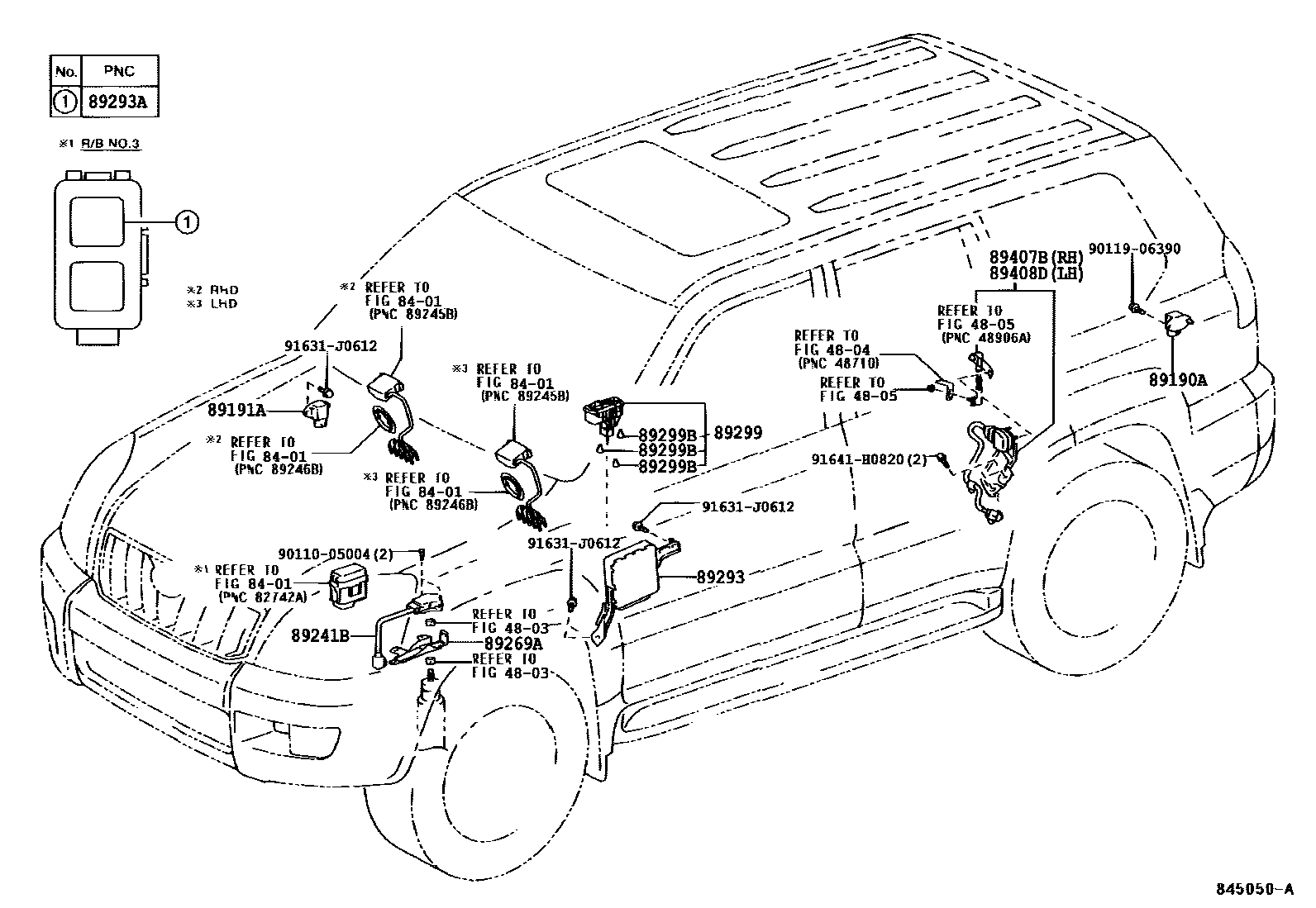

ELECTRONIC MODULATED SUSPENSION

4803

4804

4805

8401

89190ASENSOR ASSY, ACCELERATION

89191ASENSOR, ACCELERATION

89241BACTUATOR, ABSORBER CONTROL

89269ABRACKET, SUSPENSION CONTROL

89293COMPUTER, SUSPENSION CONTROL

main90987-02025¥2,930

main89293-60030¥31,900

main89293-60031¥32,000

main89293-60032¥32,000

main89293-60033¥75,200

89293ARELAY, SUSPENSION CONTROL

89299SWITCH, SUSPENSION CONTROL

main89299-60020¥9,000

main90010-01039¥270

89299BBULB(FOR SUSPENSION CONTROL SWITCH)

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

9011005004

main90110-05004¥70

9011906390

main90119-06390¥70

91631J0612

main91631-J0612¥110

91641H0820

main91641-H0820¥90

18 parts on this diagram · 1 diagram in section
