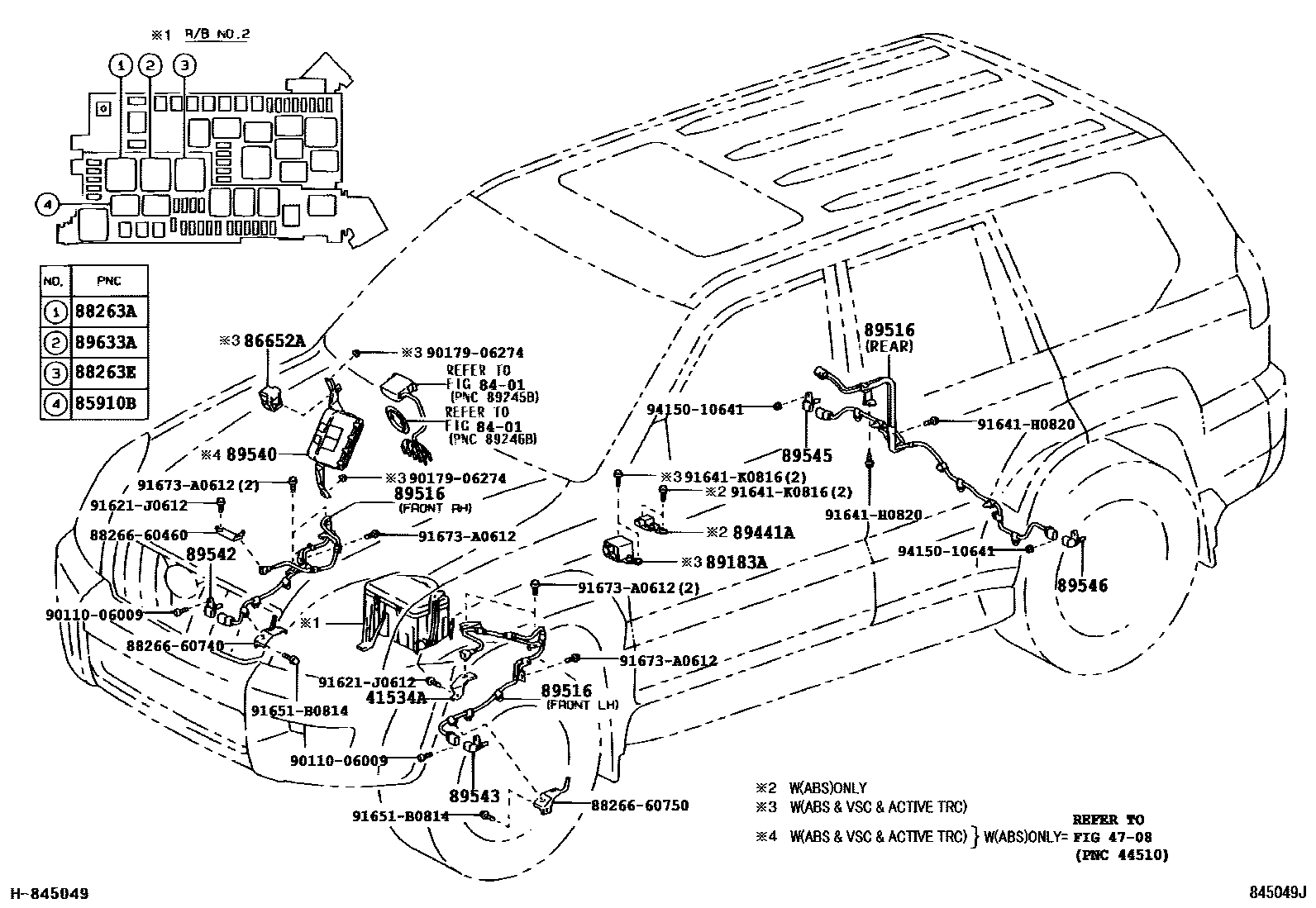

ABS & VSC

0001 1 0002 1 0003 1 0004 1

41534ABRACKET, FRONT DIFFERENTIAL BREATHER

main41534-60020iGRJ12#,KDJ12#200209

4708

8401

85910BRELAY ASSY, CIRCUIT OPENING (FOR ESC)

86652ABUZZER ASSY, SKID CONTROL

88263ARELAY, SKID CONTROL

88263ERELAY, SKID CONTROL NO.2

89183ASENSOR, YAWRATE

89441ASENSOR, DECELERATION

main89440-60130iGRJ12#,KDJ12#200408

89516WIRE, SKID CONTROL SENSOR

main89516-60070iGRJ12#,KDJ12#200408-200707

FRONT RH

main89516-60080iGRJ12#,KDJ12#200408-200707

FRONT LH

main89516-60090iGRJ120,KDJ120200408

REAR

main89516-60100iGRJ125,KDJ125200408

REAR

main89516-60160iGRJ12#,KDJ12#200707

FRONT RH

main89516-60170iGRJ12#,KDJ12#200707

FRONT LH

89540COMPUTER ASSY, SKID CONTROL

main89540-60230

main89540-60240

main89540-60260

main89540-60280

main89540-60290

main89540-60300

main89540-60310

main89540-60330

main89540-60340

main89540-60350

main89540-60370

89542SENSOR, SPEED, FRONT RH

main89542-60050iGRJ12#,KDJ12#200408

89543SENSOR, SPEED, FRONT LH

main89543-60050iGRJ12#,KDJ12#200408

89545SENSOR, SPEED, REAR RH

main89542-60050iGRJ12#,KDJ12#200408

89546SENSOR, SPEED, REAR LH

main89543-60050iGRJ12#,KDJ12#200408

89633ARELAY, TRACTION CONTROL OR VSC

8826660460CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-60460

8826660740CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-60740

8826660750CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-60750

9011006009

main90110-06009

9017906274

main90179-06274

91621J0612

main91621-J0612

91641H0820

main91641-H0820

91641K0816

main91641-K0816

91651B0814

main91651-B0814

91673A0612

main91673-A0612

9415010641

main94150-10641

27 parts on this diagram · 4 diagrams in section
