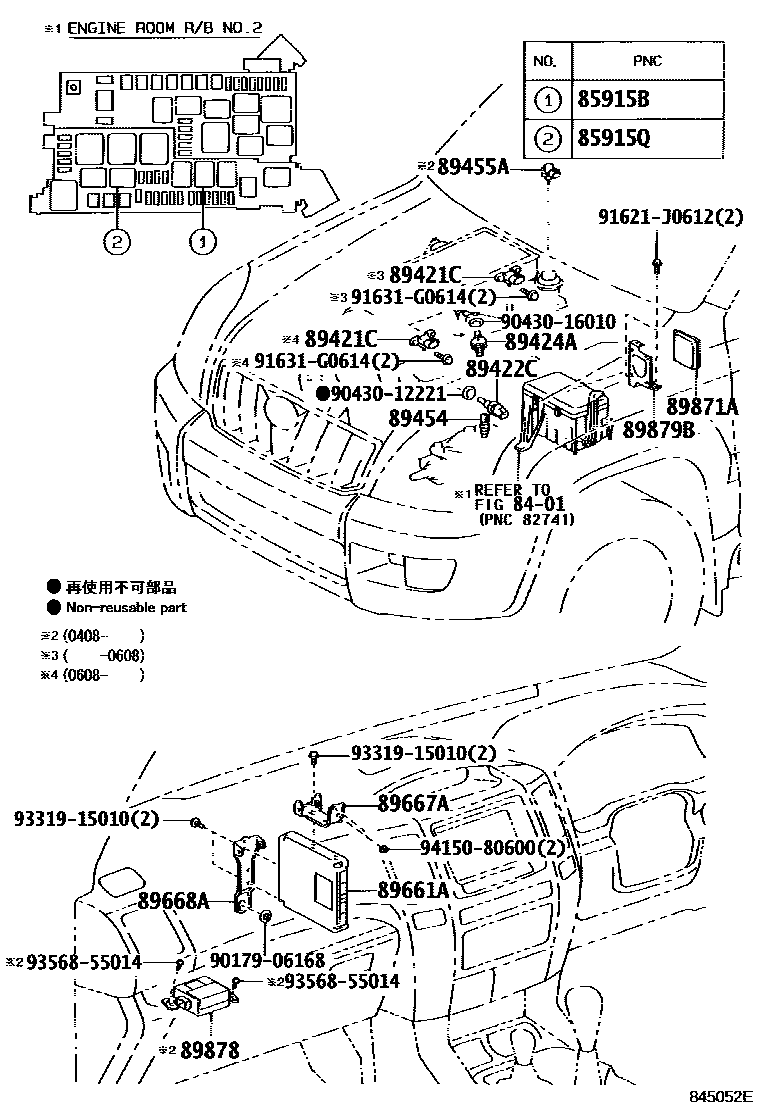

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

8401

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02022iKDJ12#200209-200401

main90987-02027iKDJ12#200401-200908

85915QRELAY, COMPUTER (FOR DIESEL)

main90987-02022iKDJ12#200209-200401

main90987-02027iKDJ12#200401

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200iKDJ12#200608-200908

main89421-20210iKDJ12#200209-200408

main89421-71020iKDJ12#200408-200608

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iKDJ12#200408

main89422-35010iKDJ12#200209-200408

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iKDJ12#200209-200908

89454SENSOR, FUEL TEMPERATURE

main89454-20010iKDJ12#200509-200908

main89454-60010iKDJ12#200209-200508

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKDJ12#200408-200908

89661ACOMPUTER, ENGINE CONTROL

main89661-60E80iKDJ12#..5FC200608-200707

sub89661-60E81

main89661-60E81iKDJ12#..5FC200708

main89661-60E90iKDJ12#..6F200608-200707

sub89661-60E91

main89661-60E91iKDJ12#..6F200708

main89661-6A060iKDJ12#..5F200209-200408

main89661-6A070iKDJ12#..4FC200209-200408

main89661-6A330iKDJ12#..5FC200408-200608

main89661-6A350iKDJ12#..6F200408-200608

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-60240iKDJ12#..5FC,6F200209-200707

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60240iKDJ12#..5FC,6F200209-200707

89871ADRIVER, INJECTOR

main89871-20030iKDJ12#200209-200408

main89871-20050iKDJ12#200408

89878DRIVER, TURBO MOTOR

main89878-60011iKDJ12#..RHD200408-200608

main89878-60020iKDJ12#..LHD200408-200608

main89878-60030iKDJ12#..RHD200608

main89878-60040iKDJ12#..LHD200608

89879BBRACKET, INJECTOR DRIVER

main89879-60060iKDJ12#200209

9017906168

main90179-06168

9043012221

main90430-12221

9043016010

main90430-16010

91621J0612

main91621-J0612

91631G0614

main91631-G0614

9331915010

main93319-15010

9356855014

main93568-55014

9415080600

main94150-80600

22 parts on this diagram · 2 diagrams in section
