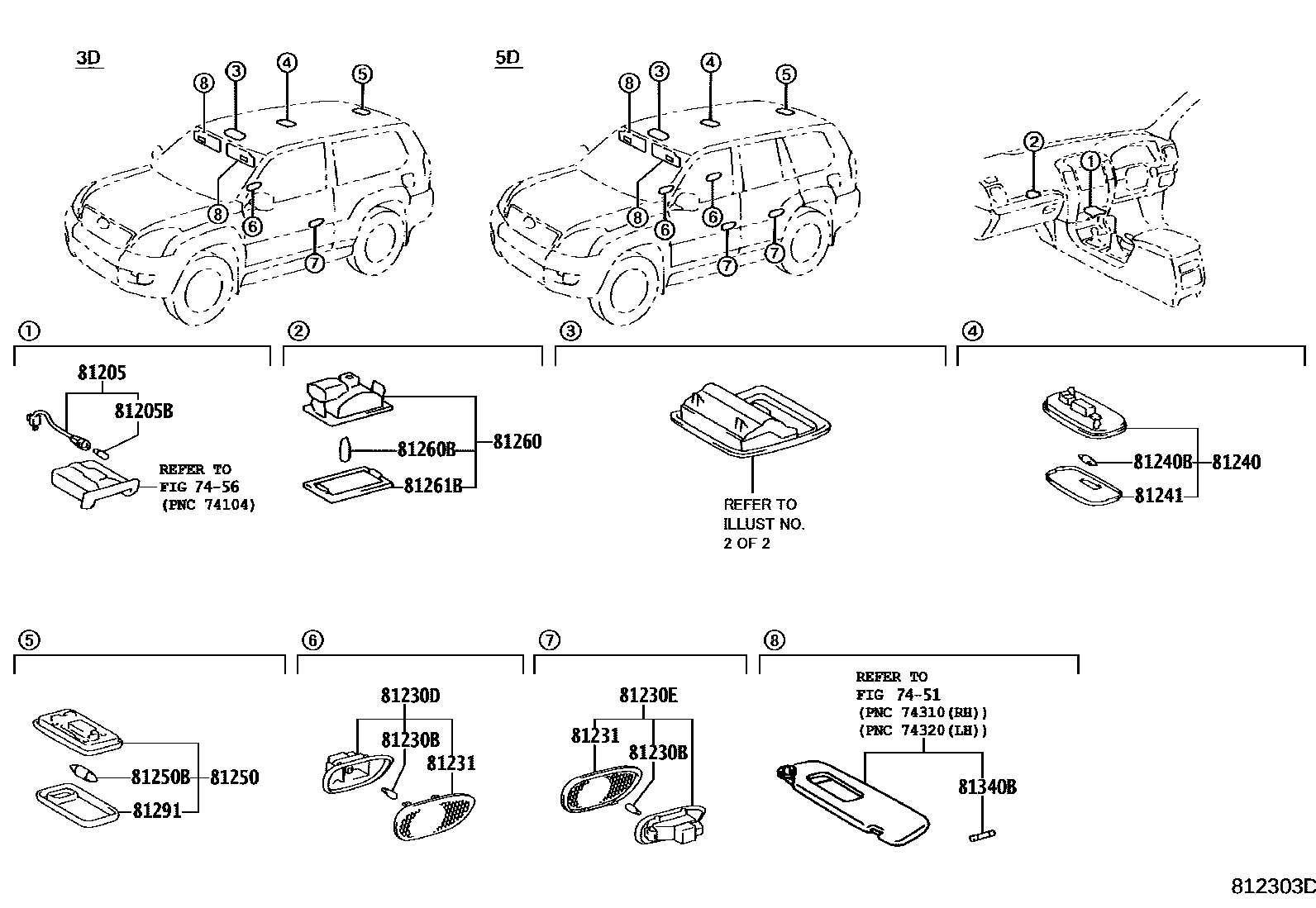

INTERIOR LAMP
7451
7456
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
12V 1.2W W/O SOCKET
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
12V 8W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM0#
STONE,TRIM1#
81250BBULB, ROOM LAMP, NO.2
12V 8W
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81261BLENS,GLOVE BOX LAMP
81291LENS, ROOM LAMP, NO.3(FOR REAR)
81340BBULB (FOR VANITY LAMP)
12V 2W
18 parts on this diagram · 2 diagrams in section
