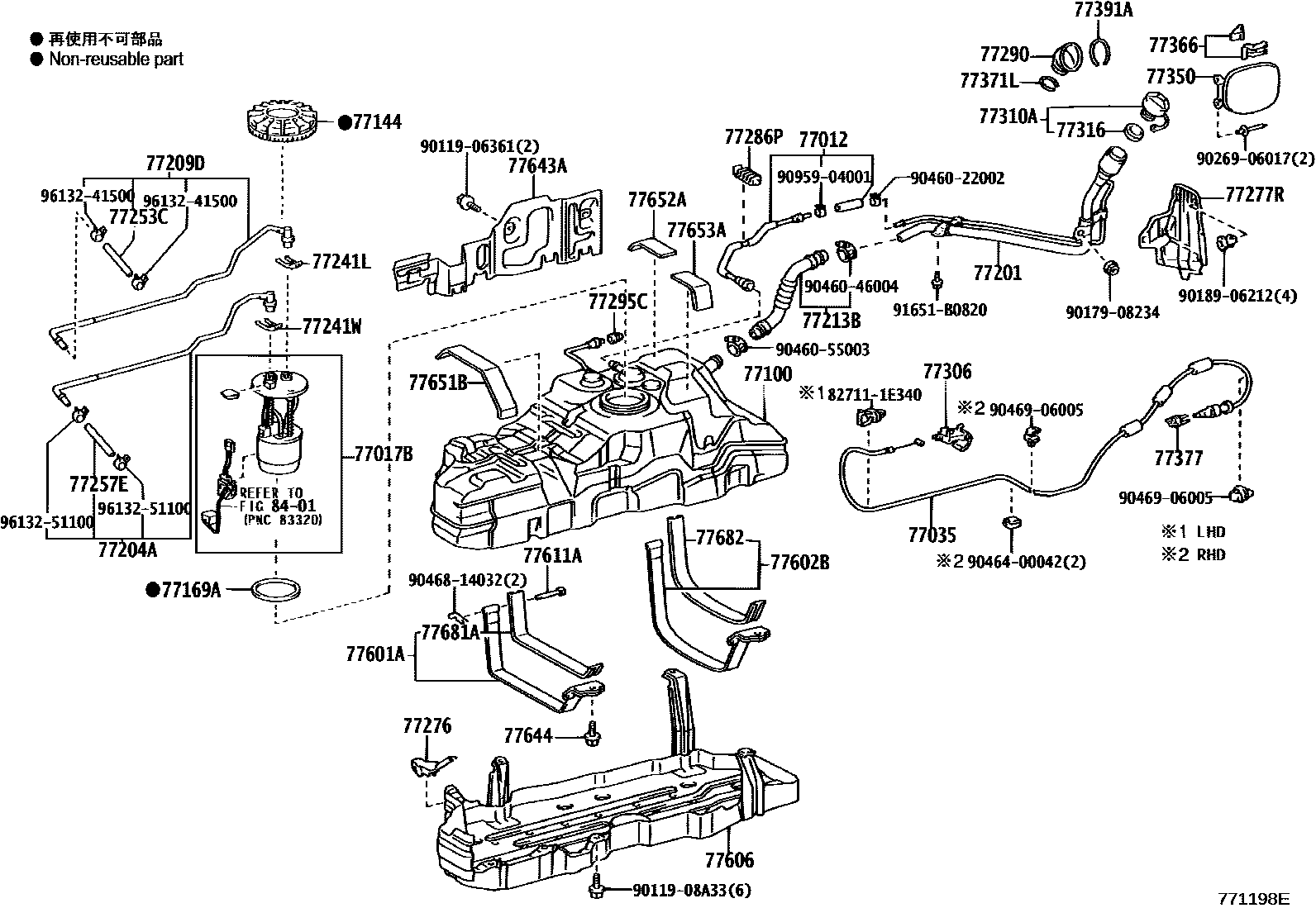

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL TUBE

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-35050iGRJ120200301-200908

main77012-35060iKDJ120200209-200908

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-35030iKDJ120200209-200908

main77017-60490iKDJ125200209-200408

main77017-60500iKDJ125200408-200908

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60090iGRJ120,KDJ120..RHD200209-200908

main77035-60100iGRJ120,KDJ120..LHD200209-200908

main77035-60110iKDJ125..RHD200209-200908

main77035-60120iGRJ125,KDJ125..LHD200209-200908

77100TANK ASSY, FUEL

main77001-3D520iGRJ120200301-200405

sub77001-3D521

main77001-3D521iGRJ120200405-200908

sub77001-60850

main77001-3D530iKDJ120200209-200405

sub77001-3D531

main77001-3D531iKDJ120200405-200908

sub77001-60A30

main77001-3D541iKDJ120200408-200608

main77001-60640iGRJ125,KDJ125200209-200805

sub77001-60641

main77001-60641iGRJ125,KDJ125200806-200908

77144RETAINER, FUEL PUMP GAUGE

main77144-35010iGRJ120,KDJ120200209-200908

77169AGASKET, FUEL SUCTION TUBE SET

main77169-35010iGRJ120,KDJ120200209-200908

sub77169-30050

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35780iGRJ120200301-200908

main77201-60800iKDJ120200209-200908

main77201-60870iKDJ125200209-200908

main77201-60880iGRJ125200301-200908

77204ATUBE, FUEL TANK RETURN

main77204-35040iGRJ120200301-200908

main77204-35050iKDJ120200209-200408

main77204-35060iKDJ120200408-200608

main77204-60050iKDJ120200608-200908

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-35420iGRJ120200301-200908

main77209-35430iKDJ120200209-200908

77213HOSE, FUEL TANK SUB INLET

main95312-13020iGRJ125200301

L=200

sub95313-13020

main95313-13020iKDJ125200209

L=200

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-35380iGRJ120200301-200908

main77213-35390iKDJ120200209-200908

sub77213-35380

main77213-60250iKDJ125200209-200908

main77213-60260iGRJ125200301-200908

77241LTUBE, FUEL TANK SUCTION

main77241-35450iKDJ120200209

77241WCLIP, TUBE JOINT

main77241-60320iKDJ120200209-200908

77253CHOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE)

main77259-25130iKDJ120200608

main95332-10018iKDJ120200209-200607

sub95338-10018

77257EHOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE)

main77257-35040iKDJ120200408-200608

main95333-06020iKDJ120200209-200408

sub95337-06020

main95333-08010iKDJ125200408-200608

77276PROTECTOR, FUEL HOSE

main77276-35040iGRJ120,KDJ120200209-200908

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60080iGRJ12#,KDJ12#200209-200908

77286PCLAMP, FUEL TUBE, NO.8

main77285-35620iGRJ120,KDJ120200209-200908

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-60100iGRJ120,KDJ120200209-200908

main77291-60110iGRJ125,KDJ125200209-200908

77295CGROMMET, FUEL TUBE

main77295-27010iKDJ120200209

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28050-A0iGRJ12#,KDJ12#200209-200709

IVORY,TRIM0#

sub77306-28050

main77306-28050-C0iGRJ12#,KDJ12#200209-200709

BLACK,TRIM1#

sub77306-28050

main77306-58010-A0iGRJ12#,KDJ12#200710-200908

IVORY,TRIM0#

sub77306-28050

sub77306-58010

main77306-58010-C0iGRJ12#,KDJ12#200710-200908

BLACK,TRIM1#

sub77306-28050

sub77306-58010

77310ACAP ASSY, FUEL TANK

main77300-33062iGRJ12#200301-200308

sub77300-35040

main77300-35020iKDJ12#200209-200308

sub77300-35050

main77300-35040iGRJ12#200308-200908

sub77300-47010

main77300-35050iKDJ12#200308-200908

77316GASKET, FUEL TANK CAP

main77316-33042iGRJ12#,KDJ12#200209-200908

77350LID ASSY, FUEL FILLER OPENING

main77350-60070iGRJ120,KDJ120200209-200908

main77350-60080iGRJ125,KDJ125200209-200908

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iGRJ12#,KDJ12#200209-200409

main77360-35040iGRJ12#,KDJ12#200410-200908

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iGRJ12#,KDJ12#200209-200908

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-35010iGRJ12#,KDJ12#200209-200908

77391ARING, FUEL INLET BOX

main77391-60050iGRJ12#,KDJ12#200209-200908

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-35090iGRJ120,KDJ120200209-200908

main77601-60280iGRJ125,KDJ125200209-200908

sub77601-60410

sub77617-60170

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-35030iGRJ120,KDJ120200209-200908

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-35060iGRJ120,KDJ120200209-200908

main77606-60150iGRJ125,KDJ125200209-200908

77611APIN (FOR FUEL TANK BAND)

main77653-35040iGRJ120,KDJ120200209-200908

main77653-60070iGRJ125,KDJ125200209-200908

77643APROTECTOR, FUEL TANK, NO.3

main77643-35020iGRJ120,KDJ120200209-200908

sub77643-35040

77644BOLT, FUEL TANK

main77644-35030iGRJ120,KDJ120200209-200908

77651BCUSHION, FUEL TANK

main77651-35070iGRJ120,KDJ120200209-200908

77652ACUSHION, FUEL TANK, NO.2

main77652-35060iGRJ120,KDJ120200209-200908

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iGRJ120,KDJ120200209-200908

77681ASEAT, FUEL TANK BAND

main77681-35030iGRJ120,KDJ120200209-200704

sub77681-35031

main77681-35031iGRJ120,KDJ120200705-200908

sub77681-60170

77682SEAT, FUEL TANK BAND, LH

main77681-35040iGRJ120,KDJ120200209-200704

sub77681-35041

main77681-35041iGRJ120,KDJ120200705-200908

8401

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

9011906361

main90119-06361

9011908A33

main90119-08A33

9017908234

main90179-08234

9018906212

main90189-06212

9026906017

main90269-06017

9046022002

main90460-22002

9046046004

main90460-46004

9046055003

main90460-55003

9046400042

main90464-00042

9046814032

main90468-14032

9046906005

main90469-06005

9095904001

main90959-04001

91651B0820

main91651-B0820

9613241500

main96132-41500

9613251100

main96132-51100

56 parts on this diagram · 13 diagrams in section
