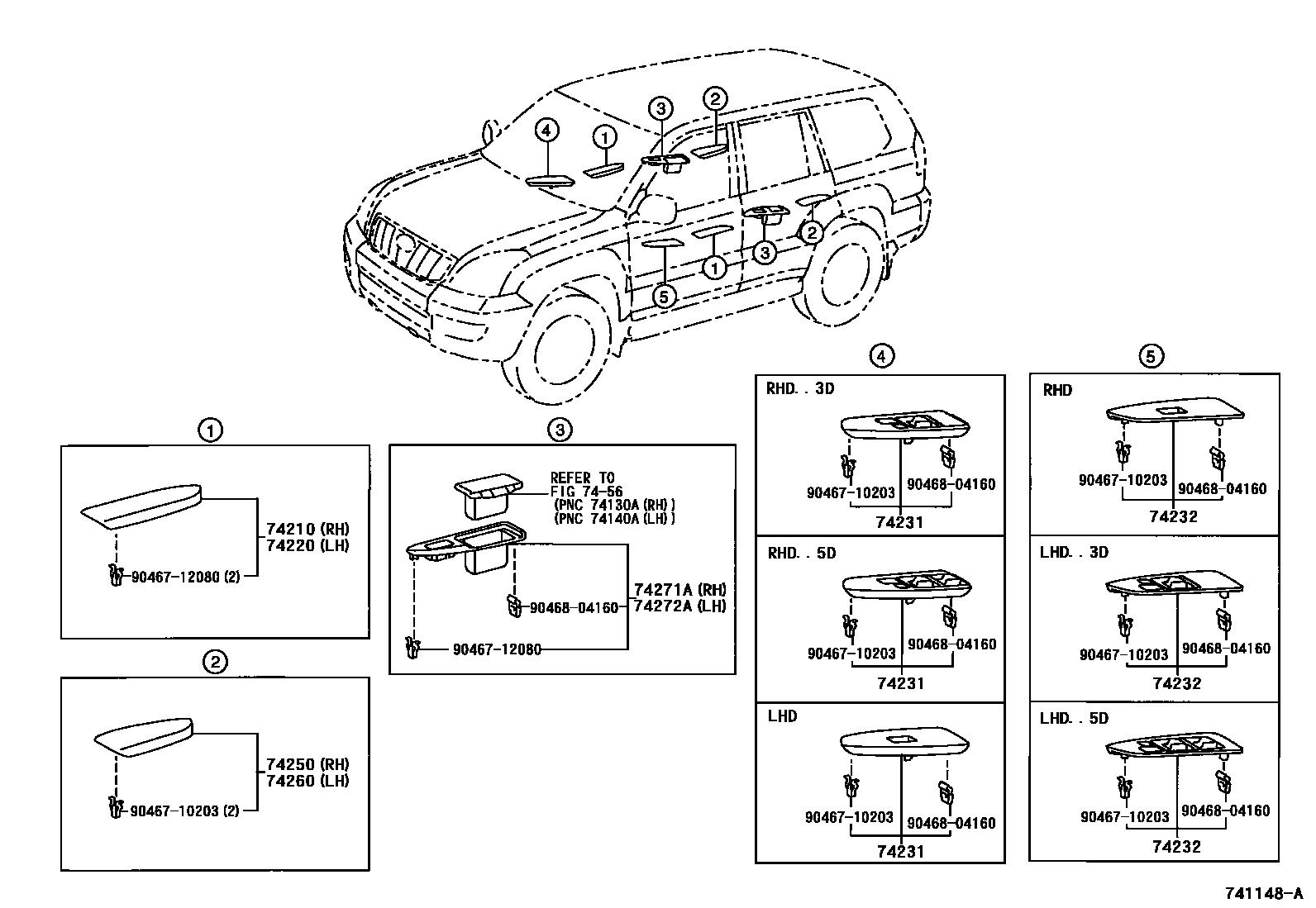

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP 0003 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-60171-A0iGRJ12#,KDJ12#200705-200908

IVORY,TRIM0#

sub74210-60172

main74210-60171-B0iGRJ12#,KDJ12#200705-200908

MEDIUM GRAY,TRIM1#

sub74210-60172

main74210-60160-A0supersedes 74210-60170-A0iGRJ12#,KDJ12#200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE,IVORY,TRIM0#

sub74210-60210

main74210-60160-B0supersedes 74210-60170-B0iGRJ12#,KDJ12#200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE,MD.GRAY,TRIM1#

sub74210-60210

74220ARMREST ASSY, FRONT, LH

main74220-60171-A0iGRJ12#,KDJ12#200705-200908

IVORY,TRIM0#

sub74220-60172

main74220-60171-B0iGRJ12#,KDJ12#200705-200908

MEDIUM GRAY,TRIM1#

sub74220-60172

main74220-60160-A0supersedes 74220-60170-A0iGRJ12#,KDJ12#200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE,IVORY,TRIM0#

sub74220-60210

main74220-60160-B0supersedes 74220-60170-B0iGRJ12#,KDJ12#200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE,MD.GRAY,TRIM1#

sub74220-60210

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60420supersedes 74231-60400iGRJ120,KDJ120..RHD200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE

main74231-60440supersedes 74231-60430iKDJ125..RHD200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE

main74231-60490supersedes 74231-60480iGRJ12#,KDJ12#..LHD200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60370supersedes 74232-60350iGRJ120,KDJ12#..RHD200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE

main74232-60440supersedes 74232-60430iGRJ120,KDJ120..LHD200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE

main74232-60450supersedes 74232-60460iGRJ125,KDJ125..LHD200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE

74250ARMREST ASSY, REAR RH

main74250-60111-A0iGRJ120,KDJ120200705-200908

IVORY,TRIM0#

sub74250-60112

main74250-60111-B0iGRJ120,KDJ120200705-200908

MEDIUM GRAY,TRIM1#

sub74250-60112

main74250-60100-A0supersedes 74250-60110-A0iGRJ120,KDJ120200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE,IVORY,TRIM0#

sub74250-60150

main74250-60100-B0supersedes 74250-60110-B0iGRJ120,KDJ120200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE,MD.GRAY,TRIM1#

sub74250-60150

74260ARMREST ASSY, REAR LH

main74260-60111-A0iGRJ120,KDJ120200705-200908

IVORY,TRIM0#

sub74260-60112

main74260-60111-B0iGRJ120,KDJ120200705-200908

MEDIUM GRAY,TRIM1#

sub74260-60112

main74260-60100-A0supersedes 74260-60110-A0iGRJ120,KDJ120200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE,IVORY,TRIM0#

sub74260-60150

main74260-60100-B0supersedes 74260-60110-B0iGRJ120,KDJ120200707-200908

LEATHER & BLACK WOOD STEERING PACKAGE,MD.GRAY,TRIM1#

sub74260-60150

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60150supersedes 74271-60130iGRJ120,KDJ120200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60150supersedes 74272-60130iGRJ120,KDJ120200209-200908

W(*LEP1) & LEATHER SEAT PACKAGE

7456

9046710203

main90467-10203

9046712080

main90467-12080

9046804160

main90468-04160

12 parts on this diagram · 3 diagrams in section
