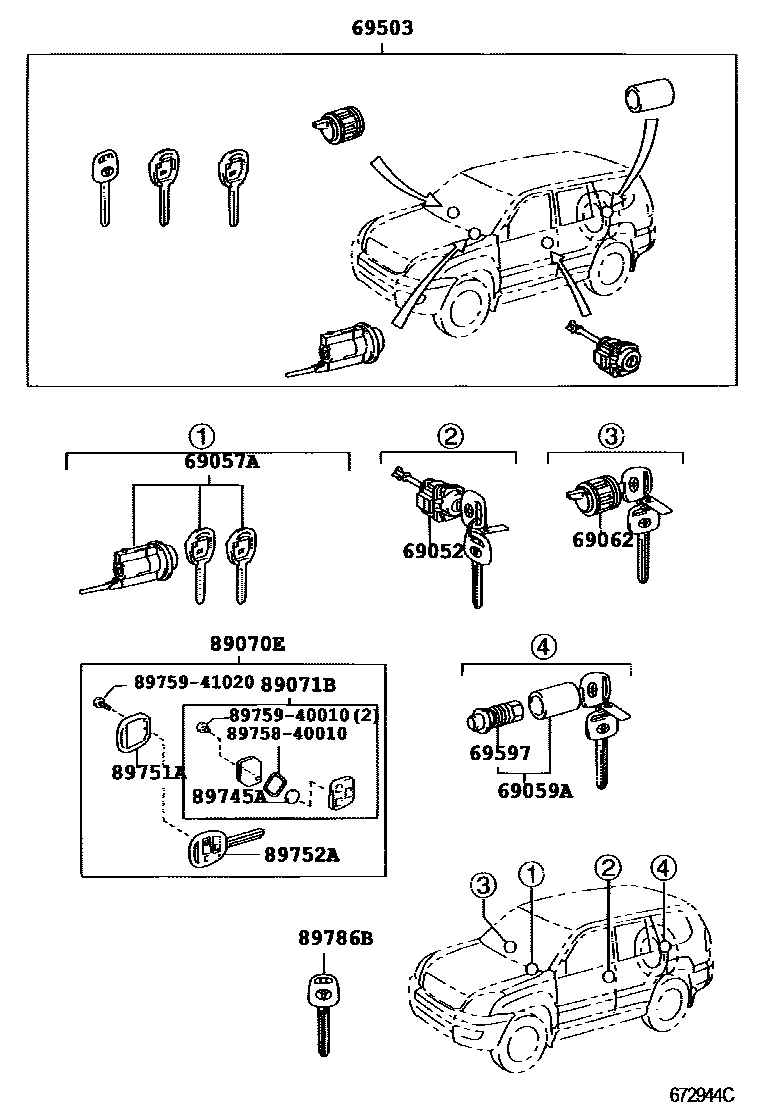

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-60240iGRJ12#,KDJ12#..LHD200209

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-60360iGRJ12#,KDJ12#..LHD200209-200604

sub69057-60361

main69057-60361iGRJ12#,KDJ12#..LHD200605

main69057-60560iGRJ120,KDJ12#..RHD200209-200604

sub69057-60561

main69057-60561iGRJ120,KDJ12#..RHD200605

69059ACYLINDER & KEY SET, SPARE WHEEL LOCK

main69059-60220iGRJ12#,KDJ12#200209

SPARE WHEEL CARRIER-UNDER FLOOR CHAIN TYPE

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-60160iGRJ12#,KDJ12#200209

69503CYLINDER SET, LOCK

main69005-6B850iGRJ120,KDJ12#..RHD200209-200604

sub69005-6B851

main69005-6B851iGRJ120,KDJ12#..RHD200605

main69005-6B860iGRJ12#,KDJ12#..LHD200209-200604

sub69005-6B861

main69005-6B861iGRJ12#,KDJ12#..LHD200605

69597NUT, SPARE WHEEL LOCK

main69597-60090iGRJ12#,KDJ12#200209

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-60790iGRJ12#,KDJ12#200303-200604

sub89070-60791

main89070-60791iGRJ12#,KDJ12#200605-200706

sub89070-60792

main89070-60792iGRJ12#,KDJ12#200707

sub89070-60793

main89070-6A030iGRJ12#,KDJ12#200209-200303

sub89070-60790

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-42050iGRJ12#,KDJ12#200209

89745ABATTERY, TRANSMITTER

main89745-40010iGRJ12#,KDJ12#200209

89751ACOVER, TRANSMITTER HOUSING

main89751-13010iGRJ12#,KDJ12#200209-200512

sub89751-13012

main89751-13011iGRJ12#,KDJ12#200512-200706

sub89751-13012

main89751-60060iGRJ12#,KDJ12#200707

sub89751-35070

89752ACASE, TRANSMITTER HOUSING

main89752-60050iGRJ12#,KDJ12#200209

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iGRJ12#,KDJ12#200209

BLANK KEY

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

15 parts on this diagram · 2 diagrams in section
