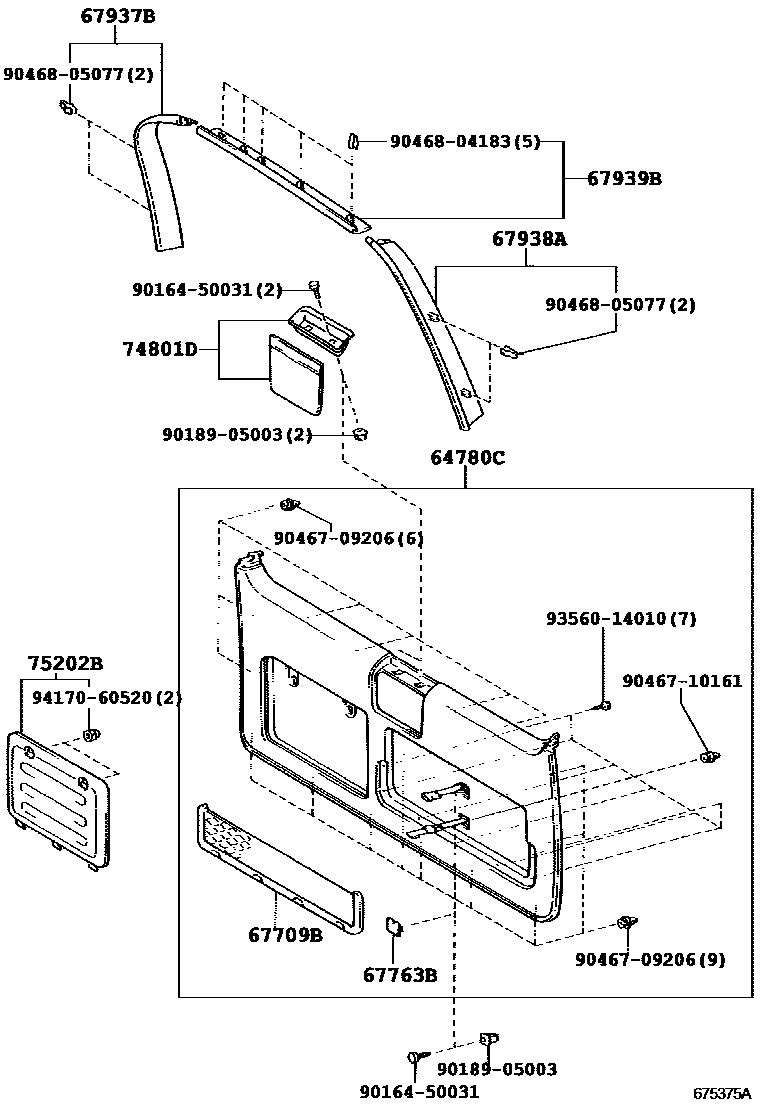

BACK DOOR PANEL & GLASS
64780CPANEL ASSY, BACK DOOR TRIM, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
67709BPOCKET SUB-ASSY, BACK DOOR TRIM
IVORY,TRIM0#
GRAY,TRIM1#
67763BCOVER, BACK DOOR TRIM, LOWER RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
67937BGARNISH, BACK DOOR SIDE, RH
67938AGARNISH, BACK DOOR SIDE, LH
67939BGARNISH, BACK DOOR, CENTER
74801DHANDLE SUB-ASSY, DOOR PULL
IVORY,TRIM0#
MD.GRAY,TRIM1#
75202BPANEL SUB-ASSY, TOOL BOX, UPPER
9016450031
main90164-50031
9018905003
main90189-05003
9046709206
main90467-09206
9046710161
main90467-10161
9046804183
main90468-04183
9046805077
main90468-05077
9356014010
main93560-14010
9417060520
main94170-60520
16 parts on this diagram · 4 diagrams in section
