FRONT DOOR LOCK & HANDLE

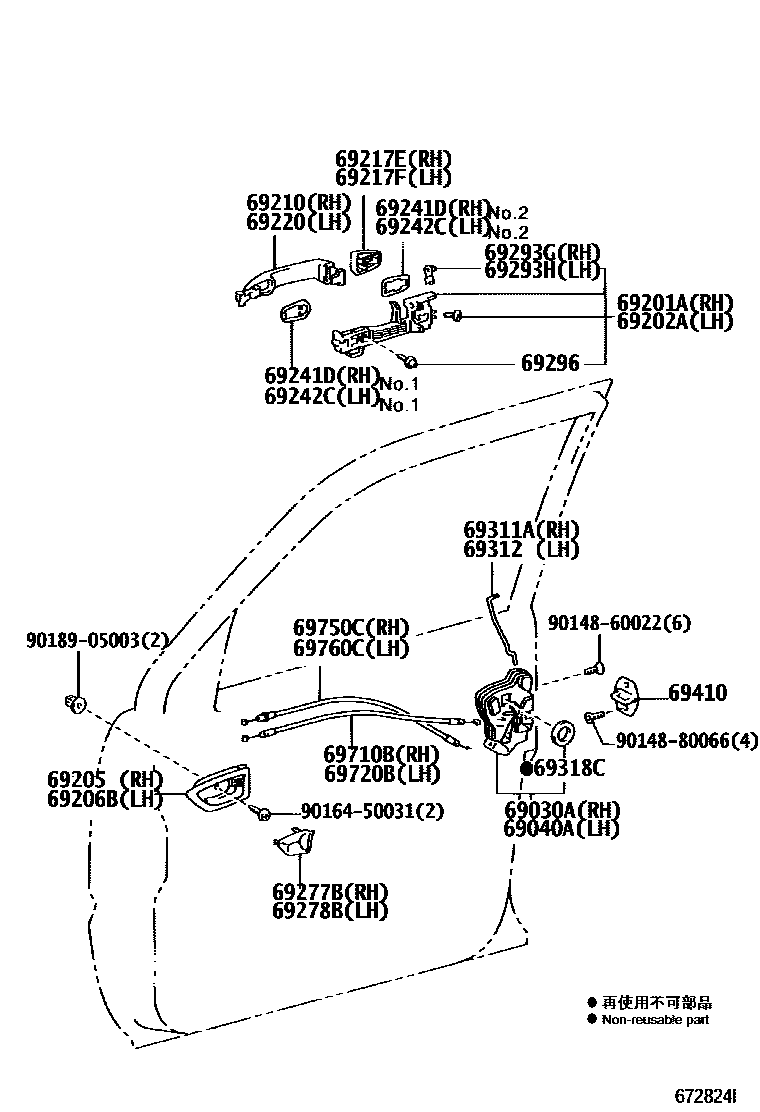

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-33241i200209
main69030-33271i200209-200609
sub69030-33272
main69030-33272i200610
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-33231i200209-200609
sub69040-33232
main69040-33232i200610
main69040-33271i200209
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-28010i200209-200908
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-28010i200209-200908
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-60090-A0i200209-200908
IVORY,TRIM0#
main69205-60090-B0i200209-200908
MD.GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-60090-A0i200209-200908
IVORY,TRIM0#
main69206-60090-B0i200209-200908
MD.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69211-28070-A2i200209-200908
WHITE,056
sub69211-28070
main69211-28070-B0i200209-200908
SILVER ME.,1D4
sub69211-28070
main69211-28070-B4i200209-200908
DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-C1i200301-200408
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69211-28070
main69211-28070-C1i200408-200908
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6
sub69211-28070
main69211-28070-C1i200209-200212
BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69211-28070
main69211-28070-D3i200209-200908
DARK RED MC.,3Q8
sub69211-28070
main69211-28070-E1i200508-200908
BEIGE ME.,4R4
sub69211-28070
main69211-28070-F2i200209-200508
CHAMPAGNE M.M.,587
sub69211-28070
main69211-28070-G1i200209-200908
DK.GREEN MC.,6Q7
sub69211-28070
main69211-28070-J3i200209-200508
DARK BLUE M.M.,8R4
sub69211-28070
main69211-28070-R9i200508-200908
DK.BLUE MC.,8S6
sub69211-28070
main69211-60060i200212-200301
NO PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-28010-A2i200209-200908
WHITE,056
sub69217-28010
main69217-28010-B0i200209-200908
SILVER ME.,1D4
sub69217-28010
main69217-28010-B4i200209-200908
DK.GRAY M.M.,1E9
sub69217-28010
main69217-28010-C1i200301-200408
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69217-28010
main69217-28010-C1i200209-200212
BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69217-28010
main69217-28010-C1i200408-200908
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6
sub69217-28010
main69217-28010-D3i200209-200908
DARK RED MC.,3Q8
sub69217-28010
main69217-28010-E1i200508-200908
BEIGE ME.,4R4
sub69217-28010
main69217-28010-F2i200209-200508
CHAMPAGNE M.M.,587
sub69217-28010
main69217-28010-G1i200209-200908
DK.GREEN MC.,6Q7
sub69217-28010
main69217-28010-J3i200209-200508
DARK BLUE M.M.,8R4
sub69217-28010
main69217-28010-R9i200508-200908
DK.BLUE MC.,8S6
sub69217-28010
main69217-60010i200212-200301
main69217-60020-A0i200209-200908
WHITE,056
sub69217-60020
main69217-60020-B0i200209-200908
SILVER ME.,1D4
sub69217-60020
main69217-60020-B1i200209-200908
DK.GRAY M.M.,1E9
sub69217-60020
main69217-60020-C0i200209-200212
BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69217-60020
main69217-60020-C0i200301-200408
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69217-60020
main69217-60020-C0i200408-200908
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6
sub69217-60020
main69217-60020-D1i200209-200908
DARK RED MC.,3Q8
sub69217-60020
main69217-60020-E1i200508-200908
BEIGE ME.,4R4
sub69217-60020
main69217-60020-F0i200209-200508
CHAMPAGNE M.M.,587
sub69217-60020
main69217-60020-G0i200209-200908
DK.GREEN MC.,6Q7
sub69217-60020
main69217-60020-J2i200209-200508
DARK BLUE M.M.,8R4
sub69217-60020
main69217-60020-R5i200508-200908
DK.BLUE MC.,8S6
sub69217-60020
main69217-60030i200209-200301
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-28010-A2i200209-200908
WHITE,056
sub69217-28010
main69217-28010-B0i200209-200908
SILVER ME.,1D4
sub69217-28010
main69217-28010-B4i200209-200908
DK.GRAY M.M.,1E9
sub69217-28010
main69217-28010-C1i200209-200212
BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69217-28010
main69217-28010-C1i200408-200908
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6
sub69217-28010
main69217-28010-C1i200301-200408
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69217-28010
main69217-28010-D3i200209-200908
DARK RED MC.,3Q8
sub69217-28010
main69217-28010-E1i200508-200908
BEIGE ME.,4R4
sub69217-28010
main69217-28010-F2i200209-200508
CHAMPAGNE M.M.,587
sub69217-28010
main69217-28010-G1i200209-200908
DK.GREEN MC.,6Q7
sub69217-28010
main69217-28010-J3i200209-200508
DARK BLUE M.M.,8R4
sub69217-28010
main69217-28010-R9i200508-200908
DK.BLUE MC.,8S6
sub69217-28010
main69217-60010i200212-200301
main69217-60020-A0i200209-200908
WHITE,056
sub69217-60020
main69217-60020-B0i200209-200908
SILVER ME.,1D4
sub69217-60020
main69217-60020-B1i200209-200908
DK.GRAY M.M.,1E9
sub69217-60020
main69217-60020-C0i200408-200908
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6
sub69217-60020
main69217-60020-C0i200301-200408
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69217-60020
main69217-60020-C0i200209-200212
BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69217-60020
main69217-60020-D1i200209-200908
DARK RED MC.,3Q8
sub69217-60020
main69217-60020-E1i200508-200908
BEIGE ME.,4R4
sub69217-60020
main69217-60020-F0i200209-200508
CHAMPAGNE M.M.,587
sub69217-60020
main69217-60020-G0i200209-200908
DK.GREEN MC.,6Q7
sub69217-60020
main69217-60020-J2i200209-200508
DARK BLUE M.M.,8R4
sub69217-60020
main69217-60020-R5i200508-200908
DK.BLUE MC.,8S6
sub69217-60020
main69217-60030i200209-200301
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69211-28070-A2i200209-200908
WHITE,056
sub69211-28070
main69211-28070-B0i200209-200908
SILVER ME.,1D4
sub69211-28070
main69211-28070-B4i200209-200908
DK.GRAY M.M.,1E9
sub69211-28070
main69211-28070-C1i200408-200908
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6Q7 ,8R4 ,8S6
sub69211-28070
main69211-28070-C1i200301-200408
BLACK,056 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69211-28070
main69211-28070-C1i200209-200212
BLACK,202 ,3Q8 ,587 ,6Q7 ,8R4
sub69211-28070
main69211-28070-D3i200209-200908
DARK RED MC.,3Q8
sub69211-28070
main69211-28070-E1i200508-200908
BEIGE ME.,4R4
sub69211-28070
main69211-28070-F2i200209-200508
CHAMPAGNE M.M.,587
sub69211-28070
main69211-28070-G1i200209-200908
DK.GREEN MC.,6Q7
sub69211-28070
main69211-28070-J3i200209-200508
DARK BLUE M.M.,8R4
sub69211-28070
main69211-28070-R9i200508-200908
DK.BLUE MC.,8S6
sub69211-28070
main69211-60060i200212-200301
NO PAINT REQ.
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
main69241-28060i200209-200908
NO.1
main69242-33030i200705-200908
NO.2
main69242-60030i200209-200704
NO.2
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
main69241-28060i200209-200908
NO.1
main69242-33030i200705-200908
NO.2
main69242-60030i200209-200704
NO.2
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69297-30030-A0i200209-200908
IVORY,TRIM0#
sub69297-30030
main69297-30030-B4i200209-200908
MD.GRAY,TRIM1#
sub69297-30030
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69298-30030-A0i200209-200908
IVORY,TRIM0#
sub69298-30030
main69298-30030-B4i200209-200908
MD.GRAY,TRIM1#
sub69298-30030
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i200209-200908
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i200209-200908
69296SCREW, DOOR INSIDE HANDLE
main69296-48010i200301-200908
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-60040i200209
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-60040i200209
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200209
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33010i200209
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-60010i200209
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-60010i200209
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-60020i200209
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-60020i200209
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003

29 parts on this diagram · 1 diagram in section
