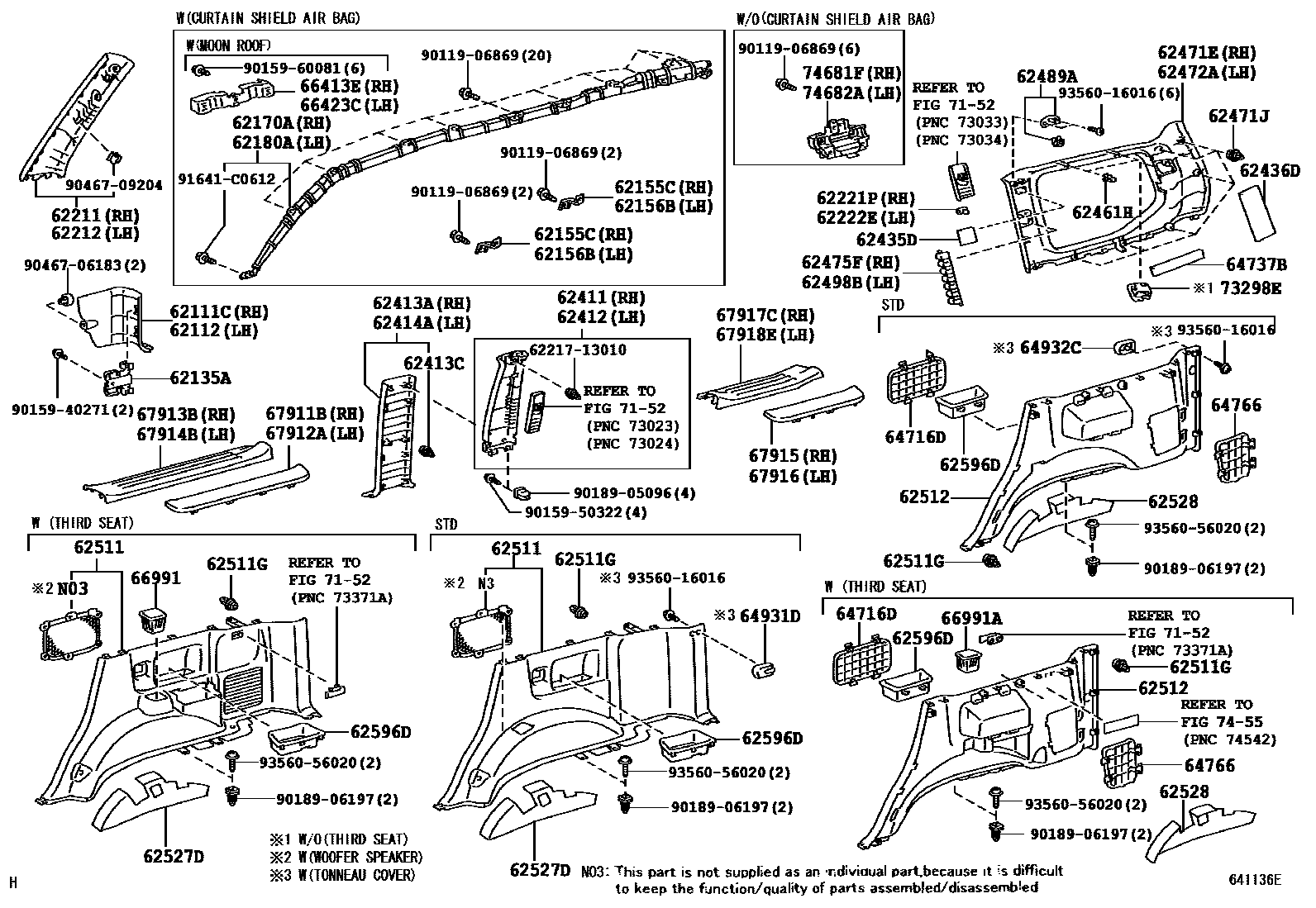

INSIDE TRIM BOARD
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62135ARETAINER, COWL SIDE COVER
RH
LH
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62221PSPACER, FRONT PILLAR, NO.1 RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
62222ESPACER, FRONT PILLAR, NO.1 LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
62411GARNISH, CENTER PILLAR, RH
62412GARNISH, CENTER PILLAR, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
62435DPAD, ROOF SIDE RAIL GARNISH, RH
62436DPAD, ROOF SIDE RAIL GARNISH, LH
REAR SEAT-REMOVABLE
REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471EGARNISH, ROOF SIDE, INNER UPPER RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
MD.GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
62475FPAD, ROOF SIDE INNER GARNISH, NO.1
62489ACLIP, ROOF SIDE INNER GARNISH
AIR CONDITIONER-DUAL AUTO&REAR SEAT-REMOVABLE&SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN
62498BPAD, ROOF SIDE INNER GARNISH, NO.2
62511BOARD, QUARTER INSIDE TRIM, RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
MD.GRAY,TRIM1#
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
62512BOARD, QUARTER INSIDE TRIM, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
MD.GRAY,TRIM1#
62527DPAD, QUARTER TRIM, LOWER RH
62528PAD, QUARTER TRIM, LOWER LH
62596DTRAY, QUARTER TRIM POCKET
64716DCOVER, DECK TRIM, REAR
IVORY,TRIM0#
MD.GRAY,TRIM1#
64737BPAD, DECK TRIM SIDE RH SILENCER
64766COVER SUB-ASSY, QUARTER TRIM JACK
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
MD.GRAY,TRIM1#
64931DHANGER, TONNEAU COVER, RH
64932CHANGER, TONNEAU COVER, LH
66413ESPACER, SIDE RAIL, FRONT RH
66423CSPACER, SIDE RAIL, FRONT LH
66991HOLDER, QUARTER TRIM CUP, RH
66991AHOLDER, QUARTER TRIM CUP, LH
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913BPLATE, FRONT DOOR SCUFF, RH
67914BPLATE, FRONT DOOR SCUFF, LH
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
IVORY,TRIM0#
MD.GRAY,TRIM1#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
67917CPLATE, REAR DOOR SCUFF, RH
67918EPLATE, REAR DOOR SCUFF, LH
7152
73298ECOVER, QUARTER TRIM BELT HOLE, NO.1
IVORY,TRIM0#,RH
MD.GRAY,TRIM1#,RH
IVORY,TRIM0#,LH
MD.GRAY,TRIM1#,LH
7455
74681FRETAINER, ASSIST GRIP, RH
74682ARETAINER, ASSIST GRIP, LH
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
9011906869
main90119-06869
9015940271
main90159-40271
9015950322
main90159-50322
9015960081
main90159-60081
9018905096
main90189-05096
9018906197
main90189-06197
9046706183
main90467-06183
9046709204
main90467-09204
91641C0612
main91641-C0612
9356016016
main93560-16016
9356056020
main93560-56020
65 parts on this diagram · 2 diagrams in section
