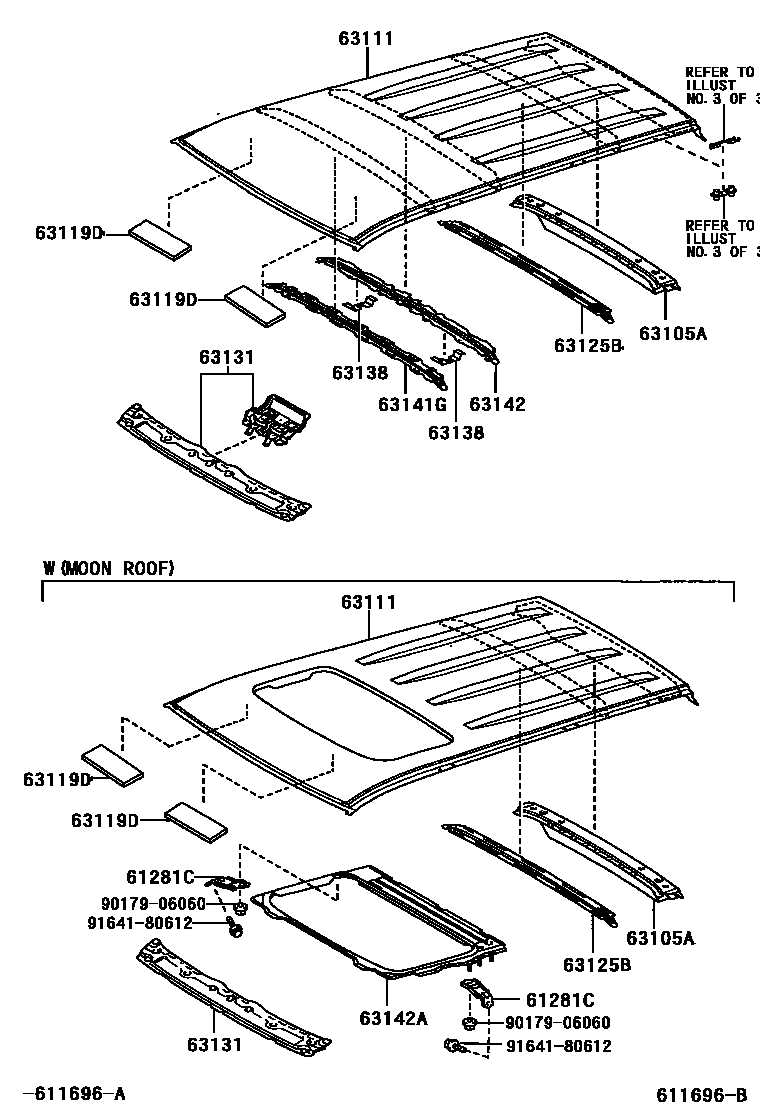

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-60030iGRJ12#,KDJ12#200209

W/MOON ROOF

main61281-60030iGRJ120,KDJ120200209

W/MOON ROOF&REAR SEAT-REMOVABLE

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60240iGRJ120,KDJ120200209-200908

REAR SEAT-REMOVABLE

main63105-60240iGRJ120,KDJ120200209-200908

W/MOON ROOF&REAR SEAT-REMOVABLE

main63105-60250iGRJ12#,KDJ12#200209-200908

63111PANEL, ROOF

main63111-60480iGRJ120,KDJ120200209

main63111-60500iGRJ120,KDJ120200209

W/MOON ROOF

main63111-60500iGRJ120,KDJ120200209

W/MOON ROOF&REAR SEAT-REMOVABLE

main63111-60530iGRJ125,KDJ125200209

main63111-60540iGRJ125,KDJ125200209

W/MOON ROOF

63119DPAD, ROOF PANEL, NO.1

main63119-35010iGRJ12#,KDJ12#200209

63125BREINFORCEMENT, ROOF PANEL, FRONT

main63125-60040iGRJ120,KDJ120200209

main63125-60050iGRJ125,KDJ125200209

63131PANEL, WINDSHIELD HEADER, OUTER

main63102-60080iGRJ12#,KDJ12#200209-200311

sub63102-60081

main63102-60081iGRJ12#,KDJ12#200311-200908

main63103-60030iGRJ120,KDJ120200209-200311

W/MOON ROOF

sub63103-60031

main63103-60030iGRJ12#,KDJ12#200209-200311

W/MOON ROOF&REAR SEAT-REMOVABLE

sub63103-60031

main63103-60031iGRJ12#,KDJ12#200311-200908

W/MOON ROOF

main63103-60031iGRJ12#,KDJ12#200311-200908

W/MOON ROOF&REAR SEAT-REMOVABLE

63138BRACKET, DOME LAMP, NO.2

main63138-12011iGRJ12#,KDJ12#200209

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60080iGRJ12#,KDJ12#200209

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-60040iGRJ12#,KDJ12#200209

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-60901iGRJ12#,KDJ12#200209

W/MOON ROOF

main63142-60901iGRJ12#,KDJ12#200209

W/MOON ROOF&REAR SEAT-REMOVABLE

9017906060

main90179-06060

9164180612

main91641-80612

12 parts on this diagram · 3 diagrams in section
