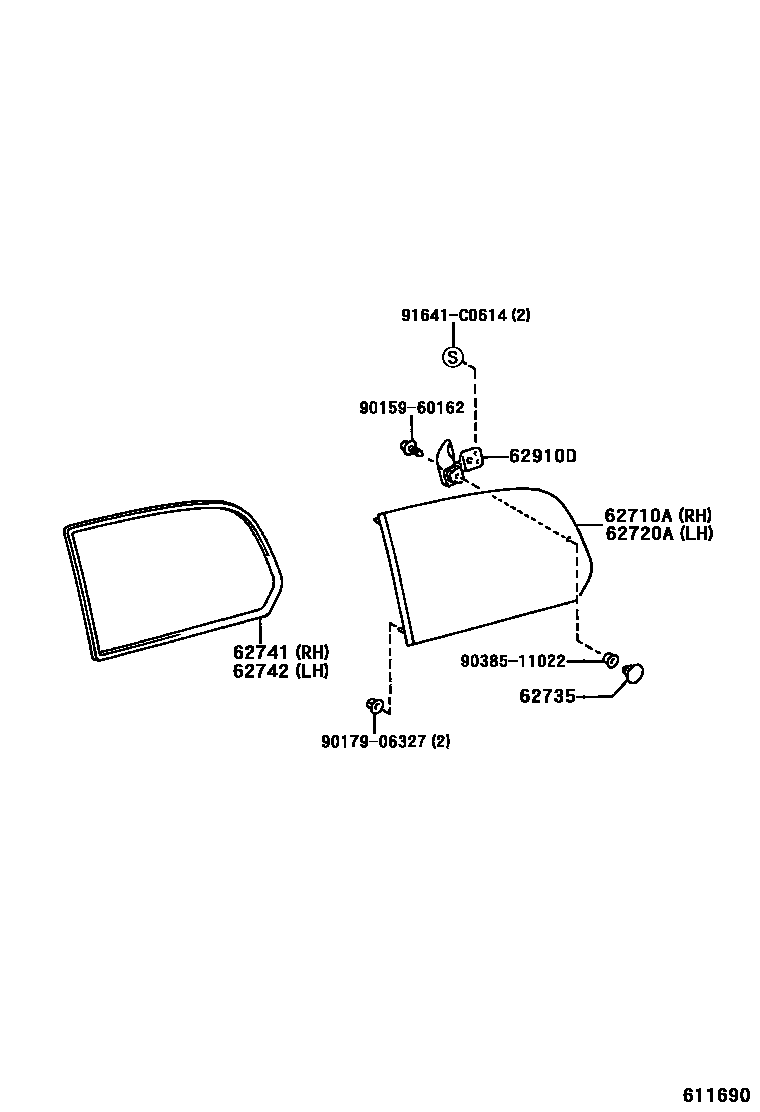

SIDE WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-60880iKDJ120200209-200212

*TT,T=3.1,GREEN

sub62710-60881

main62710-60881iGRJ120,KDJ120200212-200408

*TT,T=3.1,GREEN

main62710-6A011iGRJ120,KDJ120200408

*UVCTT,T=3.1,GREEN

main62710-6A070iGRJ125,KDJ125200209-200408

*TT,T=4.0,GREEN

main62710-6A080iGRJ125,KDJ125200408

*UVCTT,T=4.0,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-60650iKDJ120200209-200212

*TT,T=3.1,GREEN

sub62720-60651

main62720-60651iGRJ120,KDJ120200212-200408

*TT,T=3.1,GREEN

main62720-60791iGRJ120,KDJ120200408

*UVCTT,T=3.1,GREEN

main62720-60840iKDJ125200209-200212

*TT,T=4.0,GREEN

sub62720-60841

main62720-60841iGRJ125,KDJ125200212-200408

*TT,T=4.0,GREEN

main62720-60861iGRJ125,KDJ125200408

*UVCTT,T=4.0,GREEN

62735RETAINER, QUARTER WINDOW HINGE

main62735-28040iGRJ12#,KDJ12#200209

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-60110iGRJ120,KDJ120200209-200308

sub62741-60111

main62741-60111iGRJ120,KDJ120200308

main62741-60120iGRJ125,KDJ125200209-200308

sub62741-60121

main62741-60121iGRJ125,KDJ125200308

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-60100iGRJ120,KDJ120200209-200308

sub62742-60101

main62742-60101iGRJ120,KDJ120200308

main62742-60110iGRJ125,KDJ125200209-200308

sub62742-60111

main62742-60111iGRJ125,KDJ125200308

62910DLOCK ASSY, QUARTER WINDOW

main62910-60060-A0iGRJ12#,KDJ12#200209-200908

IVORY,TRIM0#

main62910-60060-B0iGRJ12#,KDJ12#200209-200908

MD.GRAY,TRIM1#

9015960162

main90159-60162

9017906327

main90179-06327

9038511022

main90385-11022

91641C0614

main91641-C0614

10 parts on this diagram · 1 diagram in section
