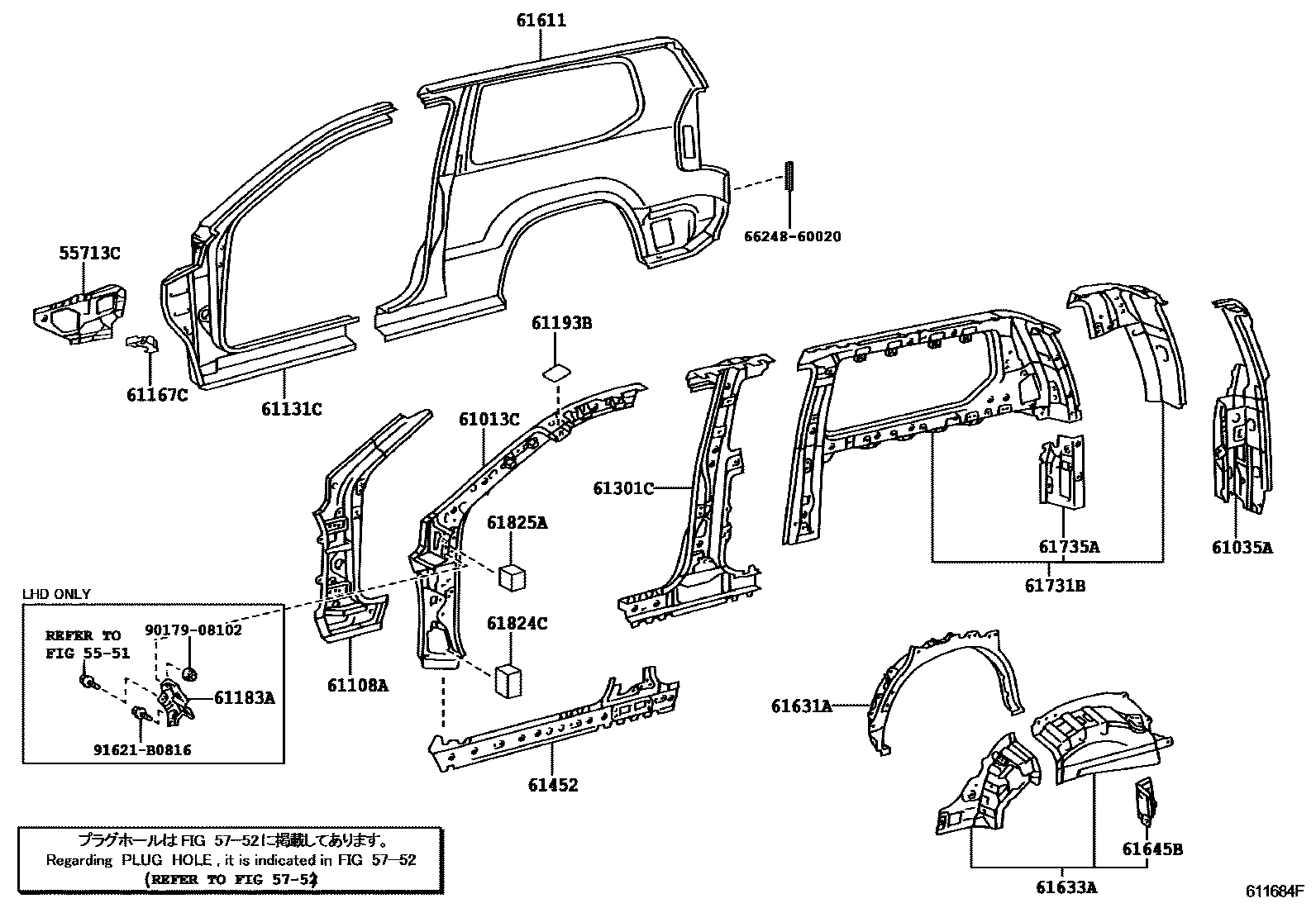

SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0004 1LH

5551

55713CPANEL, COWL TOP SIDE, RH

main55713-60060iGRJ12#,KDJ12#200209

5752

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-60010iGRJ120,KDJ120200209-200908

main61013-60020iGRJ125,KDJ125200209-200908

61035AREINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH

main61033-60110iGRJ120,KDJ120200209

main61033-60120iGRJ125,KDJ125200209

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-60060iGRJ12#,KDJ12#200209

sub61108-60902

61131CPILLAR, FRONT BODY, OUTER RH

main61027-60430supersedes 61027-60440iGRJ120,KDJ120200209-200304

OVER FENDER & CHROME PLATED SPEC

main61027-60431supersedes 61027-60441iGRJ120,KDJ120200707

OVER FENDER & SMOKE GLASS SPEC

main61027-60450supersedes 61027-60460iGRJ125,KDJ125200209-200304

OVER FENDER & CHROME PLATED SPEC

main61027-60451supersedes 61027-60461iGRJ125,KDJ125200304

OVER FENDER & CHROME PLATED SPEC

61167CBRACKET, FRONT BODY PILLAR TO COWL TOP, RH

main61167-60060iGRJ12#,KDJ12#200209

61183ABRACKET, INSTRUMENT PANEL SIDE, NO.2 RH

main61183-35040iGRJ12#,KDJ12#..LHD200209-200908

61193BCOVER, FRONT PILLAR SERVICE HOLE

main61193-60030×2iGRJ12#,KDJ12#200209

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-60900iGRJ120,KDJ120200209

sub61301-60903

main61301-60901iGRJ125,KDJ125200209

61452PANEL, ROCKER INNER, FRONT RH

main61452-60020iGRJ12#,KDJ12#200209

61611PANEL, QUARTER, RH

main60161-60780supersedes 60161-60790iGRJ120,KDJ120200707

OVER FENDER & SMOKE GLASS SPEC

main60161-60810supersedes 60161-60820iGRJ125,KDJ125200209

OVER FENDER & CHROME PLATED SPEC

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-60909iGRJ120,KDJ120200209-200908

main61631-60910supersedes 61631-60060iGRJ125,KDJ125200209-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-60903iGRJ125,KDJ125200209

sub61633-60902

sub90333-40001

main61633-60901supersedes 61633-60900iGRJ120,KDJ120200209

REAR SEAT-REMOVABLE

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-60050iGRJ12#,KDJ12#200209

61731BPANEL, ROOF SIDE, INNER RH

main61705-60750iGRJ120,KDJ120200209-200607

main61705-60751iGRJ120,KDJ120200608-200908

sub61705-60911

main61705-60790supersedes 61705-60780iGRJ125,KDJ125200209-200607

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main61705-60791supersedes 61705-60781iGRJ125,KDJ125200608-200908

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-60050iGRJ12#,KDJ12#200209-200607

main61735-60051iGRJ12#,KDJ12#200608

61824CPAD, NOISE SHUTTER, NO.1

main61824-35020×2iGRJ12#,KDJ12#200209

61825APLATE, NOISE CONTROL, NO.2

main61825-35010×2iGRJ12#,KDJ12#200209

6624860020PROTECTOR, REAR BODY SIDE PANEL, RH

main66248-60020

9017908102

main90179-08102

91621B0816

main91621-B0816

23 parts on this diagram · 4 diagrams in section
