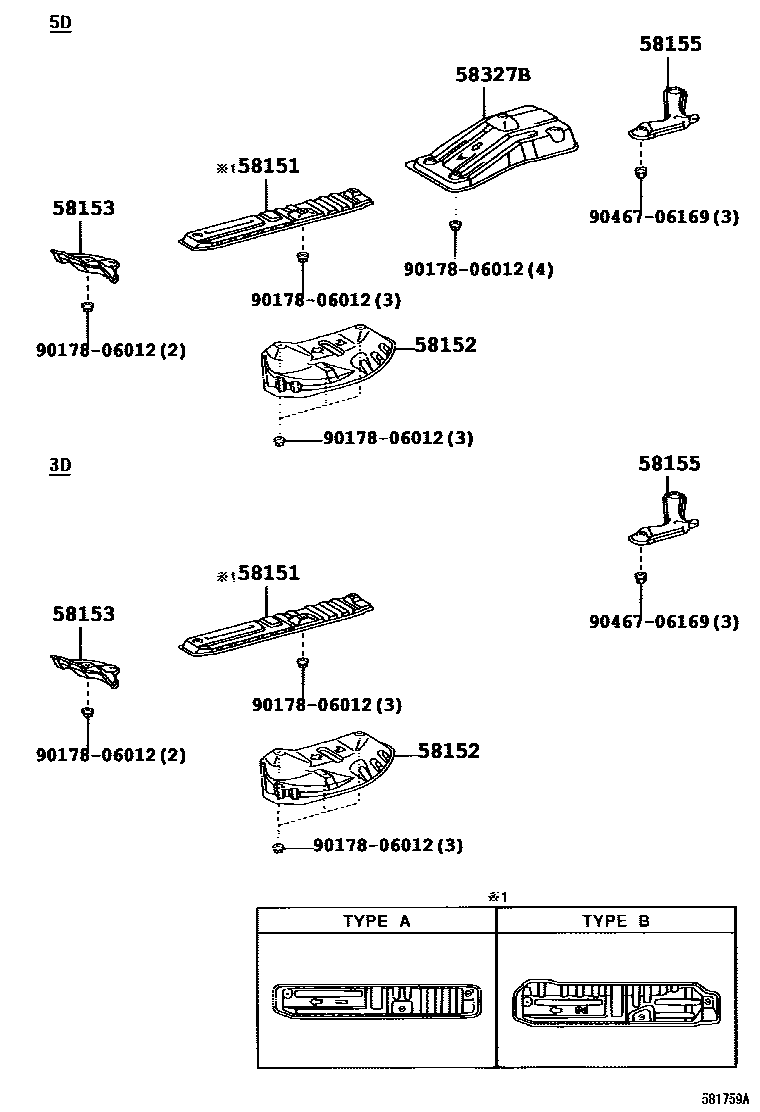

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-35120iGRJ12#,KDJ12#200209

TYPE A:REFER ILLUST.

sub58151-35121

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-35010iGRJ12#200301

sub58152-35020

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-35130iGRJ12#,KDJ12#200209

sub58153-60130

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-35020iGRJ12#,KDJ12#200209

sub58155-60100

sub90178-06012

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-35050iGRJ120,KDJ120200209

9017806012

main90178-06012

9046706169

main90467-06169

7 parts on this diagram · 1 diagram in section
