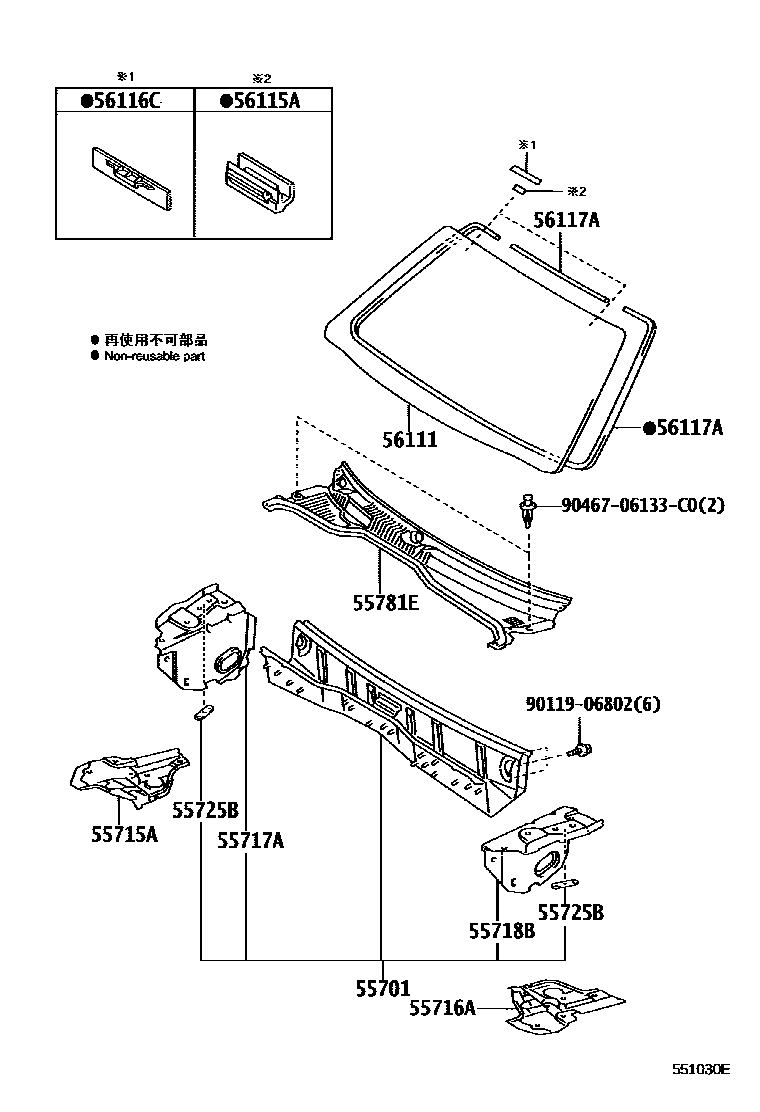

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-6A830iGRJ120,KDJ12#..RHD..ATM200209-200908

sub55700-6A840

main55700-6A850iGRJ12#,KDJ12#..LHD..ATM200209-200908

sub55700-6A880

main55700-6A860iKDJ12#..LHD..MTM200209-200908

sub55700-6A880

main55700-6A890iKDJ12#..RHD..MTM200209-200908

sub55700-6B010

55715ABRACE, COWL TOP TO APRON, RH

main55715-60030iGRJ12#,KDJ12#200209-200908

55716ABRACE, COWL TOP TO APRON, LH

main55716-60030iGRJ12#,KDJ12#200209-200908

55717APANEL, COWL TOP SIDE, INNER RH

main55717-60040iGRJ12#,KDJ12#200209

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-60050iGRJ12#,KDJ12#200209

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010iGRJ12#,KDJ12#200209-200908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60030iGRJ120,KDJ12#..RHD200209-200402

sub55708-60031

main55708-60031iGRJ120,KDJ12#..RHD200402

main55708-60050iGRJ12#,KDJ12#..LHD200209-200308

sub55708-60051

main55708-60051iGRJ12#,KDJ12#..LHD200308

56111GLASS, WINDSHIELD

main56111-60450iKDJ12#200209-200212

*LAM,T=5.3,GREEN

sub56111-60451

main56111-60451iGRJ12#;KDJ12#..4FC,5F200212

*LAM,T=5.3,GREEN

main56111-60451iKDJ12#..5FC,6F200212-200608

*LAM,T=5.3,GREEN,W/O(TOP SHADE)

main56111-60650iKDJ12#200608

*LAM,T=5.4,GREEN,W(TOP SHADE)

sub56111-60651

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iGRJ12#,KDJ12#200209

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGRJ12#,KDJ12#200209

56117ADAM, WINDOW GLASS ADHESIVE

main56117-60080iGRJ12#,KDJ12#200209

L=812

sub56117-74010

main56117-60090iGRJ12#,KDJ12#200209

L=3106

sub56117-64010

9011906802

main90119-06802

9046706133C0

main90467-06133C0

13 parts on this diagram · 1 diagram in section
