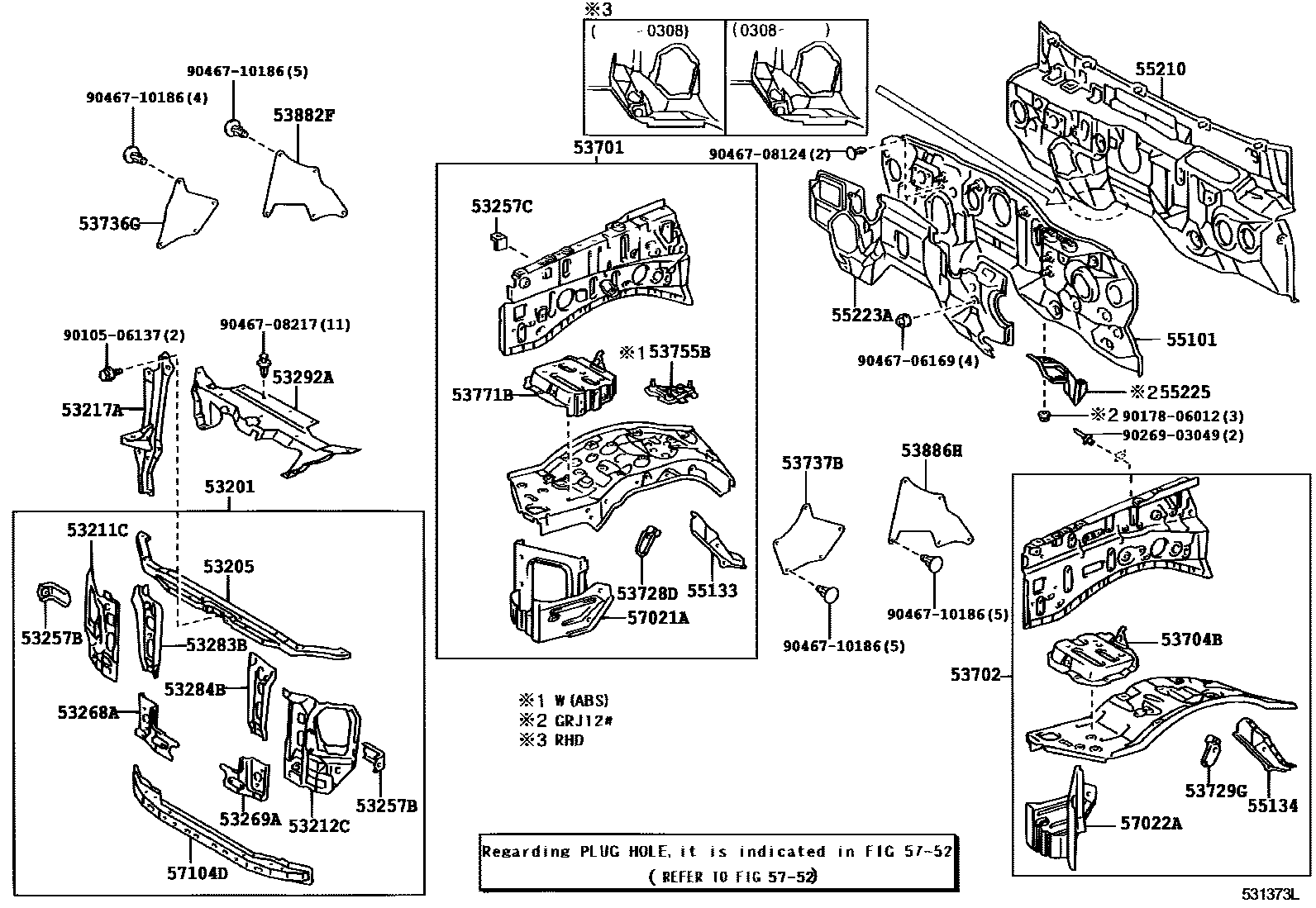

FRONT FENDER APRON & DASH PANEL
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53257CBRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2
COLD SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
53292ASEAL, RADIATOR SUPPORT, UPPER
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-60A21
sub53701-60821
sub53701-60A31
sub53701-60831
sub53701-60A11
sub53701-60A12
sub53701-60A32
sub53701-60A43
53702APRON SUB-ASSY, FRONT FENDER, LH
sub53702-6A051
sub53702-6A052
sub53702-6A131
sub53702-6A133
sub53702-6A133
53728DBRACKET, FENDER APRON, RH
53729GBRACKET, FENDER APRON, LH
53736GSEAL, FRONT FENDER APRON, FRONT RH
sub53735-35151
53737BSEAL, FRONT FENDER APRON, LH
sub53736-35151
53771BSUPPORT, BATTERY CARRIER, RH
53882FSEAL, FRONT FENDER
53886HSHIELD, FRONT FENDER SPLASH, REAR LH
55101PANEL SUB-ASSY, DASH
sub55101-60A31
sub55101-60A61
sub55101-6E041
sub55101-6E091
sub55101-6E101
sub55101-6E160
sub55101-6E201
sub55101-60B20
sub55101-6E320
sub55101-6E322
sub55101-6E323
55210INSULATOR ASSY, DASH PANEL
sub55210-60132
sub55210-60141
sub55210-60153
sub55210-60152
sub55210-60153
sub55210-60154
sub55210-60163
sub55210-60162
sub55210-60163
sub55210-60164
55223AINSULATOR, DASH PANEL, OUTER
sub55223-35071
sub55223-35072
sub55223-35073
sub55223-35081
sub55223-35082
sub55223-35083
sub55223-35084
sub55223-60322
sub55223-60323
sub55223-60331
sub55223-60332
55225INSULATOR, DASH PANEL HEAT
sub55225-35171
57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
5752
9010506137
main90105-06137
9017806012
main90178-06012
9026903049
main90269-03049
9046706169
main90467-06169
9046708124
main90467-08124
9046708217
main90467-08217
9046710186
main90467-10186
40 parts on this diagram · 2 diagrams in section
