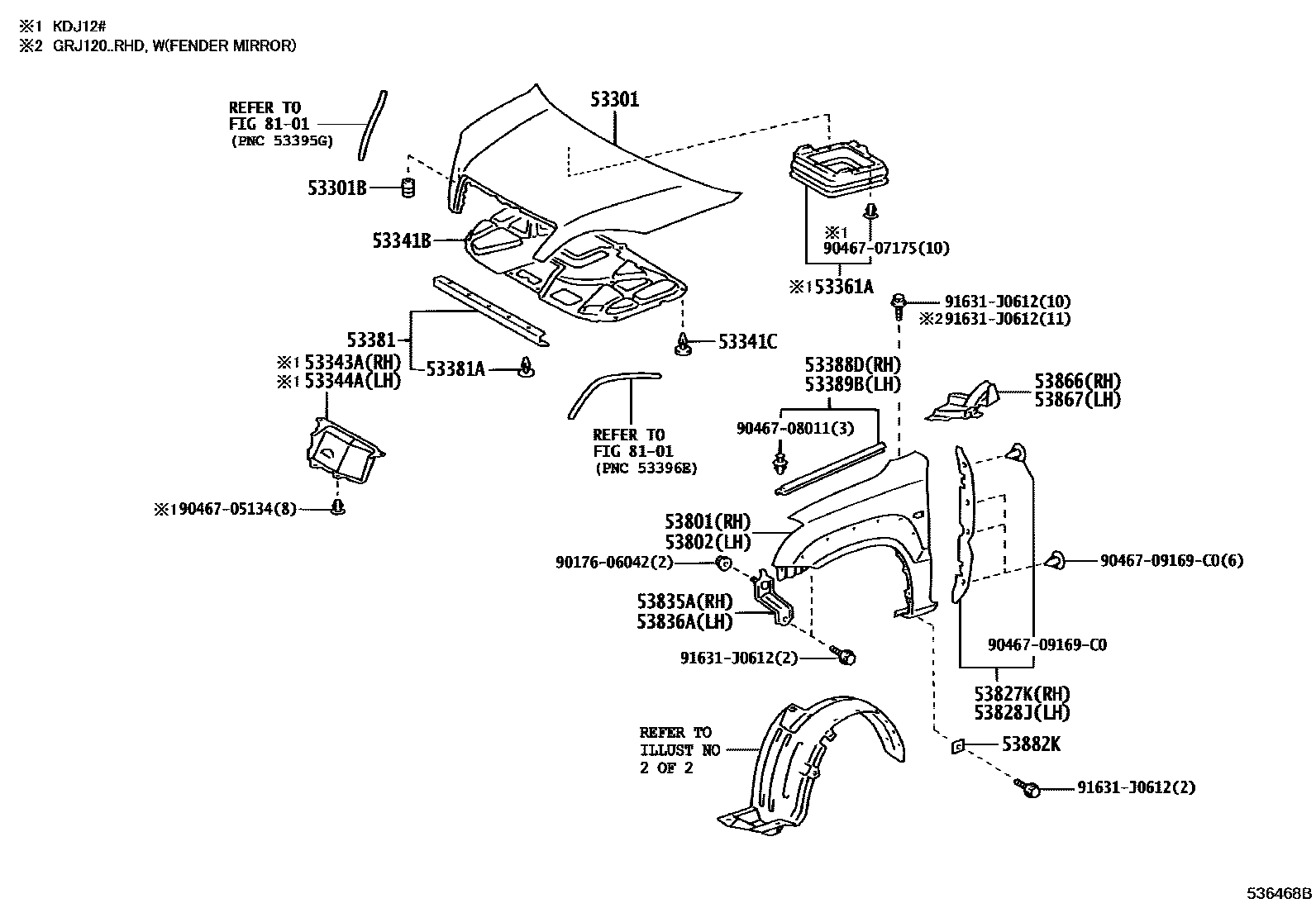

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-60470iGRJ12#,KDJ12#200209-200908

53301BCUSHION, HOOD BUMPER

main90541-15004iGRJ12#,KDJ12#200508

main90541-15024iGRJ12#,KDJ12#200209-200507

53341BINSULATOR, HOOD

main53341-60240iGRJ12#200301

main53341-60260iKDJ12#200209

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGRJ12#,KDJ12#200209

53343ABRACKET, AIR DEFLECTOR, NO.1 RH

main53343-60020iKDJ12#200209

53344ABRACKET, AIR DEFLECTOR, NO.1 LH

main53344-60020iKDJ12#200209

53361AWEATHERSTRIP, HOOD

main53361-60030iKDJ12#200209

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60050iGRJ12#,KDJ12#200209

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGRJ12#,KDJ12#200209

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60010iGRJ12#,KDJ12#200209-200408

sub53388-60012

main53388-60011iGRJ12#,KDJ12#200408-200409

sub53388-60012

main53388-60012iGRJ12#,KDJ12#200410

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-60010iGRJ12#,KDJ12#200209-200408

sub53389-60011

main53389-60011iGRJ12#,KDJ12#200408

53801FENDER SUB-ASSY, FRONT RH

main53801-60860iGRJ12#,KDJ12#200209-200908

53802FENDER SUB-ASSY, FRONT LH

main53802-6A180iGRJ12#,KDJ12#200209-200908

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60010iGRJ12#,KDJ12#200209

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60030iGRJ12#,KDJ12#200209

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-60050iGRJ12#,KDJ12#200209-200908

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-60050iGRJ12#,KDJ12#200209-200908

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-60030iGRJ12#,KDJ12#200209

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-60040iGRJ12#,KDJ12#200209

53882KSEAL, FRONT FENDER

main53882-16030iGRJ12#,KDJ12#200209-200908

8101

9017606042

main90176-06042

9046705134

main90467-05134

9046707175

main90467-07175

9046708011

main90467-08011

9046709169C0

main90467-09169C0

91631J0612

main91631-J0612

27 parts on this diagram · 2 diagrams in section
