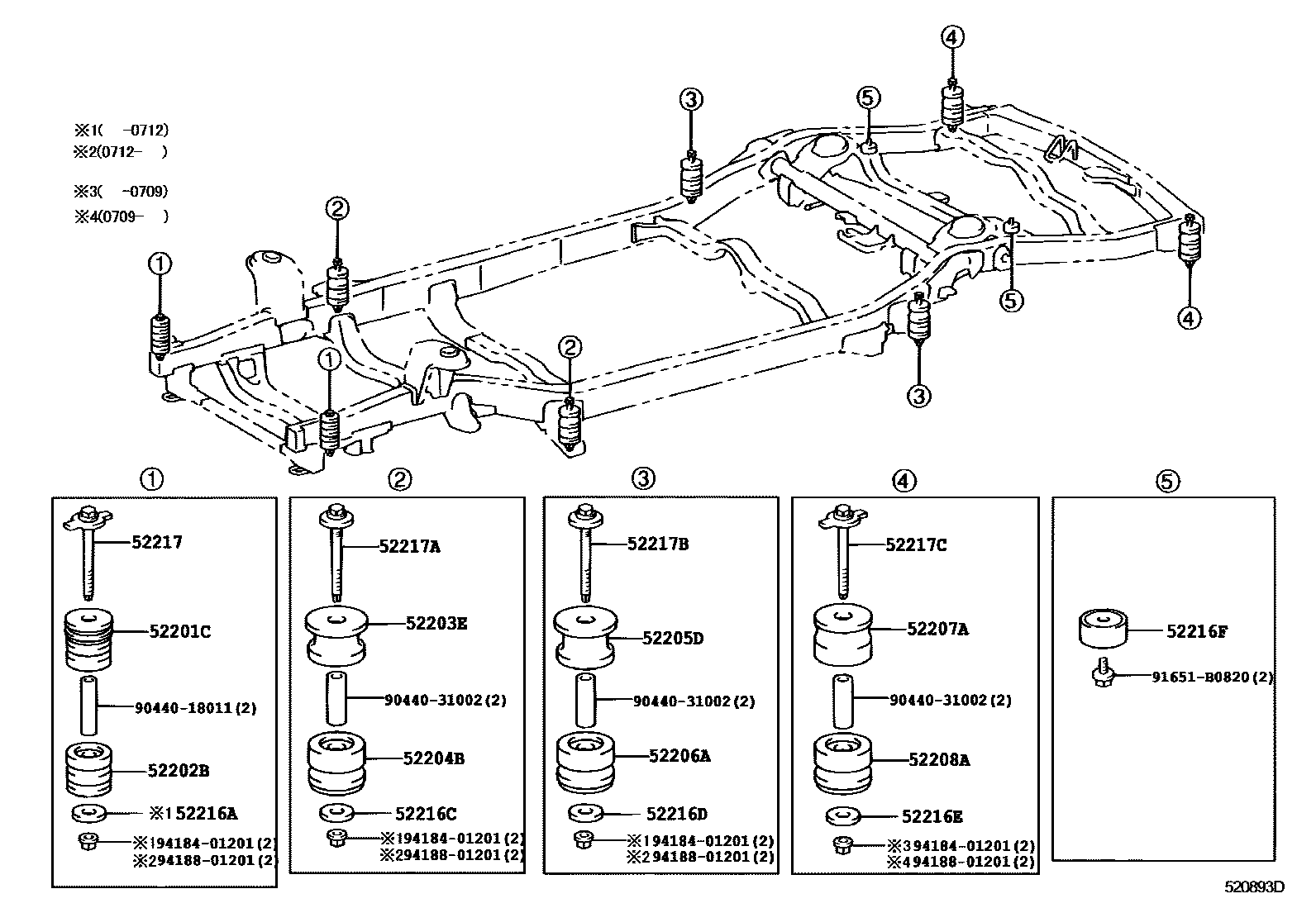

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-35100iGRJ12#,KDJ12#200209

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-35090iGRJ12#,KDJ12#200209

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-35210iGRJ12#,KDJ12#200209

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35120iGRJ12#,KDJ12#200209

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-35160iGRJ12#,KDJ12#200209

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-35040iGRJ12#,KDJ12#200209

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-35050iGRJ12#,KDJ12#200209

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-35050iGRJ12#,KDJ12#200209

52216ASTOPPER, CAB MOUNTING CUSHION

main90201-12078iGRJ12#,KDJ12#200209-200712

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-60040iGRJ12#,KDJ12#200712

main90201-12078iGRJ12#,KDJ12#200209-200712

52216DSTOPPER, CAB MOUNTING CUSHION

main52216-60040iGRJ12#,KDJ12#200712

main90201-12078iGRJ12#,KDJ12#200209-200712

52216ESTOPPER, CAB MOUNTING CUSHION

main52216-60040iGRJ12#,KDJ12#200709

main90201-12078iGRJ12#,KDJ12#200209-200709

52216FSTOPPER, CAB MOUNTING CUSHION

main52216-60010iGRJ120,KDJ120200209

52217BOLT, BODY MOUNTING

main52217-35180iGRJ12#,KDJ12#200209

52217ABOLT, BODY MOUNTING

main52217-35190iKDJ12#200209-200211

sub52217-35191

main52217-35191iGRJ12#,KDJ12#200211

52217BBOLT, BODY MOUNTING

main52217-35190iKDJ12#200209-200211

sub52217-35191

main52217-35191iGRJ12#,KDJ12#200211

52217CBOLT, BODY MOUNTING

main52217-35180iGRJ12#,KDJ12#200209

9044018011

main90440-18011

9044031002

main90440-31002

91651B0820

main91651-B0820

9418401201

main94184-01201

9418801201

main94188-01201

22 parts on this diagram · 2 diagrams in section
