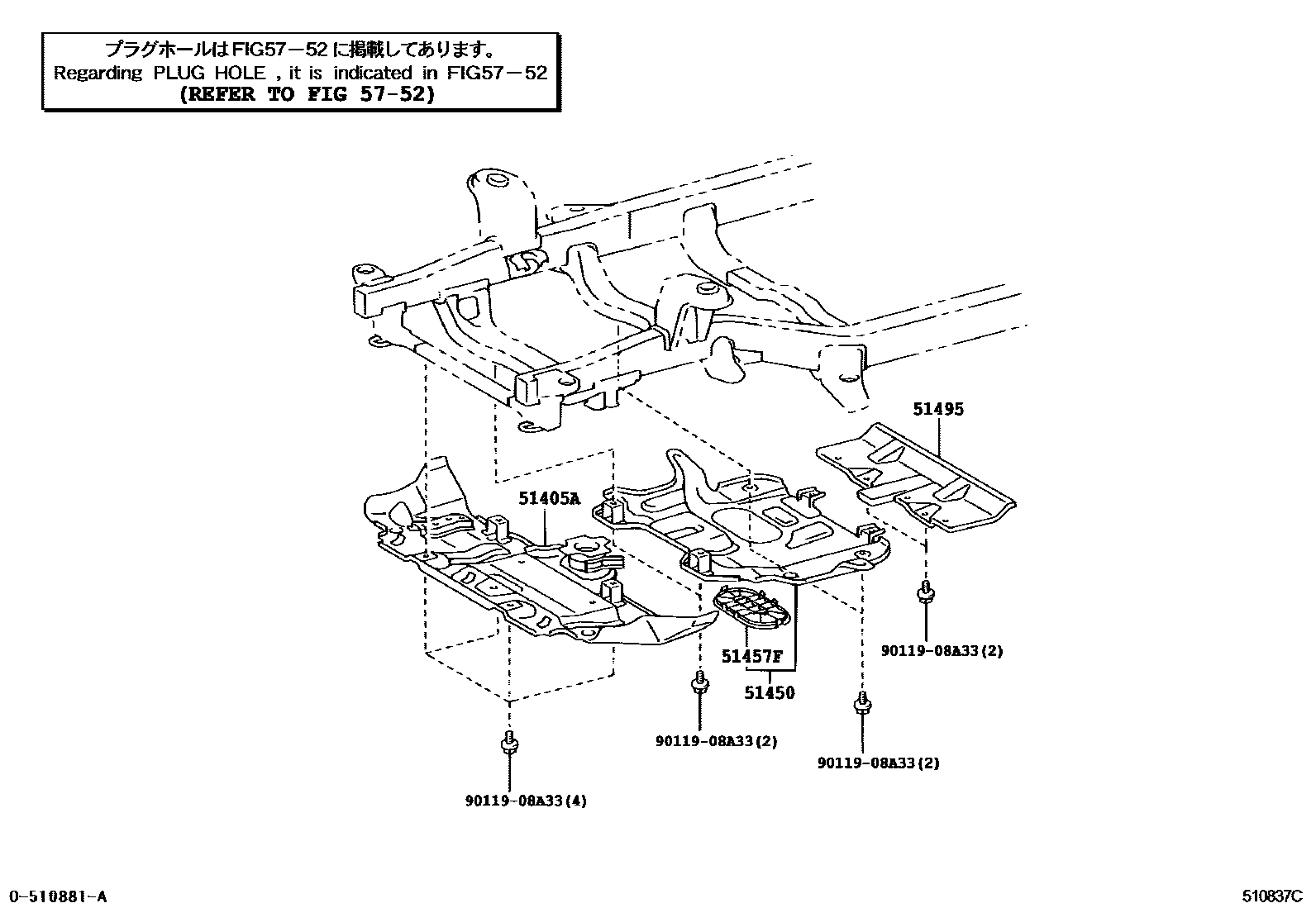

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35100iGRJ12#,KDJ12#200209-200310

sub51405-35101

main51405-35101iKDJ12#..5FC,6F200310-200607

main51440-35011iKDJ12#200607

51450COVER ASSY, ENGINE UNDER, REAR

main51450-35010iKDJ12#..5FC,6F200209-200607

main51450-35020iKDJ12#200607

51457FSEAL, ENGINE UNDER COVER

main51457-35030iGRJ12#,KDJ12#200209

51495COVER, TRANSMISSION UNDER

main51495-35050iGRJ12#,KDJ12#200209

9011908A33

main90119-08A33

5 parts on this diagram · 1 diagram in section
