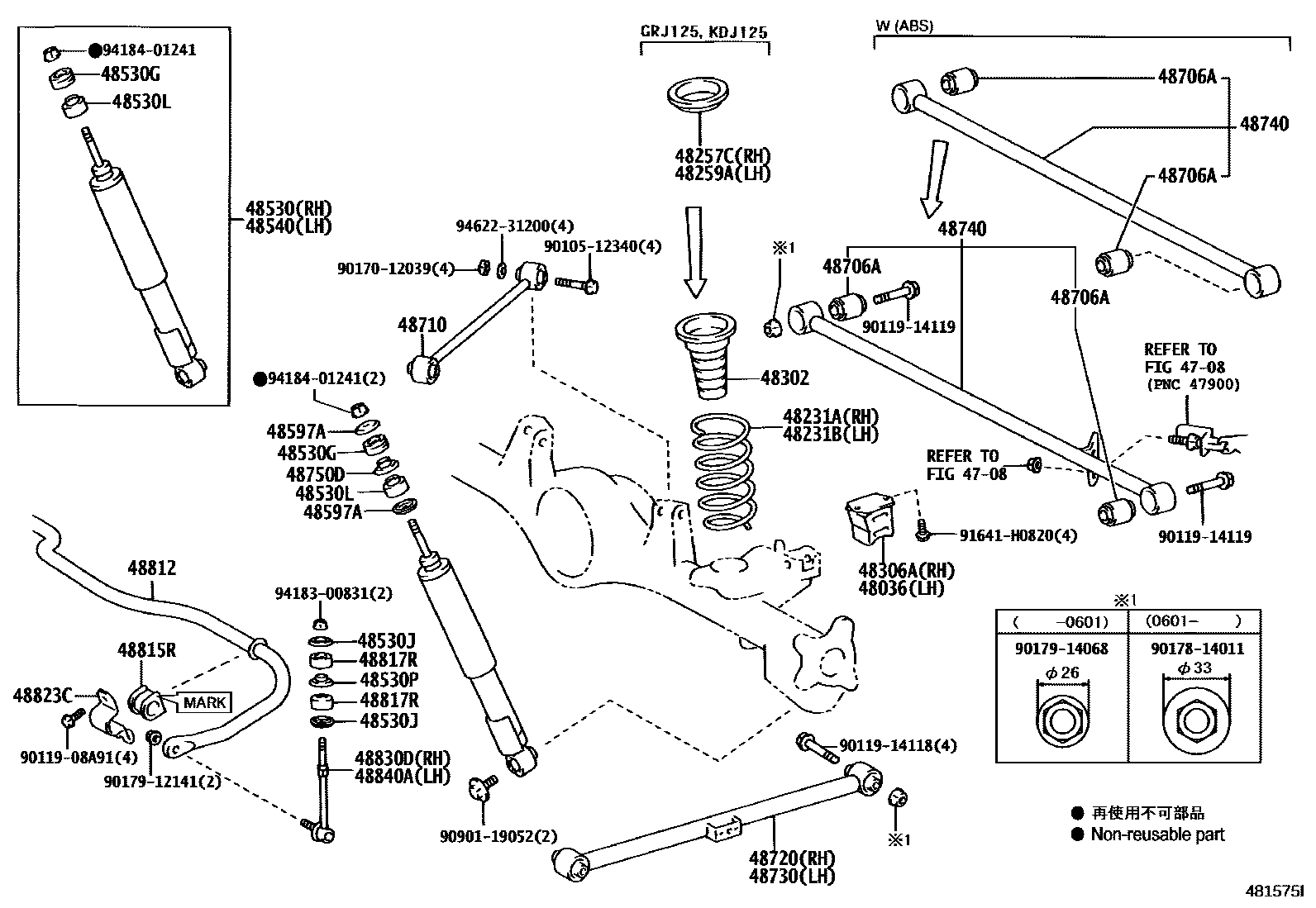

REAR SPRING & SHOCK ABSORBER
4708
48036BUMPER SUB-ASSY, REAR SPRING, LH
REAR SUSPENSION-WITH(AIR SUSPENSION)
48231ASPRING, COIL, REAR RH
TEMS
REAR SUSPENSION-WITH(AIR SUSPENSION)
REAR SEAT-REMOVABLE
48231BSPRING, COIL, REAR LH
REAR SUSPENSION-WITH(AIR SUSPENSION)
TEMS
REAR SEAT-REMOVABLE
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48302SPRING SUB-ASSY, HOLLOW
48306ABUMPER SUB-ASSY, REAR SPRING, RH
REAR SUSPENSION-WITH(AIR SUSPENSION)
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60070,REAR SUSPENSION-WITH(AIR SUSPENSION)
sub48530-69485
MARK 48530-60062
MARK 48530-60093
MARK 48530-60071,REAR SUSPENSION-WITH(AIR SUSPENSION)
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530LCUSHION, REAR SHOCK ABSORBER, NO.3
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60070,REAR SUSPENSION-WITH(AIR SUSPENSION)
sub48530-69485
MARK 48530-60062
MARK 48530-60093
MARK 48530-60071,REAR SUSPENSION-WITH(AIR SUSPENSION)
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
TEMS
REAR SUSPENSION-WITH(AIR SUSPENSION)
48706ABUSH SUB-ASSY, REAR LATERAL CONTROL ROD
48710ARM ASSY, UPPER CONTROL
TEMS&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),RH
TEMS&ABS-WITH,RH
REAR SUSPENSION-WITH(AIR SUSPENSION),RH
TEMS&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),LH
TEMS&ABS-WITH,LH
REAR SUSPENSION-WITH(AIR SUSPENSION),LH
48740ROD ASSY, REAR LATERAL CONTROL
ABS-WITH
ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
TEMS&ABS-WITH
TEMS&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
48750DRETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48812BAR, STABILIZER, REAR
DIFFERENTIAL LOCK-WITH
48815RBUSH, STABILIZER(FOR REAR)
DIFFERENTIAL LOCK-WITH,MARK 19
MARK 19
MARK 20
MARK 21
48817RCUSHION, STABILIZER(FOR REAR)
48823CCOVER, REAR STABILIZER BRACKET
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010512340
main90105-12340
9011908A91
main90119-08A91
9011914118
main90119-14118
9011914119
main90119-14119
9017012039
main90170-12039
9017814011
main90178-14011
9017912141
main90179-12141
9017914068
main90179-14068
9090119052
main90901-19052
91641H0820
main91641-H0820
9418300831
main94183-00831
9418401241
main94184-01241
9462231200
main94622-31200
40 parts on this diagram · 2 diagrams in section
