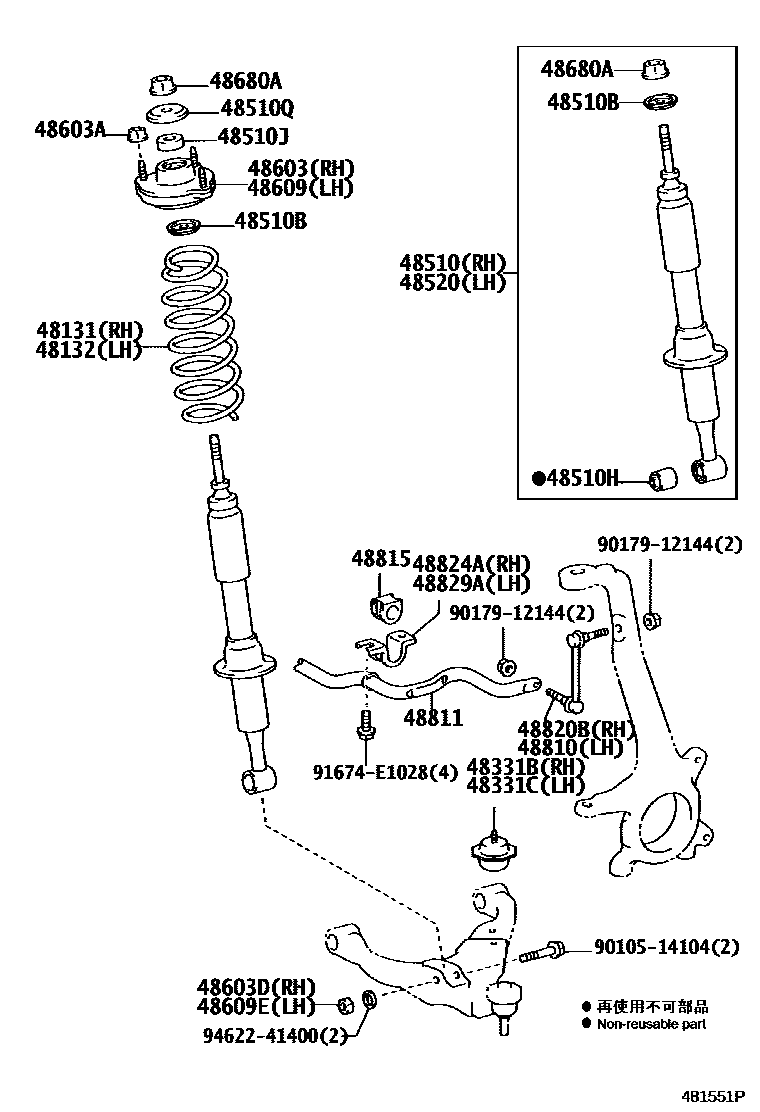

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1W(TEMS) OR W(AIR SUSPENSION)

48131SPRING, FRONT COIL, RH

main48131-60B80iGRJ125200702

main48131-60C10iKDJ125200702

main48131-6B400iGRJ125¥10,800200301-200702

sub48131-60B80

main48131-6B430iGRJ120;KDJ125..4FC,5F¥13,200200209-200702

main48131-6B460iKDJ120¥13,600200209

48132SPRING, FRONT COIL, LH

main48131-60C00iGRJ125¥13,200200702

main48131-60C20iKDJ125200702

main48131-6B420iGRJ125¥13,300200301-200702

sub48131-60C00¥13,200

main48131-6B440iKDJ125..5FC,6F¥13,300200209-200702

main48131-6B470iKDJ120¥16,900200209

48331BBUMPER, FRONT SPRING, RH

main48304-60120iGRJ12#,KDJ12#¥1,650200209

48331CBUMPER, FRONT SPRING, LH

main48304-60120iGRJ12#,KDJ12#¥1,650200209

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69165iGRJ120,KDJ120¥9,300200209-200410

MARK 48510-60090

sub48510-69285¥9,300

main48510-69185iGRJ125,KDJ125¥9,300200209-200410

MARK 48510-60110

sub48510-69295¥9,300

main48510-69285iGRJ120,KDJ120¥9,300200410-200510

MARK 48510-60091

sub48510-69305¥9,300

main48510-69295iGRJ125,KDJ125¥9,300200410-200510

MARK 48510-60111

sub48510-69315¥9,300

main48510-69305iGRJ120,KDJ120¥9,300200510-200908

MARK 48510-60092

sub48510-69525¥9,300

main48510-69315iGRJ125,KDJ125¥9,300200510-200702

MARK 48510-60112

sub48510-69325¥8,500

main48510-69325iGRJ125,KDJ125¥8,500200702-200908

MARK 48510-60113

sub48510-69545¥8,500

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02159iGRJ12#,KDJ12#¥260200209

48510HBUSH(FOR FRONT SHOCK ABSORBER)

main90903-89012iGRJ12#,KDJ12#..4FC,5F¥870200209-200701

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01056iGRJ12#,KDJ12#¥230200209

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02161iGRJ12#,KDJ12#¥420200209

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69165iGRJ120,KDJ120¥9,300200209-200410

MARK 48510-60090

sub48510-69285¥9,300

main48510-69185iGRJ125,KDJ125¥9,300200209-200410

MARK 48510-60110

sub48510-69295¥9,300

main48510-69285iGRJ120,KDJ120¥9,300200410-200510

MARK 48510-60091

sub48510-69305¥9,300

main48510-69295iGRJ125,KDJ125¥9,300200410-200510

MARK 48510-60111

sub48510-69315¥9,300

main48510-69305iGRJ120,KDJ120¥9,300200510

MARK 48510-60092

sub48510-69525¥9,300

main48510-69315iGRJ125,KDJ125¥9,300200510-200702

MARK 48510-60112

sub48510-69325¥8,500

main48510-69325iGRJ125,KDJ125¥8,500200702

MARK 48510-60113

sub48510-69545¥8,500

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60030iGRJ12#,KDJ12#¥4,900200209

sub48609-60100¥3,320

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10212iGRJ12#,KDJ12#¥80200209

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90170-14026iGRJ12#,KDJ12#¥110200209

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60030iGRJ12#,KDJ12#¥4,900200209

sub48609-60100¥3,320

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90170-14026iGRJ12#,KDJ12#¥110200209

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94184-01241iGRJ12#,KDJ12#¥100200209

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60040iGRJ12#,KDJ12#¥4,640200209

48811BAR, STABILIZER, FRONT

main48811-60230iGRJ12#,KDJ12#¥16,500200209

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-60180iGRJ12#,KDJ12#¥900200209

sub48815-60350¥900

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60050iGRJ12#,KDJ12#¥4,640200209

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-60140iGRJ12#,KDJ12#¥1,600200209

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-60090iGRJ12#,KDJ12#¥1,600200209

9010514104

main90105-14104¥350

9017912144

main90179-12144¥110

91674E1028

main91674-E1028¥140

9462241400

main94622-41400¥160

26 parts on this diagram · 2 diagrams in section
