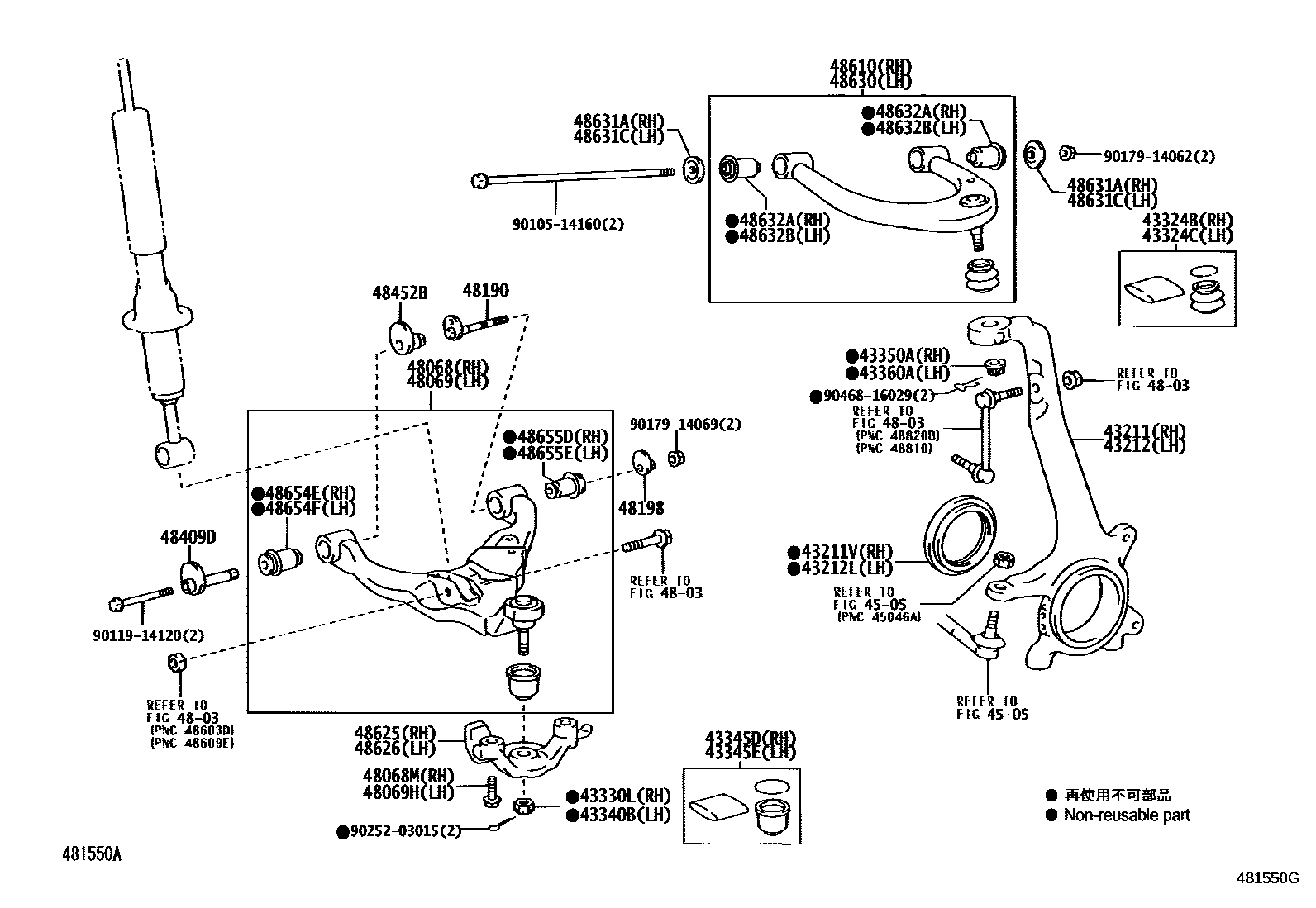

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
ISRAEL SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
sub43211-60200
GERMANY SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
sub43211-60200
sub43211-60200
sub43211-60210
43211VSEAL, OIL (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
ISRAEL SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
sub43212-60200
GERMANY SPEC&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)
sub43212-60200
sub43212-60200
sub43212-60210
43212LSEAL, OIL (FOR STEERING KNUCKLE LH)
43324BCOVER, FRONT UPPER BALL JOINT DUST, RH
sub43324-69085
43324CCOVER, FRONT UPPER BALL JOINT DUST, LH
sub43324-69085
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43345DCOVER, LOWER BALL JOINT DUST, RH
43345ECOVER, LOWER BALL JOINT DUST, LH
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
4505
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48190CAM ASSY, CAMBER ADJUST
48198CAM, CAMBER ADJUST, NO.2
48409DCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48452BPLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
sub48610-60070
48625ATTACHMENT, FRONT LOWER BALL JOINT, RH
48626ATTACHMENT, FRONT LOWER BALL JOINT, LH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
sub48630-60040
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
sub48632-60040
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
sub48632-60040
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
9010514160
main90105-14160
9011914120
main90119-14120
9017914062
main90179-14062
9017914069
main90179-14069
9025203015
main90252-03015
9046816029
main90468-16029
40 parts on this diagram · 1 diagram in section
