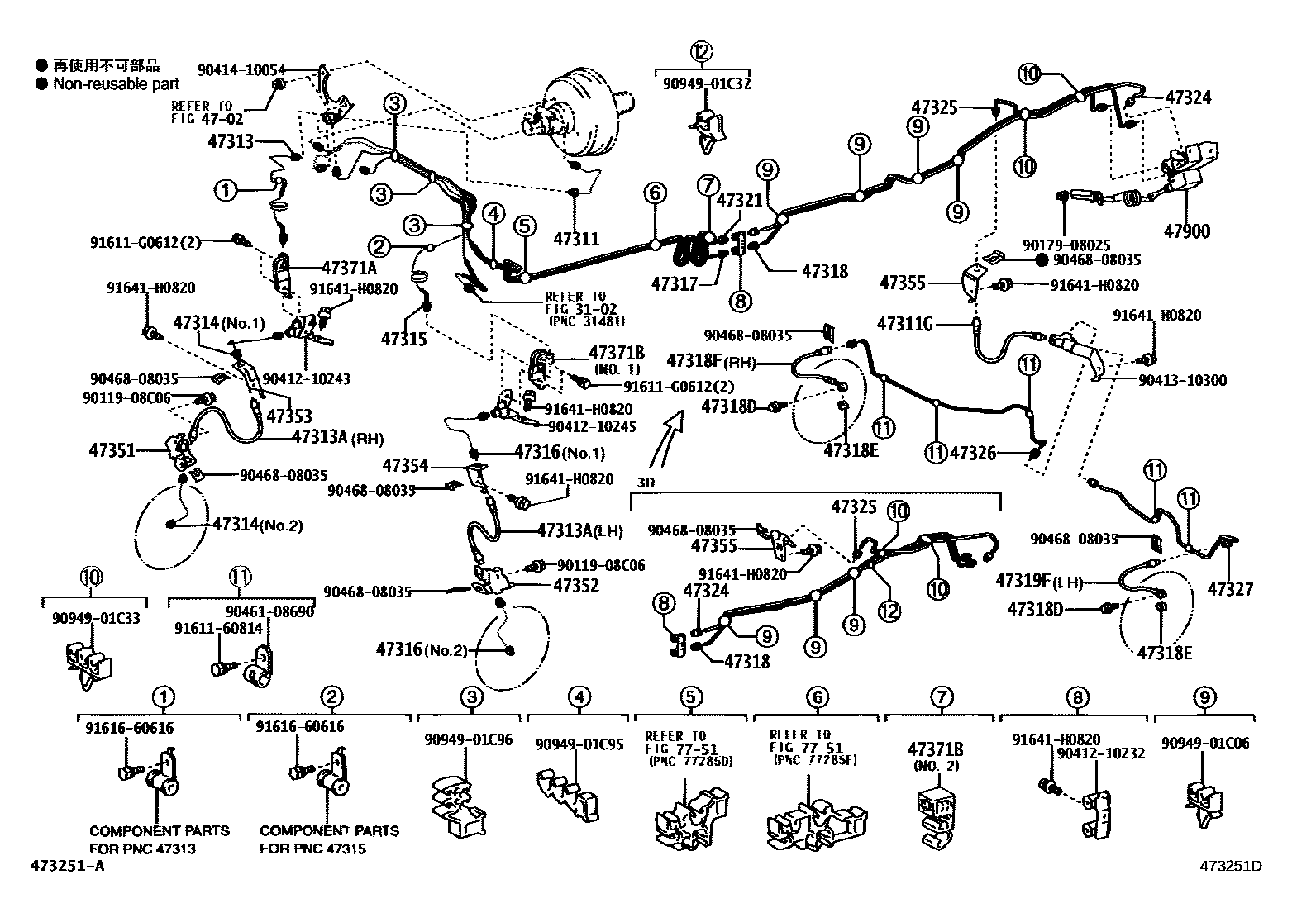

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS) 0005 1W(ABS) 0006 1W(ABS & VSC & ACTIVE TRC) 0007 1W(ABS & VSC & ACTIVE TRC)

3102

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-60610iGRJ12#,KDJ12#..LHD200209-200408

main47311-60620iGRJ120,KDJ12#..RHD200209-200408

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02D36iGRJ125,KDJ125200408

main90947-02D39iGRJ12#,KDJ12#200209-200408

main90947-02D40iGRJ120,KDJ120200408-200702

sub90947-02F19

main90947-02F19iGRJ120,KDJ120200702

47313TUBE, FRONT BRAKE, NO.3

main47313-3D161iGRJ120,KDJ12#..RHD200408

main47313-3D171iGRJ12#,KDJ12#..LHD200408

main47313-60361iGRJ120,KDJ12#..RHD200209-200408

main47313-60381iGRJ12#,KDJ12#..LHD200209-200408

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D35iGRJ12#,KDJ12#200209-200702

sub90947-02F20

main90947-02F20iGRJ12#,KDJ12#200702

47314TUBE, FRONT BRAKE, NO.4

main47314-35310iGRJ12#,KDJ12#200209

NO.1

main47314-35320iGRJ12#,KDJ12#200209

NO.2

47315TUBE, FRONT BRAKE, NO.5

main47315-35441iGRJ120,KDJ12#..RHD200408

main47315-35451iGRJ12#,KDJ12#..LHD200408

main47315-60481iGRJ120,KDJ12#..RHD200209-200408

main47315-60501iGRJ12#,KDJ12#..LHD200209-200408

47316TUBE, FRONT BRAKE, NO.6

main47316-35270iGRJ12#,KDJ12#200209

NO.1

main47316-35280iGRJ12#,KDJ12#200209

NO.2

47317TUBE, FRONT BRAKE, NO.7

main47317-60110iGRJ120,KDJ12#..RHD200209-200408

main47317-60120iGRJ12#,KDJ12#..LHD200209-200408

47318TUBE, FRONT BRAKE, NO.8

main47318-60140iGRJ120,KDJ120200209-200408

main47318-60150iGRJ125,KDJ125200209-200408

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iGRJ12#,KDJ12#200209-200908

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iGRJ12#,KDJ12#200209-200908

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02D31iGRJ12#,KDJ12#200209-200701

sub90947-02F23

main90947-02F23iGRJ12#,KDJ12#200702-200908

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02D32iGRJ12#,KDJ12#200209-200701

sub90947-02F24

main90947-02F24iGRJ12#,KDJ12#200702-200908

47321TUBE, REAR BRAKE, NO.1

main47321-35840iGRJ120,KDJ12#..RHD200408

main47321-35850iGRJ12#,KDJ12#..LHD200408

main47321-60290iGRJ120,KDJ12#..RHD200209-200408

main47321-60300iGRJ12#,KDJ12#..LHD200209-200408

47324TUBE, REAR BRAKE, NO.4

main47324-35310iGRJ120,KDJ120200408

main47324-60340iGRJ120,KDJ120200209-200408

main47324-60350iGRJ125,KDJ125200209-200408

main47324-60360iGRJ125,KDJ125200408

47325TUBE, REAR BRAKE, NO.5

main47325-35390iGRJ120,KDJ120200408

main47325-60300iGRJ120,KDJ120200209-200408

main47325-60310iGRJ125,KDJ125200209-200408

main47325-60320iGRJ125,KDJ125200408

47326TUBE, REAR BRAKE, NO.6

main47326-35130iGRJ12#,KDJ12#200408

main47326-60320iGRJ12#,KDJ12#200209-200408

47327TUBE, REAR BRAKE, NO.7

main47327-35100iGRJ12#,KDJ12#200408

main47327-60150iGRJ12#,KDJ12#200209-200408

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35350iGRJ12#,KDJ12#200209

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35390iGRJ12#,KDJ12#200209

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-35140iGRJ12#,KDJ12#200209

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-35120iGRJ12#,KDJ12#200209

47355BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT)

main47355-35130iGRJ120,KDJ120200408

main47355-60170iGRJ120,KDJ120200209-200408

main47355-60180iGRJ125,KDJ125200209-200408

main47355-60190iGRJ125,KDJ125200408

47371ACLAMP, BRAKE TUBE, NO.1

main47371-60150iGRJ12#,KDJ12#200209-200408

main47371-60170iGRJ12#,KDJ12#200408

47371BCLAMP, BRAKE TUBE, NO.6

main47371-60160iGRJ12#,KDJ12#200209

NO.1

main77299-32030iGRJ12#,KDJ12#200209

NO.2

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-60340iGRJ120,KDJ120200209-200408

ABS-WITH

main47900-60350iGRJ125,KDJ125200209-200408

ABS-WITH

7751

9011908C06

main90119-08C06

9017908025

main90179-08025

9041210232

main90412-10232

9041210243

main90412-10243

9041210245

main90412-10245

9041310300

main90413-10300

9041410054

main90414-10054

9046108690

main90461-08690

9046808035

main90468-08035

9094901C06

main90949-01C06

9094901C32

main90949-01C32

9094901C33

main90949-01C33

9094901C95

main90949-01C95

9094901C96

main90949-01C96

9161160814

main91611-60814

91611G0612

main91611-G0612

9161660616

main91616-60616

91641H0820

main91641-H0820

47 parts on this diagram · 7 diagrams in section
