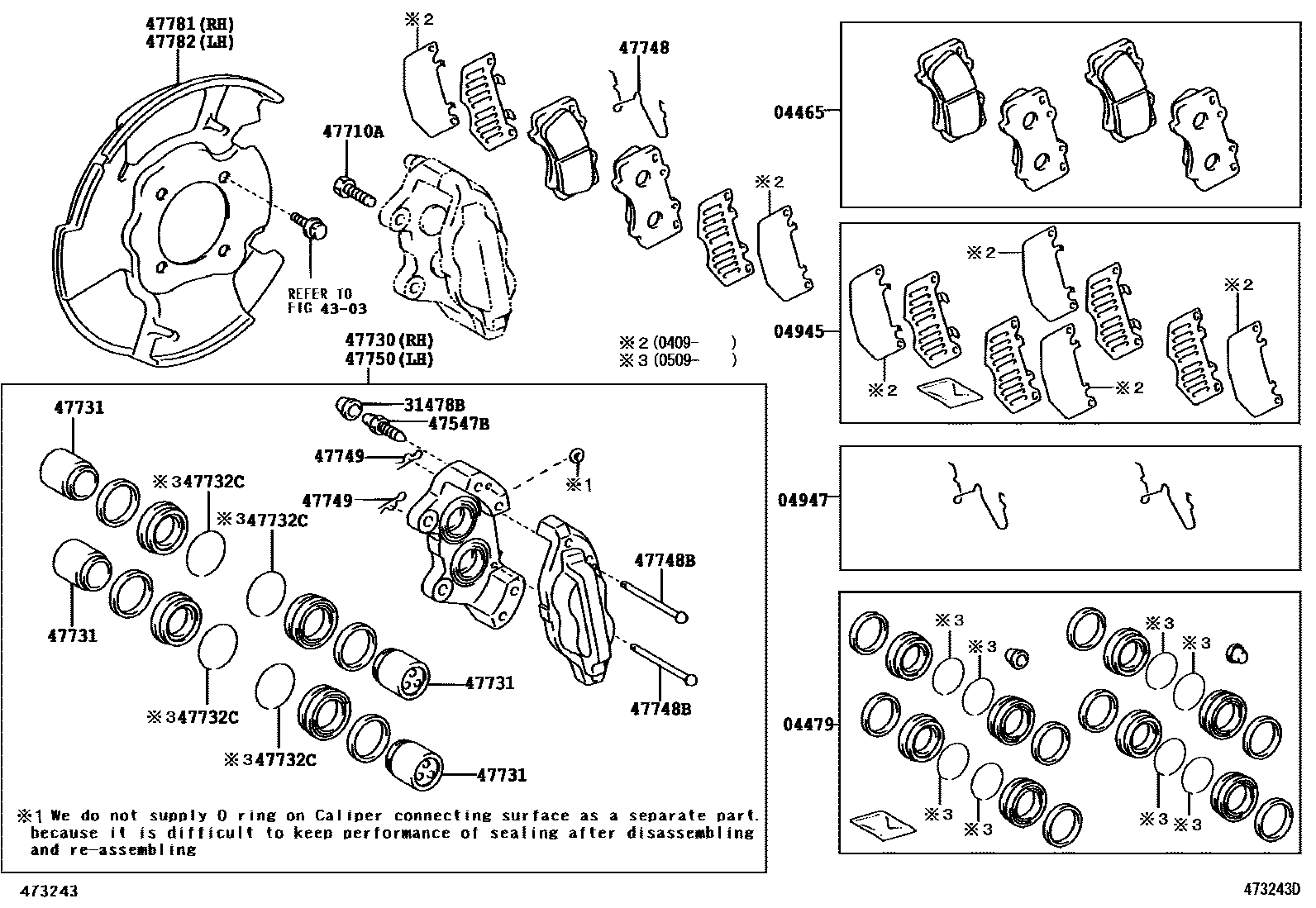

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-35290iGRJ12#,KDJ12#200209

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60050iGRJ12#,KDJ12#200509

main04479-60080iGRJ12#,KDJ12#200209-200509

sub04479-60081

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-35080iGRJ12#,KDJ12#200209-200409

sub04945-35120

main04945-35120iGRJ12#,KDJ12#200409

04947FITTING KIT, DISC BRAKE, FRONT

main04947-35050iGRJ12#,KDJ12#200209

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGRJ12#,KDJ12#200209

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iGRJ12#,KDJ12#200209

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iGRJ12#,KDJ12#200209-200908

*12-1.25PX35-27

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60130iGRJ12#,KDJ12#200209-200509

sub47730-60261

main47730-60261iGRJ12#,KDJ12#200509

47731PISTON, FRONT DISC BRAKE

main47731-35040iGRJ12#,KDJ12#200209

47732CRING, SET, NO.2(FOR FRONT DISC BRAKE)

main90522-50003iGRJ12#,KDJ12#200509

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-35010iGRJ12#,KDJ12#200209

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06158iGRJ12#,KDJ12#200209

L=97.2

47749CLIP, PIN HOLD

main47749-35040iGRJ12#,KDJ12#200209

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60130iGRJ12#,KDJ12#200209-200509

sub47750-60261

main47750-60261iGRJ12#,KDJ12#200509

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60120iGRJ12#,KDJ12#200209-200908

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60120iGRJ12#,KDJ12#200209-200908

17 parts on this diagram · 1 diagram in section
