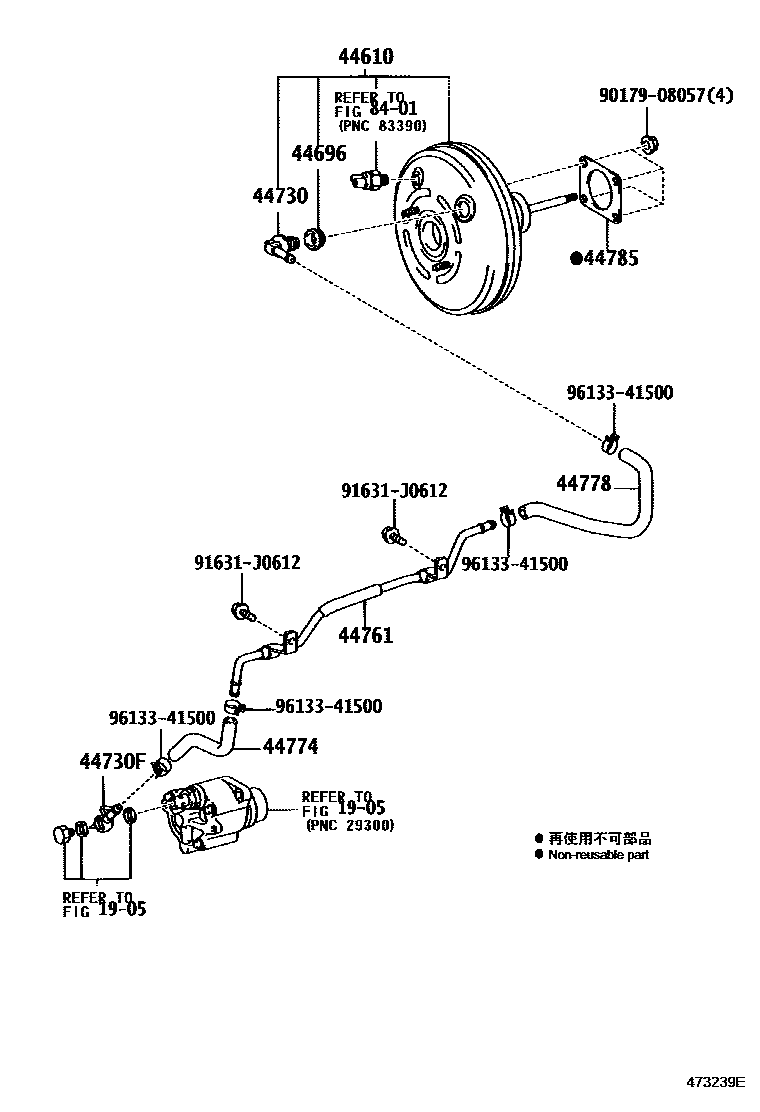

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1W(ABS & VSC & ACTIVE TRC)

1905

44610BOOSTER ASSY, BRAKE

main44610-6A180iGRJ12#..LHD200408-200603

sub44610-6A181

main44610-6A181iGRJ12#..LHD200603-200902

sub44610-6A182

main44610-6A182iGRJ12#..LHD200903

main44610-6A190iGRJ12#..LHD200301-200408

sub44610-6A191

main44610-6A200iKDJ12#..LHD200408-200603

sub44610-6A201

main44610-6A201iKDJ12#..LHD200603-200902

sub44610-6A202

main44610-6A202iKDJ12#..LHD200903

main44610-6A210iKDJ12#..LHD200209-200408

sub44610-6A211

main44610-6A230iGRJ120..RHD200408-200603

sub44610-6A231

main44610-6A231iGRJ120..RHD200603-200904

sub44610-6A232

main44610-6A232iGRJ120..RHD200905

main44610-6A240iGRJ120..RHD200301-200408

sub44610-6A241

main44610-6A250iKDJ12#..RHD200408-200603

sub44610-6A251

main44610-6A251iKDJ12#..RHD200603-200904

sub44610-6A252

main44610-6A252iKDJ12#..RHD200905

main44610-6A260iKDJ12#..RHD200209-200408

sub44610-6A261

44696GROMMET, CHECK VALVE

main90480-24439iGRJ12#,KDJ12#200209

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iKDJ12#200209

main44730-14050iGRJ120..RHD200301

main44730-20080iGRJ12#..LHD200301

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90405-09175iKDJ12#200209

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-60040iKDJ12#200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

44774HOSE, UNION TO CONNECTOR TUBE

main44774-60260iGRJ120..RHD200301

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main44774-60290iKDJ12#200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.2

main44774-60290iKDJ12#200209

NO.2

main95447-09180iKDJ12#..RHD200209

NO.1

main95447-09180iKDJ12#..RHD200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL),NO.1

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-60190iKDJ12#..LHD200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

main44778-60200iGRJ120,KDJ12#..RHD200209

ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

44785GASKET, BRAKE BOOSTER

main44785-60020iGRJ12#,KDJ12#200209

8401

9017908057

main90179-08057

91631J0612

main91631-J0612

9613341500

main96133-41500

13 parts on this diagram · 5 diagrams in section
