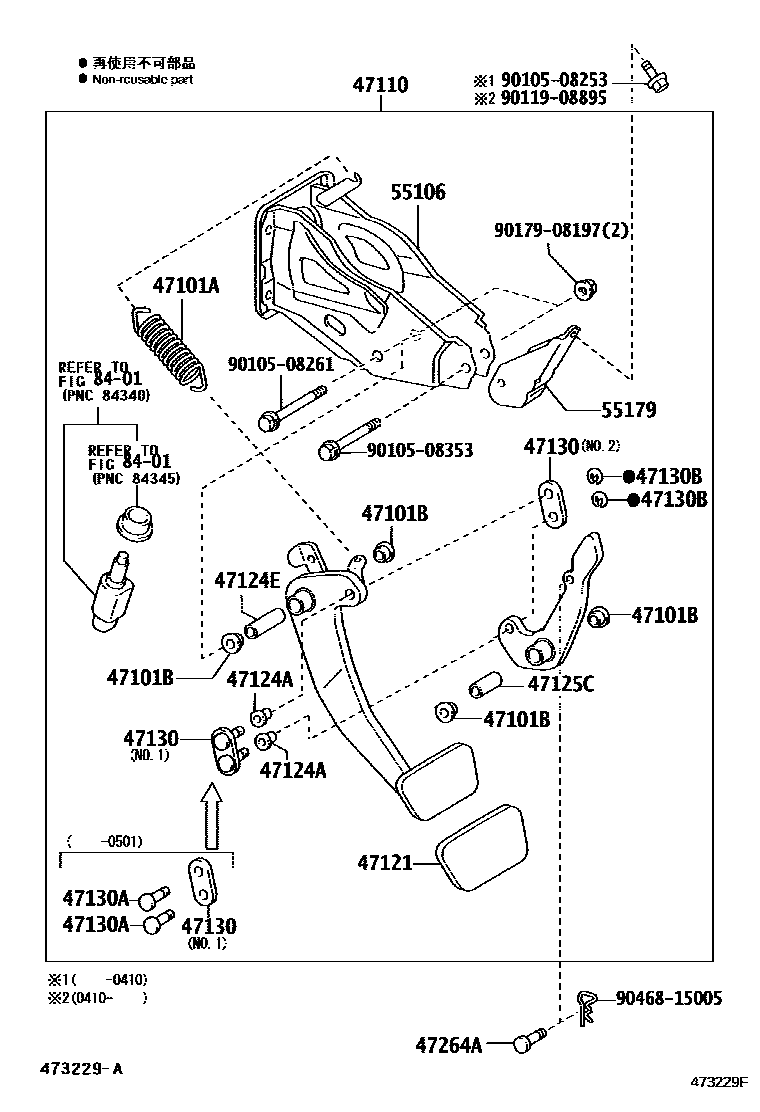

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20032iGRJ12#,KDJ12#200209

47101BBUSH(FOR BRAKE PEDAL)

main90386-14015iGRJ12#,KDJ12#200209

47110SUPPORT ASSY, BRAKE PEDAL

main47110-60090iGRJ120,KDJ12#..RHD..ATM200209

main47110-60110iKDJ12#..RHD..MTM200209

main47110-60130iGRJ12#,KDJ12#..LHD..ATM200209

main47110-60150iKDJ12#..LHD..MTM200209

47121PAD, BRAKE PEDAL

main31321-52010iKDJ12#..MTM200209

main47121-50020iGRJ12#,KDJ12#..ATM200209

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-34010iGRJ12#,KDJ12#200209

47124ECOLLAR, BRAKE PEDAL SHAFT, NO.2

main90387-08160iGRJ12#,KDJ12#200209

47125CCOLLAR(FOR BRAKE PEDAL BRACKET)

main47144-60020iGRJ12#,KDJ12#200209

47130LINK ASSY, BRAKE PEDAL

main4710A-35010iGRJ12#,KDJ12#200501

NO.1

main47130-60010iGRJ12#,KDJ12#200209-200501

NO.1 & NO.2

sub47130-60011

main47130-60011iGRJ12#,KDJ12#200501

NO.2

47130APIN, BRAKE PEDAL LINK

main90249-06172iGRJ12#,KDJ12#200209-200501

47130BRING E, BRAKE PEDAL LINK PIN

main96160-00400iGRJ12#,KDJ12#200209

47264APIN(FOR PUSH ROD)

main90240-06023iGRJ12#,KDJ12#200209

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-35160iGRJ12#,KDJ12#200209-200908

55179REINFORCEMENT, BRAKE PEDAL SUPPORT

main55179-35040iGRJ12#,KDJ12#200209-200908

8401

9010508253

main90105-08253

9010508261

main90105-08261

9010508353

main90105-08353

9011908895

main90119-08895

9017908197

main90179-08197

9046815005

main90468-15005

20 parts on this diagram · 1 diagram in section
