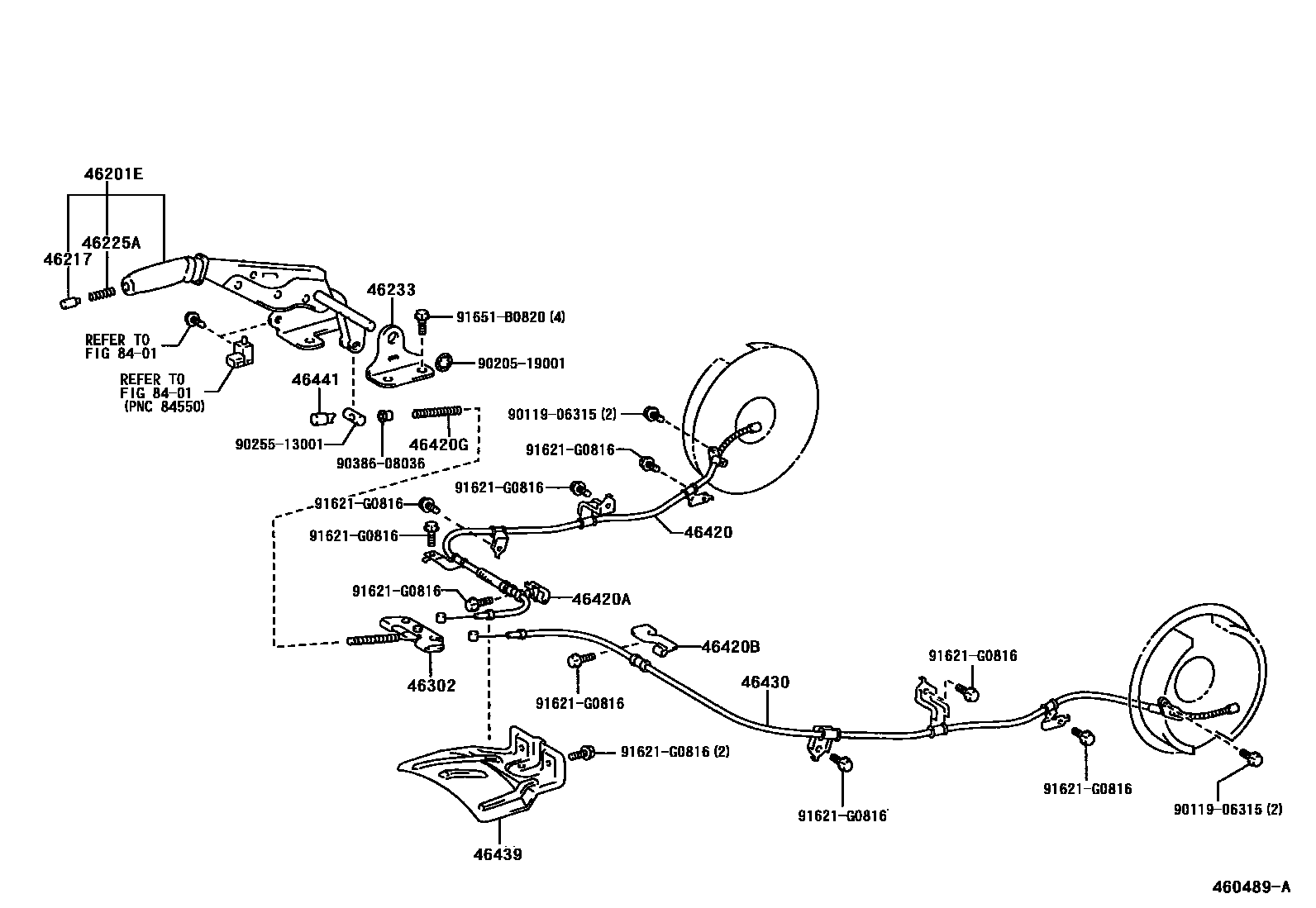

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-60030-C0iGRJ120,KDJ12#..RHD200209-200908

BLACK,TRIM0#,1#

main46201-60040-C0iGRJ12#,KDJ12#..LHD200209-200908

BLACK,TRIM0#,1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-17010-C0iGRJ12#,KDJ12#200209-200908

BLACK,TRIM0#,1#

sub46217-17010

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90504-12005iGRJ12#,KDJ12#200209

46233SUPPORT, PARKING BRAKE CENTER

main46233-60020iGRJ12#,KDJ12#200209-200907

sub46233-60040

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-60010iGRJ12#,KDJ12#200209

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-60070iGRJ120,KDJ120200209-200908

main46420-60080iGRJ125,KDJ125200209-200908

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-35020iGRJ120,KDJ120200209

main46421-60010iGRJ125,KDJ125200209

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-35020iGRJ120,KDJ120200209

main46431-60010iGRJ125,KDJ125200209

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-10239iGRJ12#,KDJ12#200209

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-60010iGRJ120,KDJ120200209-200908

main46430-60020iGRJ125,KDJ125200209-200908

sub46430-60021

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-35060iGRJ120,KDJ120200209

46441NUT, WIRE ADJUSTING, NO.1

main46441-60010iGRJ12#,KDJ12#200209

8401

9011906315

main90119-06315

9020519001

main90205-19001

9025513001

main90255-13001

9038608036

main90386-08036

91621G0816

main91621-G0816

91651B0820

main91651-B0820

19 parts on this diagram · 5 diagrams in section
