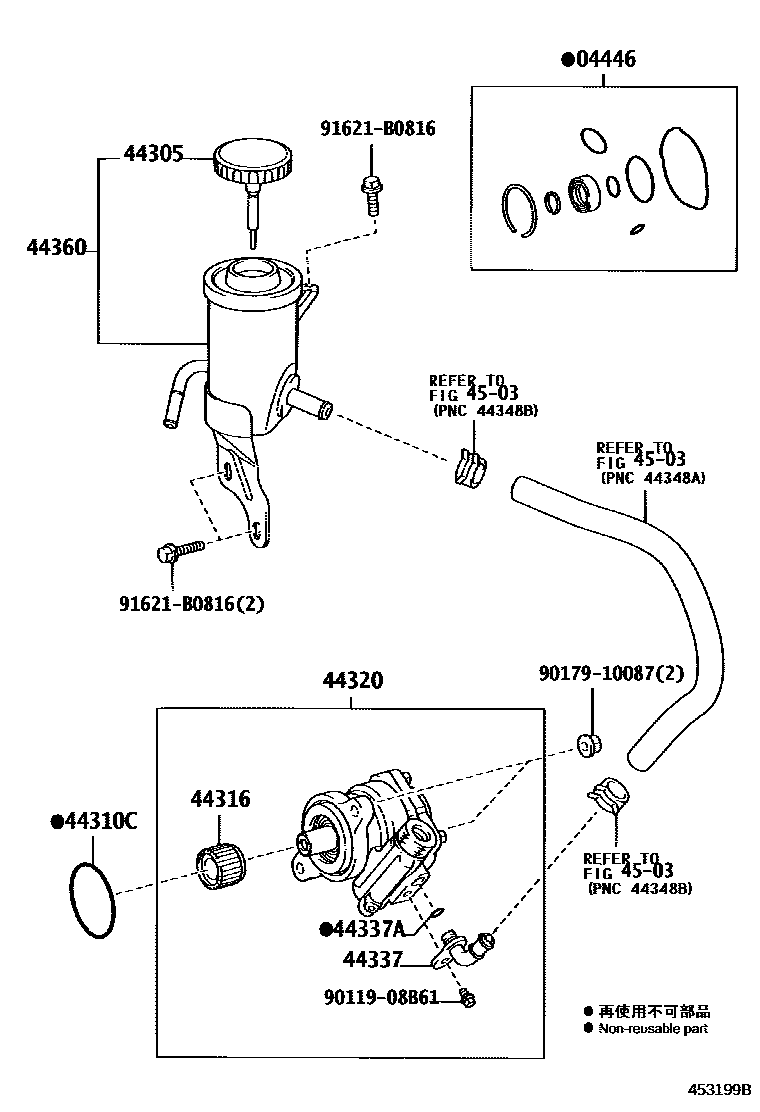

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iGRJ12#¥970200301

main04446-35070iKDJ12#¥1,280200209

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-24030iKDJ12#¥2,290200209-200709

sub44305-24050¥2,290

main44305-24050iKDJ12#¥2,290200710

main44305-28030iGRJ12#¥1,590200301-200801

sub44305-28060¥1,590

main44305-28060iGRJ12#¥1,590200802

sub44305-28061¥1,090

44310CRING, O(FOR VANE PUMP)

main90301-60002iKDJ12#¥530200209

44316GEAR, VANE PUMP

main44316-60030iKDJ12#¥670200209

44320PUMP ASSY, VANE

main44310-35660iGRJ12#¥94,600200301

main44310-35690iKDJ12#¥81,600200209

44337UNION, POWER STEERING SUCTION PORT

main44337-32110iGRJ12#¥1,430200301

main44337-42010iKDJ12#¥1,670200209

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iGRJ12#,KDJ12#¥140200209

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-35160iKDJ12#¥10,300200209-200608

main44360-35170iGRJ12#¥10,200200301

main44360-60270iKDJ12#200608

4503

9011908B61

main90119-08B61¥60

9017910087

main90179-10087¥110

91621B0816

main91621-B0816¥90

12 parts on this diagram · 2 diagrams in section
