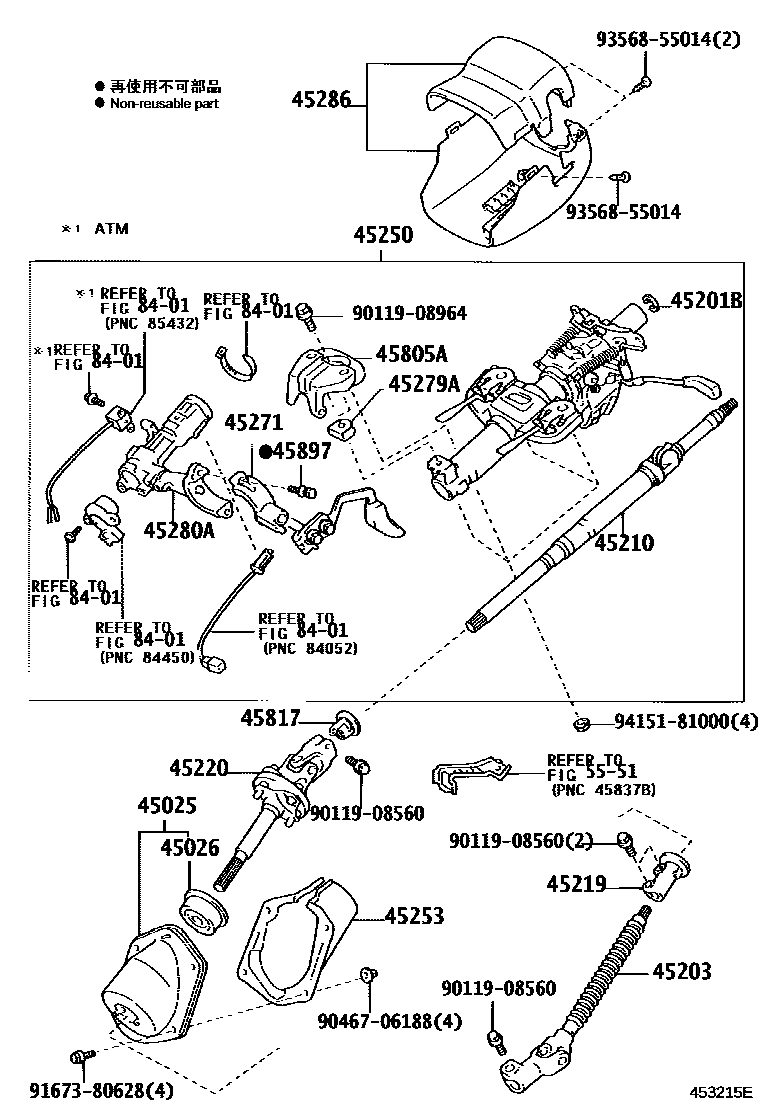

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45210SHAFT ASSY, STEERING MAIN
45219YOKE, STEERING SLIDING
45220SHAFT ASSY, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45253COVER, STEERING COLUMN HOLE
45271CLAMP, STEERING COLUMN, UPPER
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45286COVER, STEERING COLUMN
45805ASUPPORT SUB-ASSY, TILT STEERING
45817STOPPER, STEERING SHAFT THRUST
45897BOLT, STEERING LOCK SET
5551
8401
9011908560
main90119-08560
9011908964
main90119-08964
9046706188
main90467-06188
9167380628
main91673-80628
9356855014
main93568-55014
9415181000
main94151-81000
24 parts on this diagram · 2 diagrams in section
