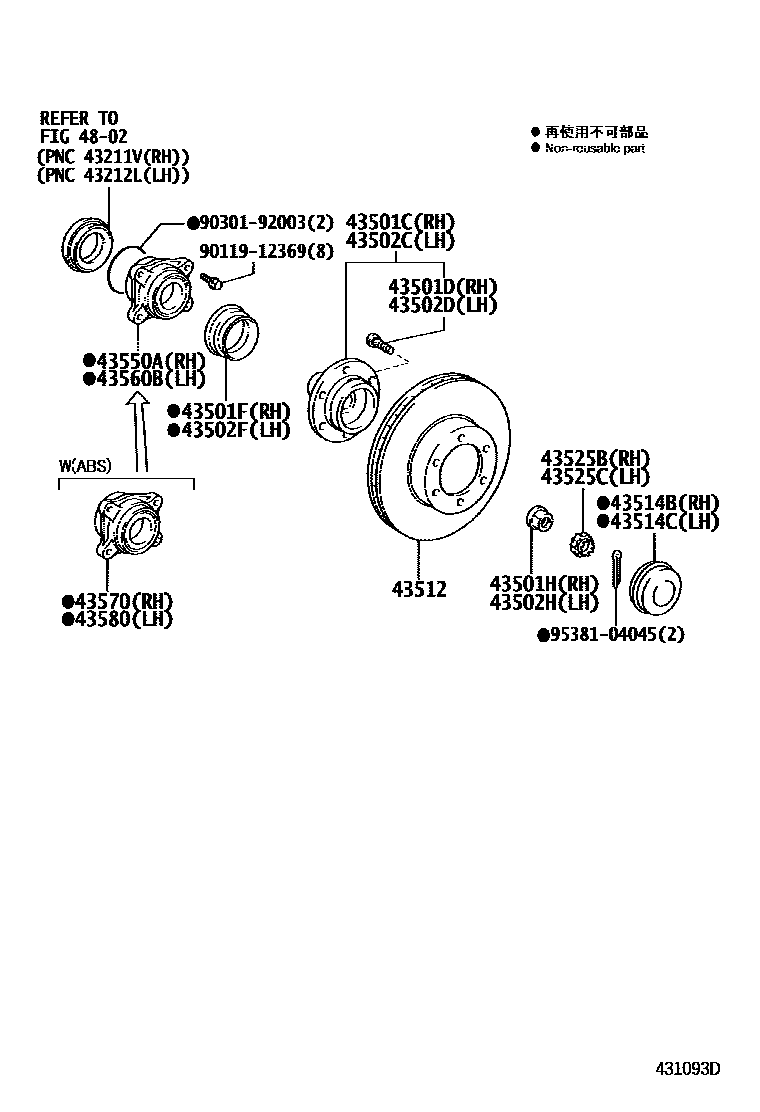

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-60180iGRJ12#,KDJ12#200209

sub43502-60200

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iGRJ12#,KDJ12#200209

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-96001iGRJ12#,KDJ12#200209

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28002iGRJ12#,KDJ12#200703

main90179-28007iGRJ12#,KDJ12#200209-200702

sub90178-28002

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-60180iGRJ12#,KDJ12#200209

sub43502-60200

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iGRJ12#,KDJ12#200209

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-96001iGRJ12#,KDJ12#200209

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28002iGRJ12#,KDJ12#200703

main90179-28007iGRJ12#,KDJ12#200209-200702

sub90178-28002

43512DISC, FRONT

main43512-60150iGRJ12#,KDJ12#200209-200506

sub43512-60151

main43512-60151iGRJ12#,KDJ12#200506-200908

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-28010iGRJ12#,KDJ12#200209

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-28010iGRJ12#,KDJ12#200209

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-35010iGRJ12#,KDJ12#200209

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-35010iGRJ12#,KDJ12#200209

43550ABEARING (FOR FRONT AXLE HUB RH)

main43560-60010iGRJ12#,KDJ12#200209-200408

43560BBEARING (FOR FRONT AXLE HUB LH)

main43560-60010iGRJ12#,KDJ12#200209-200408

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-60010iGRJ12#,KDJ12#200408

sub43570-60011

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-60010iGRJ12#,KDJ12#200408

sub43570-60011

4802

9011912369

main90119-12369

9030192003

main90301-92003

9538104045

main95381-04045

21 parts on this diagram · 1 diagram in section
