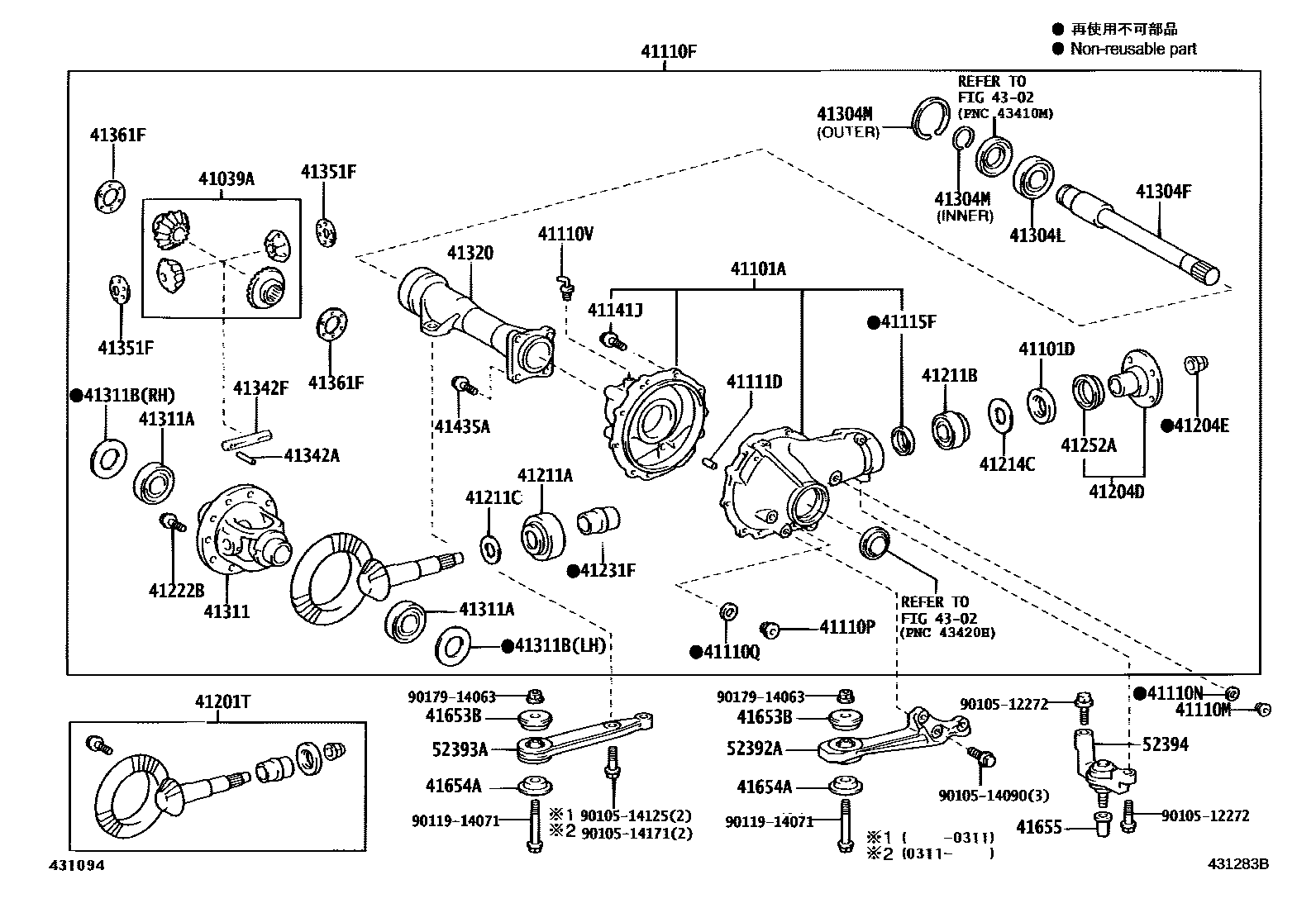

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*10-1.25PX24.5-18
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
OD=52,T=1.70
OD=52,T=1.73
OD=52,T=1.76
OD=52,T=1.79
OD=52,T=1.82
OD=52,T=1.85
OD=52,T=1.88
OD=52,T=1.91
OD=52,T=1.94
OD=52,T=1.97
OD=52,T=2.00
OD=52,T=2.03
OD=52,T=2.06
OD=52,T=2.09
OD=52,T=2.12
OD=52,T=2.15
OD=52,T=2.18
OD=52,T=2.21
OD=52,T=2.24
OD=52,T=2.27
OD=52,T=2.30
OD=52,T=2.33
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
INNER
OUTER
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=1.60,LH
T=1.63,LH
T=1.66,LH
T=1.69,LH
T=1.72,LH
T=1.75,LH
T=1.78,LH
T=1.81,LH
T=1.84,LH
T=1.87,LH
T=1.90,LH
T=1.93,LH
T=1.96,LH
T=1.99,LH
T=2.02,LH
T=2.05,LH
T=2.08,LH
T=2.11,LH
T=2.14,LH
T=2.17,LH
T=2.20,LH
T=2.23,LH
T=2.26,LH
T=2.29,LH
T=2.32,LH
T=2.35,LH
T=2.38,LH
T=2.41,LH
T=2.44,LH
T=2.47,LH
T=1.60,RH
T=1.63,RH
T=1.66,RH
T=1.69,RH
T=1.72,RH
T=1.75,RH
T=1.78,RH
T=1.81,RH
T=1.84,RH
T=1.87,RH
T=1.90,RH
T=1.93,RH
T=1.96,RH
T=1.99,RH
T=2.02,RH
T=2.05,RH
T=2.08,RH
T=2.11,RH
T=2.14,RH
T=2.17,RH
T=2.20,RH
T=2.23,RH
T=2.26,RH
T=2.32,RH
T=2.35,RH
T=2.38,RH
T=2.41,RH
T=2.44,RH
T=2.47,RH
T=1.58,LH
T=1.62,LH
T=1.64,LH
T=1.68,LH
T=1.70,LH
T=1.74,LH
T=1.76,LH
T=1.80,LH
T=1.82,LH
T=1.86,LH
T=1.88,LH
T=1.92,LH
T=1.94,LH
T=1.98,LH
T=2.00,LH
T=2.04,LH
T=2.06,LH
T=2.10,LH
T=2.12,LH
T=2.16,LH
T=1.58,RH
T=1.62,RH
T=1.64,RH
T=1.68,RH
T=1.70,RH
T=1.74,RH
T=1.76,RH
T=1.80,RH
T=1.82,RH
T=1.86,RH
T=1.88,RH
T=1.92,RH
T=1.94,RH
T=1.98,RH
T=2.00,RH
T=2.04,RH
T=2.06,RH
T=2.10,RH
T=2.12,RH
T=2.16,RH
T=1.44,RH
T=1.46,RH
T=1.48,RH
T=1.50,RH
T=1.52,RH
T=1.54,RH
T=1.56,RH
T=2.18,LH
T=2.20,LH
T=2.22,LH
T=2.24,LH
T=2.26,LH
T=2.28,LH
T=2.30,LH
41320TUBE ASSY, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
*12-1.25PX24-16.5
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1
4302
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
52393ASUPPORT, FRONT DIFFERENTIAL, NO.2
52394SUPPORT, FRONT DIFFERENTIAL, NO.3
9010512272
9010514090
9010514125
9010514171
9011914071
9017914063
47 parts on this diagram · 2 diagrams in section
