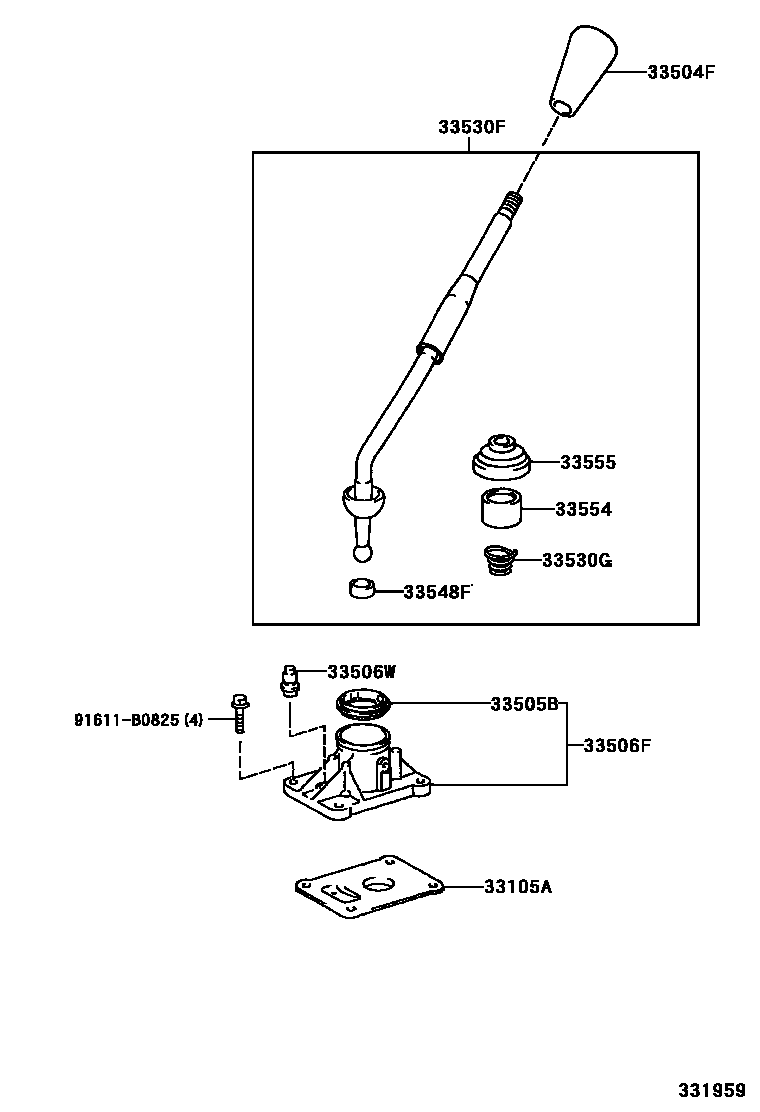

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33144-35030iKDJ12#..5F¥230200209-200408

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20100-C0iKDJ12#..5F200209-200408

BLACK,TRIM0#,1#

sub33504-24010¥1,710

sub33504-20100¥2,980

main33504-35080-C0iKDJ12#..6F200408-200908

BLACK,TRIM0#,1#

sub33504-35080¥5,400

main33504-60140-C0iGRJ12#,KDJ12#..ATM200209-200908

BLACK,TRIM0#,1#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35030iKDJ12#..5F¥1,380200209-200408

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-60060iKDJ12#..5F¥4,570200209-200408

sub33506-60061¥3,460

main33506-60120iKDJ12#..6F¥3,680200408

33506WPLUG, BREATHER (FOR SHIFT LEVER RETAINER)

main90930-03075iKDJ12#..5F¥430200209-200408

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-60530iKDJ12#..LHD..5F¥10,900200209-200408

sub33530-60531

main33530-60540iKDJ12#..RHD..5F¥10,900200209-200408

sub33530-60541

main33530-60560iKDJ12#..RHD..6F¥10,700200408-200607

sub33530-60561

main33530-60561iKDJ12#..RHD..6F200608-200610

sub33530-60562

main33530-60562iKDJ12#..RHD..6F200611

sub33530-60563

main33530-60570iKDJ12#..LHD..6F¥10,700200408-200607

sub33530-60571

main33530-60571iKDJ12#..LHD..6F200608-200610

sub33530-60572¥10,700

main33530-60572iKDJ12#..LHD..6F¥10,700200611

sub33530-60573

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26008iKDJ12#..5F¥190200209-200408

sub90502-26009¥120

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iKDJ12#..5F¥270200209-200408

main33548-60040iKDJ12#..6F¥340200408-200610

33554CAP, SHIFT LEVER

main33554-60120iKDJ12#..5F200209-200408

33555BOOT, SHIFT LEVER

main33555-60030iKDJ12#..5F¥580200209-200408

91611B0825

main91611-B0825¥160

11 parts on this diagram · 5 diagrams in section
