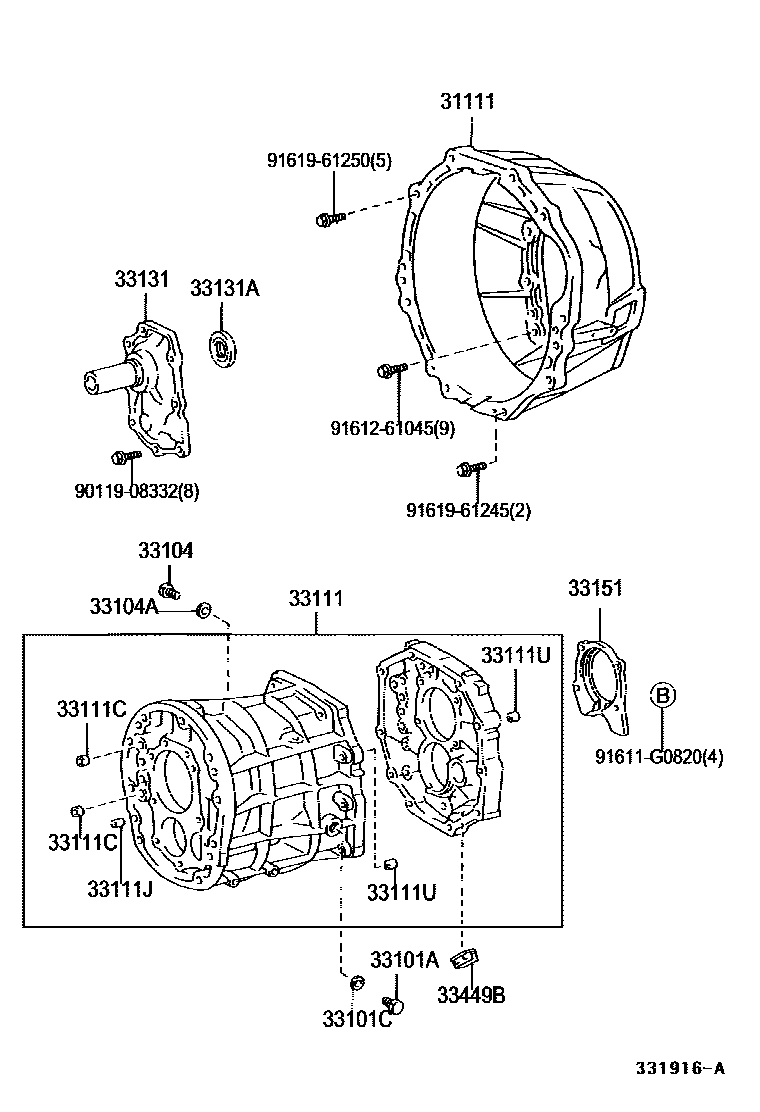

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1R150 0002 1RA61

31111HOUSING, CLUTCH

main31111-60360iKDJ12#..5F200209-200408

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33106-35050iKDJ12#..6F200408

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKDJ12#..MTM200209

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKDJ12#..MTM200209

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKDJ12#..5F200209-200408

main90341-18057iKDJ12#..6F200408

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKDJ12#..MTM200209

33111CASE, MANUAL TRANSMISSION

main33101-60040iKDJ12#..5F200209-200408

sub33101-60041

main33101-60140iKDJ12#..6F200408

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iKDJ12#..5F200209-200408

OD=14

main96411-41000iKDJ12#..6F200408

OD=10

main96411-41800iKDJ12#..5F200209-200408

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10232iKDJ12#..6F200408

L=15,OD=8

main90250-12002iKDJ12#..5F200209-200408

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11021iKDJ12#..6F200408

L=8,OD=11

main90253-15001iKDJ12#..5F200209-200408

L=14,OD=15

33131RETAINER, BEARING, FRONT(MTM)

main33131-35031iKDJ12#..5F200209-200408

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iKDJ12#..5F200209-200408

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iKDJ12#..5F200209-200408

33449BMAGNET, TRANSMISSION

main33449-35030iKDJ12#..5F200209-200408

9011908332

main90119-08332

91611G0820

main91611-G0820

9161261045

main91612-61045

9161961245

main91619-61245

9161961250

main91619-61250

19 parts on this diagram · 2 diagrams in section
