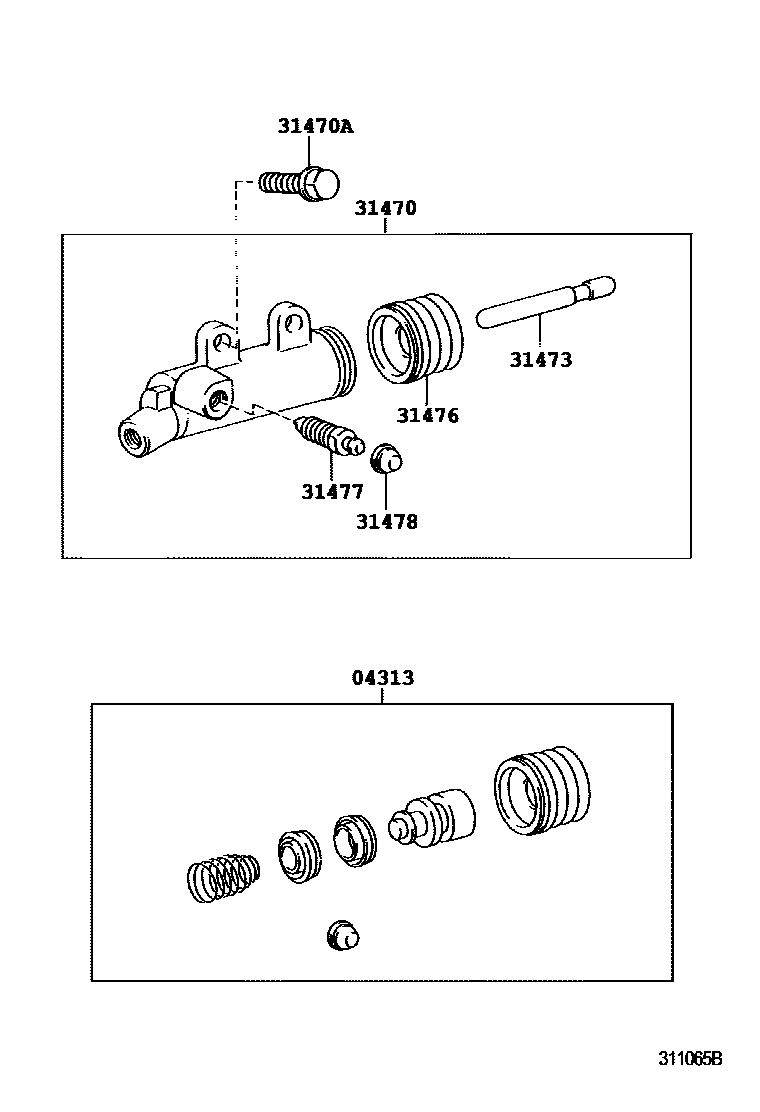

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-53040iKDJ12#..6F200608

sub04313-53041

main04313-60170iKDJ12#..5F200209-200408

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60300iKDJ12#..5F200209-200408

main31470-60340iKDJ12#..6F200408

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iKDJ12#..MTM200209

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iKDJ12#..6F200408

main31473-20031iKDJ12#..5F200209-200408

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKDJ12#..MTM200209

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKDJ12#..MTM200209

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKDJ12#..MTM200209

7 parts on this diagram · 2 diagrams in section
