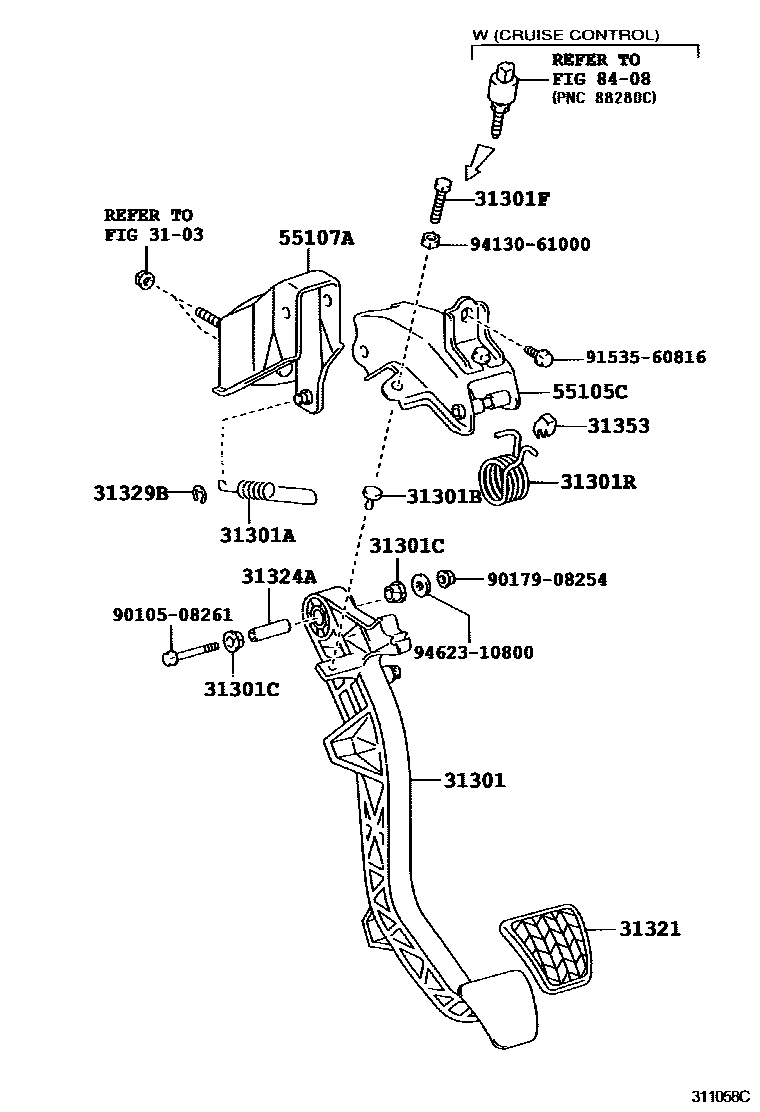

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

3103

31301PEDAL SUB-ASSY, CLUTCH

main31311-60220iKDJ12#..RHD..MTM200209

main31311-60230iKDJ12#..LHD..MTM200209

31301ASPRING(FOR CLUTCH PEDAL)

main90507-23024iKDJ12#..RHD..5F200301-200408

main90507-23025iKDJ12#..LHD..5F200301-200408

main90507-26008iKDJ12#..RHD..5F200209-200301

main90905-07006iKDJ12#..LHD..5F200209-200301

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKDJ12#..MTM200209

31301CBUSH(FOR CLUTCH PEDAL)

main90386-14015iKDJ12#..MTM200209

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKDJ12#..MTM200209

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03124iKDJ12#..LHD..5F200209-200301

sub90949-03132

main90949-03125iKDJ12#..LHD..6F200408

main90949-03126iKDJ12#..RHD..5F200209-200301

main90949-03127iKDJ12#..RHD..6F200408

main90949-03131iKDJ12#..RHD..5F200301-200408

main90949-03132iKDJ12#..LHD..5F200301-200408

31321PAD, CLUTCH PEDAL

main31321-52010iKDJ12#..MTM200209

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-08160iKDJ12#..MTM200209

31329BRING, E(FOR CLUTCH PEDAL PAWL)

main96160-00600iKDJ12#..5F200209-200408

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iKDJ12#..MTM200209

55105CSUPPORT, PEDAL BRACKET CLUTCH WIRE

main55105-60010iKDJ12#..LHD..MTM200209-200908

main55105-60020iKDJ12#..RHD..MTM200209-200908

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-60190iKDJ12#..LHD..MTM200209-200908

main55107-60200iKDJ12#..RHD..MTM200209-200908

8408

9010508261

main90105-08261

9017908254

main90179-08254

9153560816

main91535-60816

9413061000

main94130-61000

9462310800

main94623-10800

19 parts on this diagram · 6 diagrams in section
