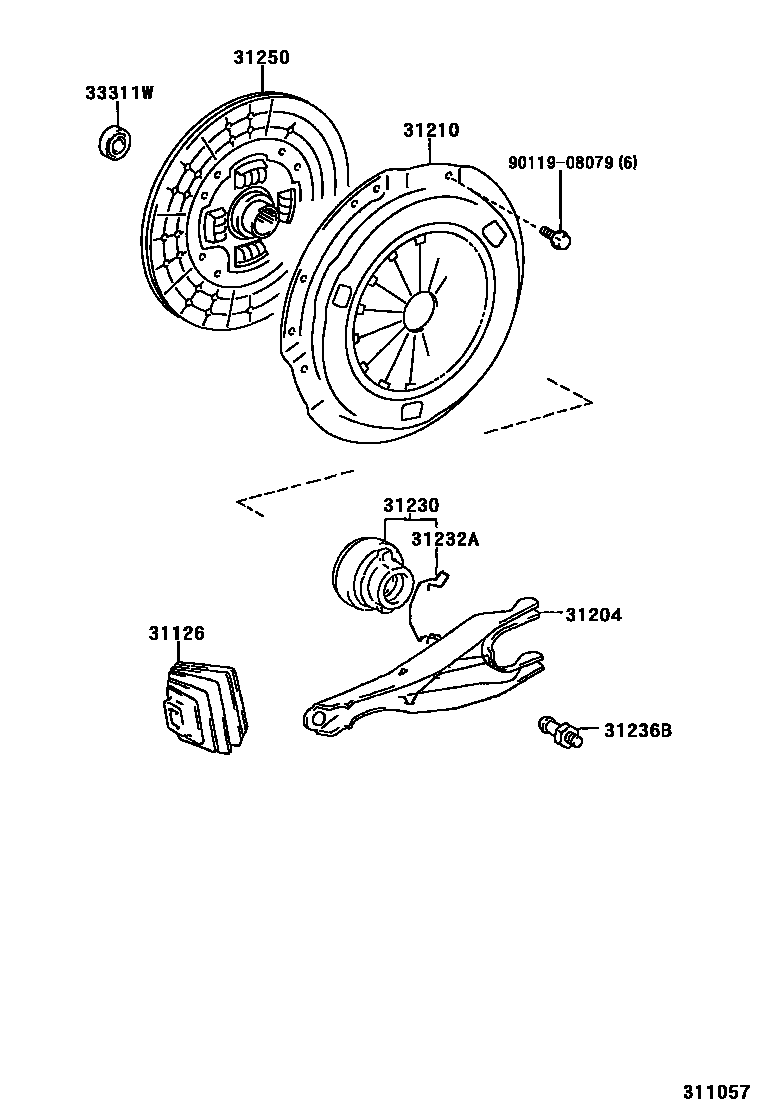

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-60081iKDJ12#..5F200209-200408

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-60090iKDJ12#..5F200209-200408

main31204-60120iKDJ12#..6F200408-200701

sub31204-60140

main31204-60140iKDJ12#..6F200701

31210COVER ASSY, CLUTCH

main31210-60220iKDJ12#..5F200209-200406

sub31210-60221

main31210-60221iKDJ12#..5F200407-200408

sub31210-60270

main31210-60250iKDJ12#..6F200408-200608

sub31210-60251

main31210-60251iKDJ12#..6F200609

31230BEARING ASSY, CLUTCH RELEASE

main31230-60220iKDJ12#..5F200209-200408

sub31230-60221

main31230-60250iKDJ12#..6F200408

31232ACLIP, RELEASE BEARING HUB

main31232-60030iKDJ12#..5F200209-200408

31236BSUPPORT, RELEASE FORK

main31236-14030iKDJ12#..6F200408

main31236-60060iKDJ12#..5F200209-200408

31250DISC ASSY, CLUTCH

main31250-60350iKDJ12#..5F200209-200408

sub31250-60351

main31250-60380iKDJ12#..6F200408-200901

sub31250-60381

main31250-60381iKDJ12#..6F200902-200905

sub31250-60382

main31250-60382iKDJ12#..6F200906

sub31250-60383

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKDJ12#..5F200209-200908

sub90363-12024

9011908079

main90119-08079

9 parts on this diagram · 2 diagrams in section
